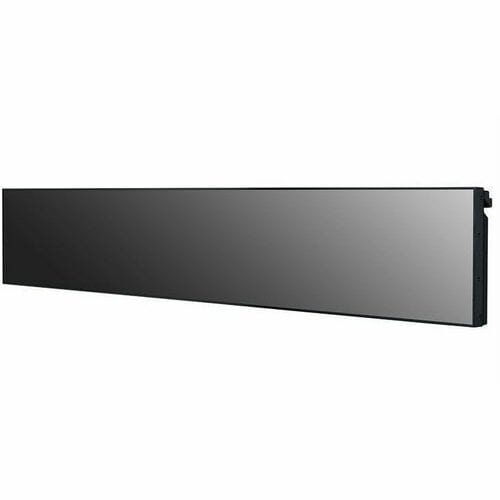

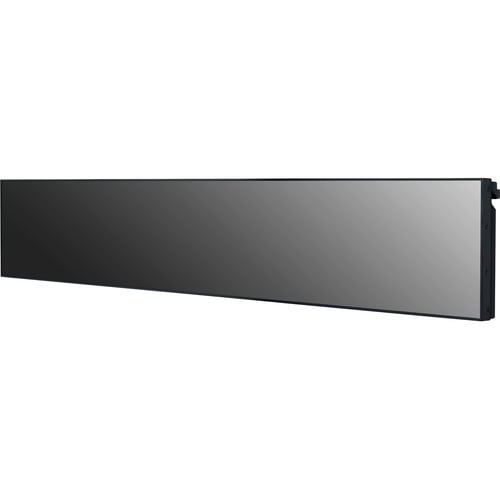

Ultra Stretch Signage, 58:9 Space-Fitting Wide Screen

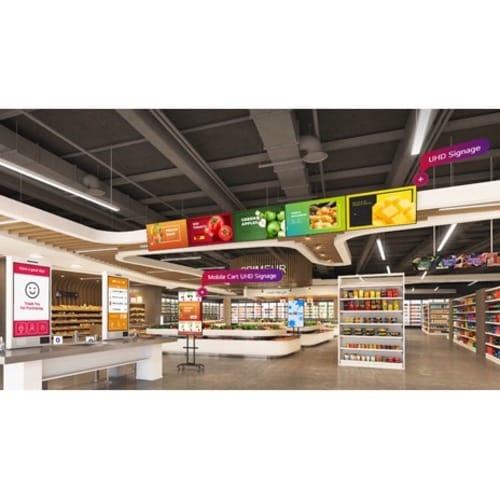

The 86BH5F is the most suitable display for delivering new forms of advertising and multiplexed information in a 58:9 widescreen format. It can bring unused & leftover space to life by being installed without restriction.

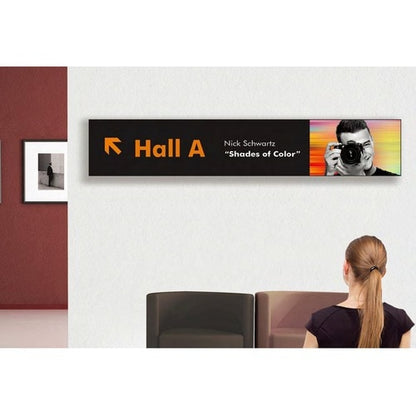

58:9 Extended Wide Format
It is a unique wide screen with 58:9 bar type which provides much more flexibility in playing content than the conventional display of 16:9 ratio.
Ultra HD Resolution (3,840 x 600)
Ultra HD resolution delivers an immersive viewing experience with vivid colors and clear images.
Multi Screen Mode with 4PBP
The Picture-by-Picture (PBP) feature allows you to show multi content in one single display by up-to four parts. It is very useful and convenient to deliver various advertisements or pieces of information at the same time without calibration.

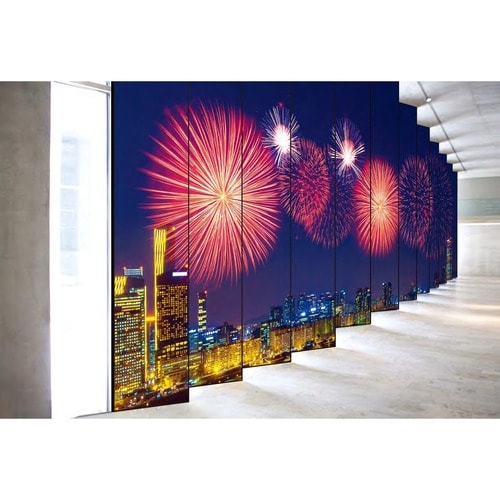

Tiled Scene with Immersive View
The 86BH5F can show a tiled scene by up to 15 × 15 configuration. This will be the best choice if you want to use a large screen, or provide visual impact to your customers in a different way.

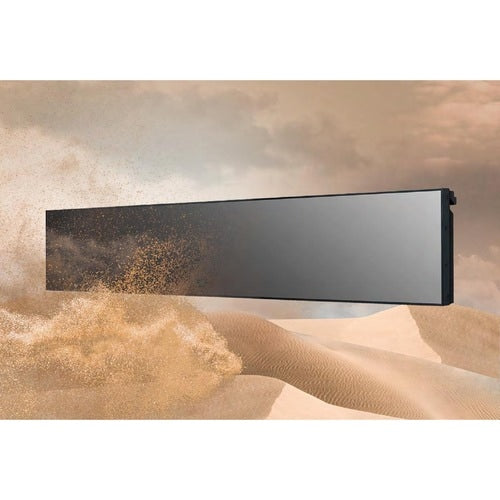

IP5x Certified Design
The IP5x Dust-Proof Certification ensures that the product is completely protected from dust, eliminating the risk of performance degradation.

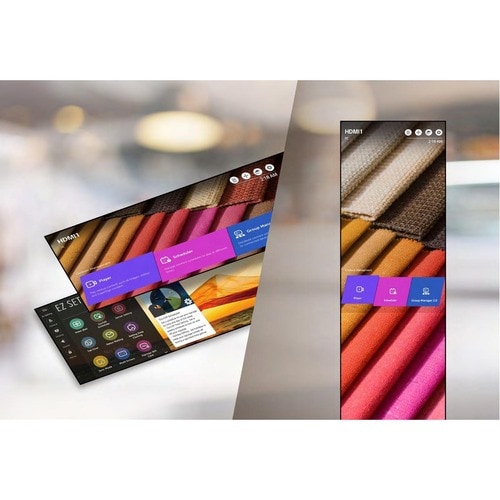

User-Friendly UX

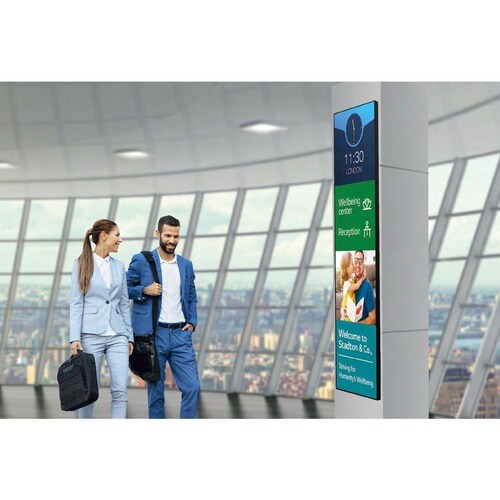

The 86BH5F is equipped with a user-friendly UX to simplify approach flows, groups similar functions together, and adopts an intuitive GUI for ease of use. When using the display in portrait mode, OSD can also be adjusted accordingly.
LAN Daisy Chain Management
By using this daisy-chained network feature, you can execute commands such as controlling, monitoring and even updating firmware.
Real-Time Monitoring with ConnectedCare
Easier and faster maintenance are available with our optional cloud service solution ConnectedCare. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of clients' businesses.
- Digital Signage Display - Ideal for rack, passageway, booth or display counter
- With its 86" (2184.40 mm) screen size, 3840 x 600 resolution and a brightness of #atr1133#, this digital signage system is ideal for commercial purposes
- LED backlighting offers a fine uniformity to display effective pictures at a low cost
Spécifications techniques
| Network & Communication | |
| Ethernet | Yes |
| Video | |
| Brightness | 500 cd/m² |
| Power Description | |
| Input Voltage | 120 V AC |
| 230 V AC | |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Energy Efficiency Compliance | Energy-related Products Directive (ErP) |
| Display & Graphics | |
| Display Resolution | 3840 x 600 |
| Screen Size | 86" (2184.40 mm) |
| Number of Screens | 1 |
| Display Screen Type | IPS |
| Backlight Technology | LED |
| Technical Information | |
| Panel Technology | In-plane Switching (IPS) Technology |
| Bezel Width (Bottom) | 0.23" (5.90 mm) |
| Bezel Width (Top) | 0.23" (5.90 mm) |
| Bezel Width (Left) | 0.17" (4.40 mm) |
| Bezel Width (Right) | 0.17" (4.40 mm) |
| Physical Characteristics | |
| Weight (Approximate) | 45.19 lb (20500 g) |
| Height | 13.72" (348.50 mm) |
| Width | 84.97" (2158.30 mm) |

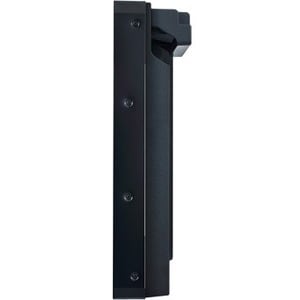

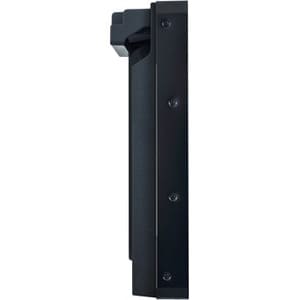

| Depth | 3.22" (81.70 mm) |
| VESA Mount Standard | 600 x 200 |
| Product Color | Black |

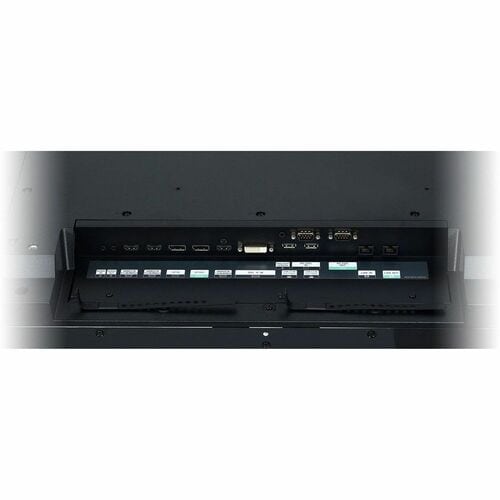

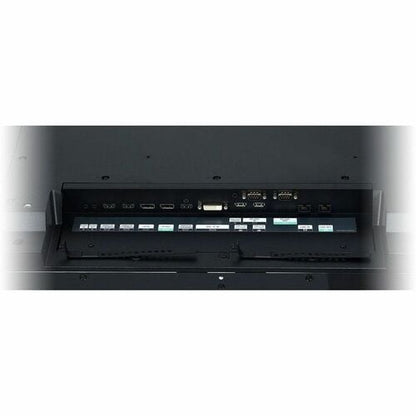

| Interfaces/Ports | |
| USB | Yes |
| HDMI | Yes |
| DVI | Yes |
| DisplayPort | Yes |
| Number of HDMI Inputs | 3 |
| Number of USB 2.0 Ports | 2 |
| Serial | Yes |
| General Information | |
| Product Type | Digital Signage Display |
| Manufacturer Part Number | 86BH5F-M |
| Manufacturer Website Address | http://www.lg.com |
| Manufacturer | LG Electronics |
| Product Model | 86BH5F-M |
| Product Name | 86BH5F-M Ultra Stretch Signage |
| Product Line | Ultra Stretch |
| Product Series | BH5F-M |
| Brand Name | LG |
