À propos du produit

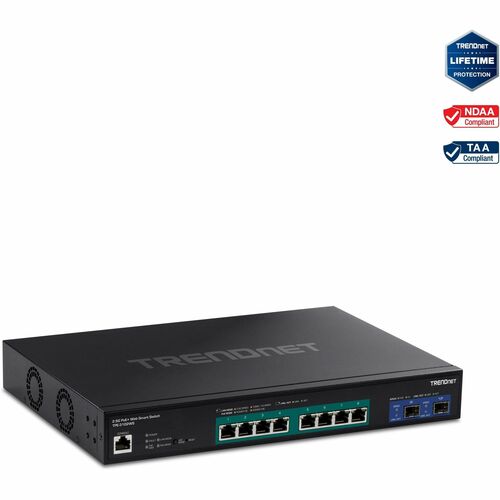

TRENDnet's Multi-Gigabit Web Smart PoE+ Switch series offers advanced L2+ features with enhanced traffic management controls to meet the evolving demands of SMB networks. Each of these rack-mountable IPv6-ready managed switches come with an intuitive web-based interface. Advanced managed switch features include LACP to increase bandwidth between switches by grouping ports TPE-3102WS together, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring, making these 2.5G managed PoE+ switches with 10G SFP+ slots powerful solutions for any SMB network. Improve voice performance by isolating and prioritizing VoIP traffic from normal data traffic with an easy-to-use voice VLAN feature.
These multi-gigabit managed PoE+ switches come equipped with 2.5GBASE-T RJ-45 ports that provide higher gigabit speeds capable of up to 2.5Gbps over your existing Cat5e or better cabling. Each multi-gig managed PoE+ switch also offers two dedicated 10G SFP+ slots for high-speed network connections, providing a cost-effective solution in adding 10G link capability to an SMB network. The switch design lowers energy consumption and eliminates distracting operating noise. TRENDnet's reliable 2.5G managed PoE+ switches with 10G SFP+ slots offer cost-effective solutions to increase your network's throughput.

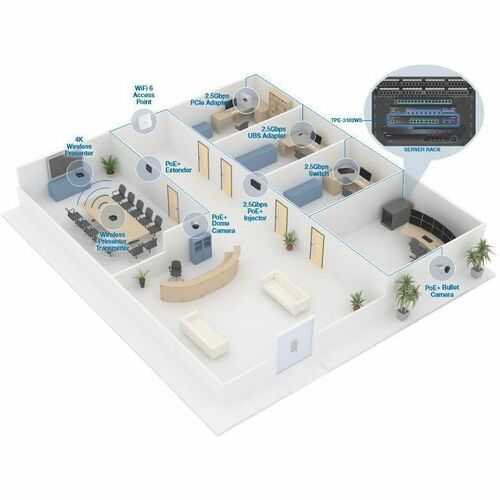

Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Multi-Gig Web Smart Managed PoE+ Switches by delivering up to 30W per port of PoE power and data over existing Ethernet cables. With PoE technology, users only need one set of cables to deliver both data and power. With these 2.5G managed PoE+ switches, network PoE devices, such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, access controls, and more.
These multi-gigabit managed PoE+ switches come equipped with 2.5GBASE-T RJ-45 ports that provide higher gigabit speeds capable of up to 2.5Gbps over your existing Cat5e or better cabling. Each multi-gig managed PoE+ switch also offers two dedicated 10G SFP+ slots for high-speed network connections, providing a cost-effective solution in adding 10G link capability to an SMB network. The switch design lowers energy consumption and eliminates distracting operating noise. TRENDnet's reliable 2.5G managed PoE+ switches with 10G SFP+ slots offer cost-effective solutions to increase your network's throughput.
Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Multi-Gig Web Smart Managed PoE+ Switches by delivering up to 30W per port of PoE power and data over existing Ethernet cables. With PoE technology, users only need one set of cables to deliver both data and power. With these 2.5G managed PoE+ switches, network PoE devices, such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, access controls, and more.

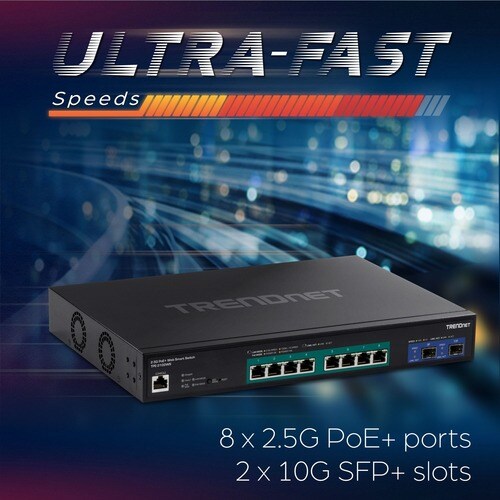

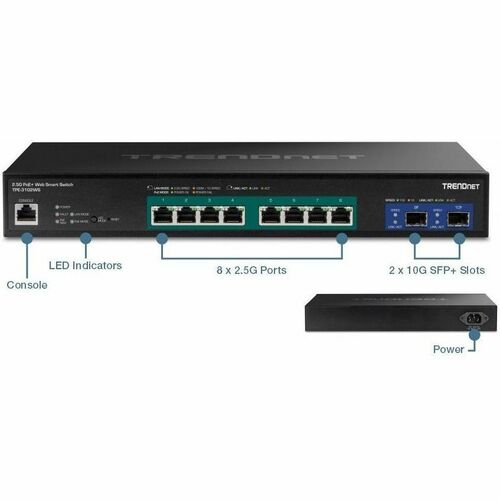

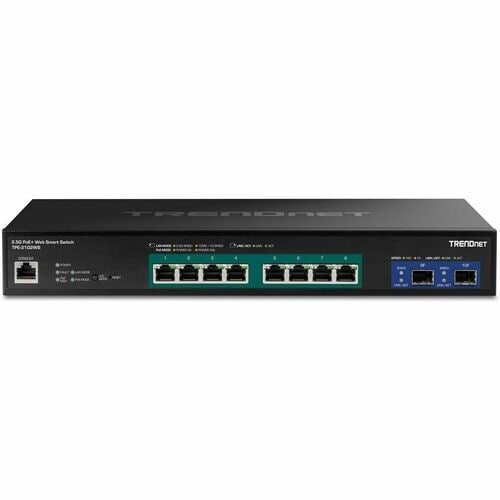

8 x 2.5GBASE-T PoE+ ports
2 x 10 SFP+ slots

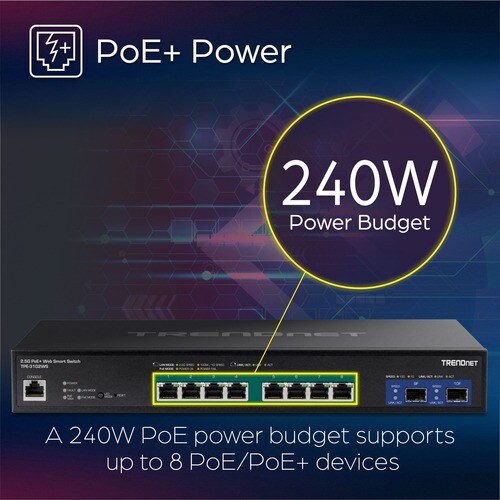

240W PoE power budget

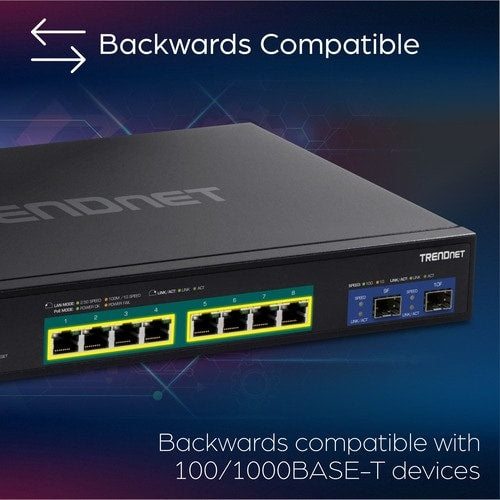

Backwards compatible with 100/1000BASE-T devices

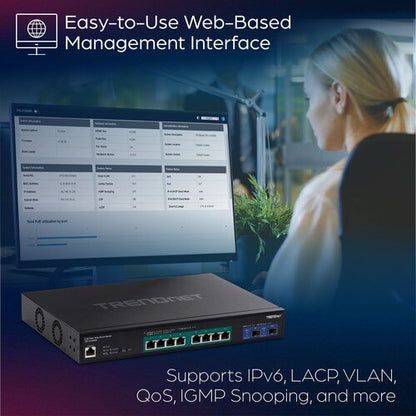

Easy-to-use web-based management interface
PoE alive check automatically attempts to recover an unresponsive PoE device connected
Supports IPv6, LACP, VLAN, QoS, and IGMP Snooping
Bandwidth control per port
Private, Multicast, and Voice VLAN support
1U 19" rack mountable
80Gbps switching capacity
IEEE 802.3bz (2.5G) compliant
IEEE 802.3ae (SFP+) compliant
Lifetime Warranty
NDAA / TAA compliant (U.S. and Canada only)
- NDAA / TAA compliant (U.S. and Canada only)
Spécifications techniques
| Management & Protocols | |
| Manageable | Yes |
| I/O Expansions | |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 2 |
| Total Number of Expansion Slots | 2 |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Modular | Yes |
| Total Number of Network Ports | 10 |
| Port/Expansion Slot Details | 8 x 2.5 Gigabit Ethernet PoE+ |
| 2 x 10 Gigabit Ethernet Expansion Slot | |
| Media & Performance | |
| Network Technology | 10GBase-X |
| 2.5GBase-T | |
| Ethernet Technology | 10 Gigabit Ethernet |
| 2.5 Gigabit Ethernet | |
| Media Type Supported | Optical Fiber |
| Twisted Pair | |
| Physical Characteristics | |
| Weight (Approximate) | 4.99 lb (2265 g) |
| Form Factor | Rack-mountable |
| Height | 1.73" (44 mm) |
| Width | 12.99" (330 mm) |
| Depth | 9.06" (230 mm) |
| Compatible Rack Unit | 1U |

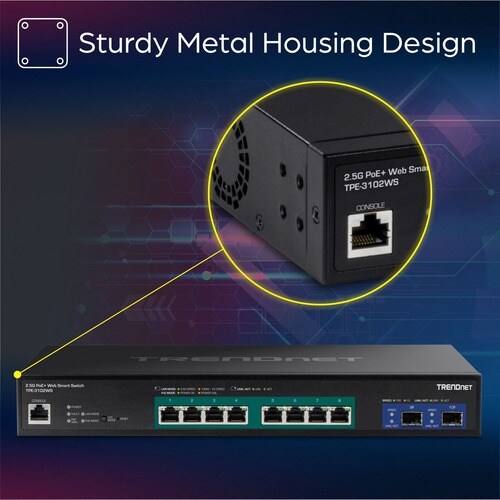

| Product Material | Metal |
| General Information | |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | TPE3102WS |
| Manufacturer Website Address | http://www.trendnet.com |
| Manufacturer | TRENDnet |
| Product Model | TPE-3102WS |
| Product Name | 10-Port Multi-Gig Web Smart PoE+ Switch |
| Product Line | Web Smart |
| Brand Name | TRENDnet |
| Power Description | |

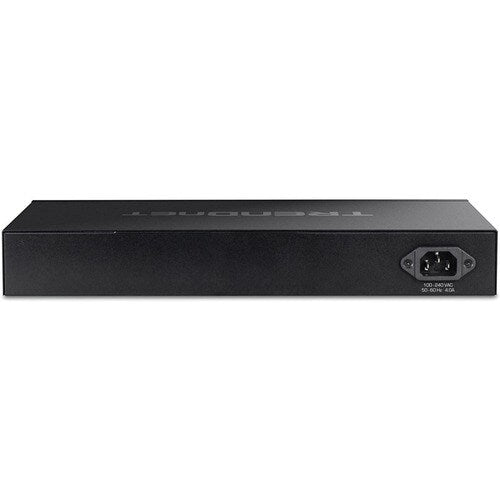

| Input Voltage | 120 V AC |
| 230 V AC | |
| Power Source | Power Supply |
| Frequency | 50 Hz |
| 60 Hz | |
| Power Consumption | 60 W |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 240 W |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.1AX |
| IEEE 802.1D | |
| IEEE 802.1p | |
| IEEE 802.1Q | |
| IEEE 802.1s | |
| IEEE 802.1w | |
| IEEE 802.1x | |
| IEEE 802.3 | |
| IEEE 802.3ab | |
| IEEE 802.3ad | |
| IEEE 802.3ae | |
| IEEE 802.3af | |
| IEEE 802.3at | |
| IEEE 802.3az | |
| IEEE 802.3bz | |
| IEEE 802.3u | |
| IEEE 802.3x | |
| IEEE 802.3z | |
| IEEE 802.1ab |

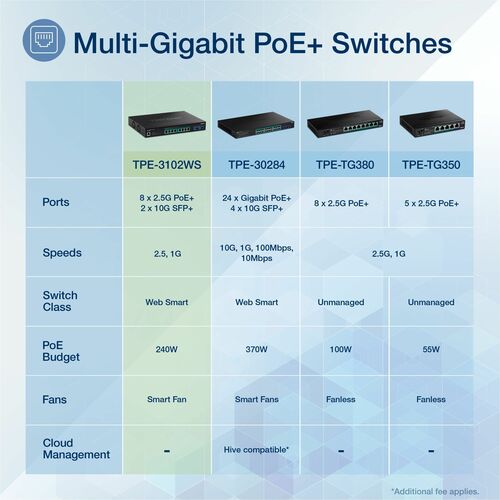

Comparaison de produits
