À propos du produit
ATX, LGA1700 socket for Intel® 14th / 13th / 12th Gen Core™ i9/ i7/ i5/ i3/ Pentium® /Celeron® Processors, Max. 125W TDP, H610, 2 x U-DIMM, VGA, HDMI, DP, 1 x PCIe5.0 x16 slot, 1 x PCIe3.0/2.0 x16 slot(x 4 mode), M.2 M Key, USB 3.2Gen2
- H610 ATX motherboard, LGA1700 socket for Intel® 14th / 13th / 12th Gen Core™ i9/ i7/ i5/ i3/ Pentium® /Celeron® Processors, Max. 125W TDP
- 2 x U-DIMM up to 64 GB DDR4 up to 3200 Mhz

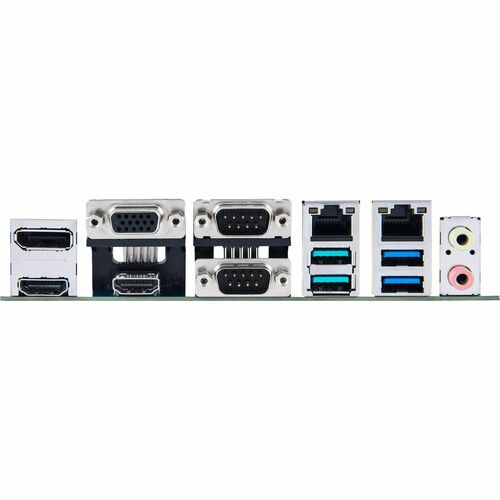

- Supports 3 displays configuration by multiple interface: VGA / HDMI / DP
- Supports 1 x PCIe5.0 x16 slots, 1 x PCIe3.0/2.0 x16 slots(x 4 mode), 1 x PCIe3.0/2.0 x 1 slot, 4 x PCI
- Advanced I/O and connectivity features
- 7 years of longevity with extended product life cycles
- Wide temperature range endurance: 0-60°C

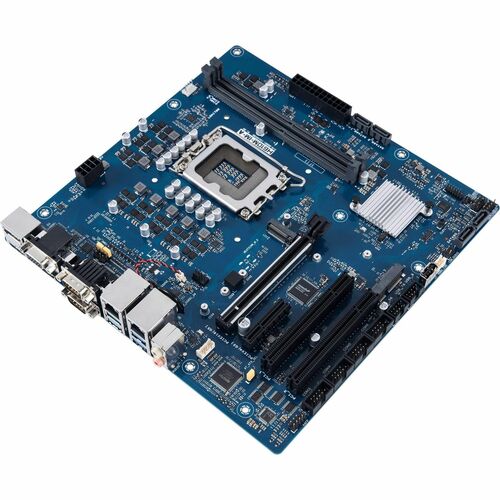

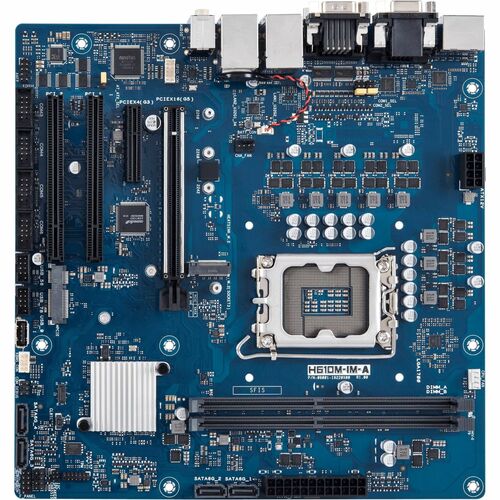

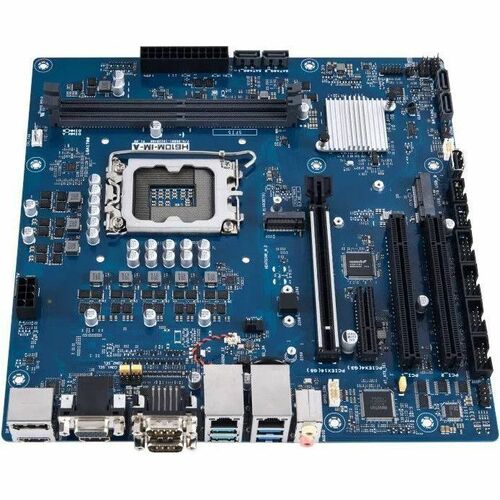

ASUS H610A-IM-A is a ATX industrial motherboard featuring rich I/O capabilities, advanced connectivity and flexible customization options. Offering multiple display outputs, legacy options for industrial applications, GPIO ports, dual Intel LAN as well as rich expandability with PCIe slot, M.2 M key, Multi COM, ASUS H610A-IM-A is an ideal choice for a wide range of embedded applications.
As the world's No.1 motherboard brand, ASUS offers industrial motherboards with durable, industrial-grade components for reliable 24/7 operation in harsh environments and use in different vertical markets. ASUS provides a faster time-to-market with customization and motherboard modulation by leveraging over 30 years of design and innovation expertise, world-class after sales service, material supply flexibility, the ability to respond rapidly to forecast changes and long-term technical support, enabling customers to find the perfect solution to match their requirements
- DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
- ATX form factor brings a significant number of PCI slots, expansion slots, and peripheral ports with an enhanced heat dissipation capability
- HDMI interface enables the user to experience a fantastic sound/video quality at the expense of a single cable
- DDR4 SDRAM compatible slot - Installs memory that reduces processor's idle time and enhances computer's performance
- 4 USB 2.0 ports offer the impressive data transfer speed of up to 60 Mb/sec
- Experience responsive performance, power and adaptability with the compatible Intel Celeron processor
Spécifications techniques
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| Miscellaneous | |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| Physical Characteristics | |
| Form Factor | ATX |
| Onboard Interfaces | |
| Number of SATA Interfaces | 4 |
| Total Number of Onboard USB Ports | 4 |
| Number of Onboard USB 2.0 Ports | 4 |
| Number of M.2 Interfaces | 1 |
| I/O Expansions | |
| Number of PCI Express x1 Slots | 1 |
| Number of PCI Express x16 Slots | 2 |
| PCI Express Standard | PCI Express 5.0 |
| PCI Express 3.0 | |
| Total Number of PCI Express Slots | 7 |
| Total Number of Expansion Slots | 7 |
| General Information | |
| Product Type | Industrial Motherboard |
| Manufacturer Part Number | 90ME04T0M0UCY0 |
| Manufacturer Website Address | http://www.asus.com |
| Manufacturer | ASUS Computer International |
| Product Model | H610M-IM-A |
| Product Name | H610M-IM-A Industrial Motherboard |
| Brand Name | Asus |
| Interfaces/Ports | |
| HDMI | Yes |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 2 |
| DisplayPort | Yes |
| Total Number of USB Ports | 8 |
| Number of USB 2.0 Ports | 4 |
| Number of USB 3.2 Gen 1 Ports | 2 |
| Memory | |
| Maximum Memory Supported | 64 GB |
| Memory Technology | DDR4 SDRAM |
| Number of Memory Slots | 2 |
| Memory Form Factor | UDIMM |
| DIMM | |
| Memory Speed Supported | 3200 MHz |
| 2933 MHz | |
| 2666 MHz | |
| 2400 MHz | |
| Processor & Chipset | |
| Processor Supported | Core |
| Celeron | |
| Pentium | |
| Core i9 | |
| Core i3 | |
| Core i5 | |
| Core i7 | |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1700 |
| Chipset Manufacturer | Intel |
| Chipset Model | H610 |
| Processor Generation Supported | 13th Gen |
| 12th Gen | |
| 14th Gen |
