À propos du produit
Ultracompact computer with 11th Gen Intel Celeron or Pentium mobile processor, fanless chassis for 6 W CPU, 2.5 Gbps LAN, WiFi 6, Windows 10 Pro, dual storage design and configurable port.
- Windows 10 Pro: ASUS recommends Windows 10 Pro for business. Other editions also available.
- Powerful processor: 11th Gen Intel Pentium Silver or Celeron
- Fanless chassis: Supports a 6-watt CPU while minimizing noise and dust ingress
- Onboard 2.5 Gbps Ethernet: High-speed network connectivity, built right in
- High-speed wireless: Integrated WiFi 6 and Bluetooth for easy cordless connections

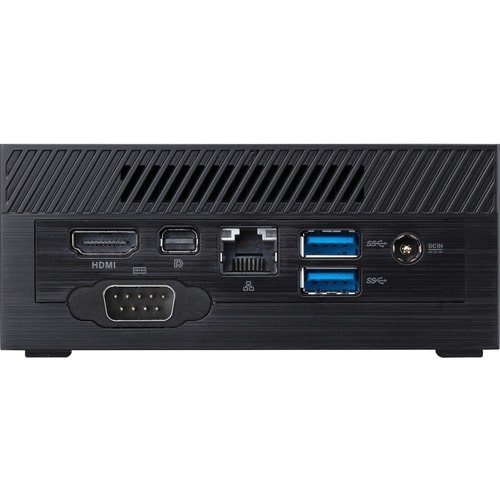

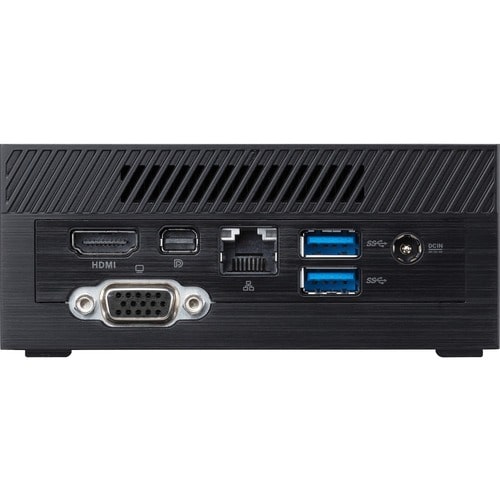

- Configurable port: Optional DisplayPort 1.4, VGA, Ethernet or COM socket

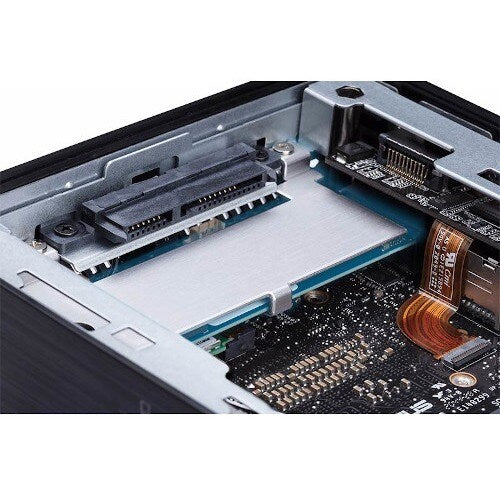

- Dual-storage design: 1 x 2.5" HDD + 1 x M.2 SSD or 1 x 2.5" HDD + onboard eMMC
- 24/7 reliability: Extensively tested to ensure long-term dependability
Easy modification, maximum possibilities

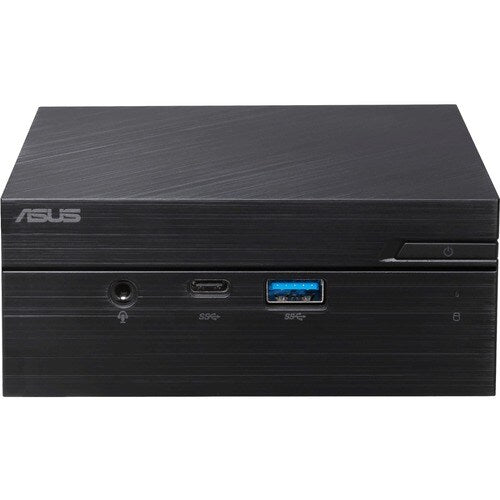

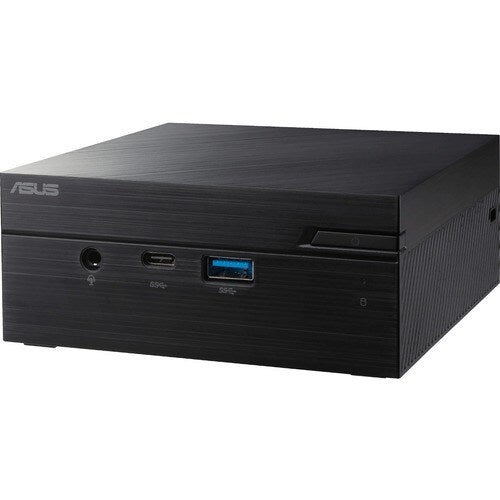

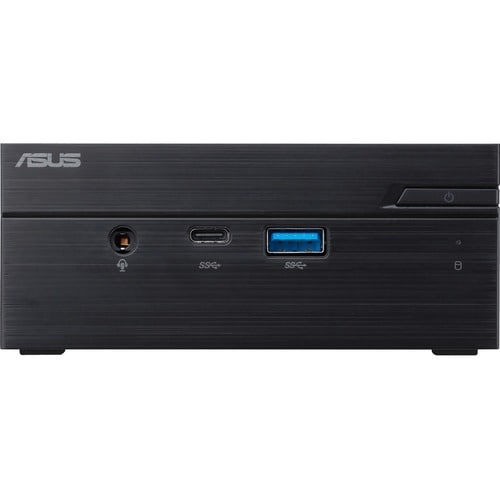

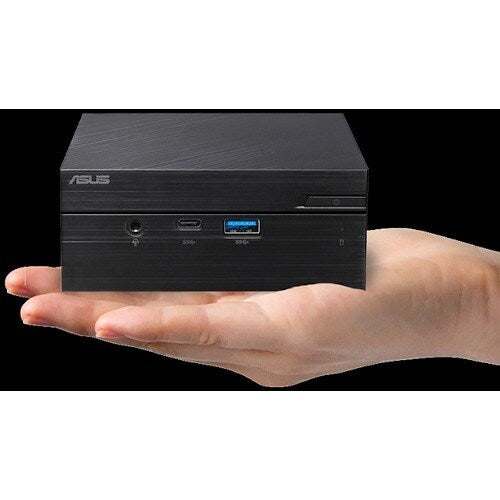

ASUS Mini PC PN41-S1 is an ultracompact computer that delivers powerful performance for a wide variety of home and business applications. Featuring the latest 11th Gen Intel® Pentium® Silver or Celeron® mobile processor with Intel UHD Graphics, plus support for high-speed 2933 MHz DDR4 memory, Mini PC PN41-S1 is ready for everyday multitask computing, yet its diminutive size makes it well-suited for applications where traditional PCs won't fit - from digital signage to small home-office setups.
Performance
ASUS Mini PC PN41-S1 is powered by the latest 11th Gen Intel Pentium Silver or Celeron mobile processor. Compared with traditional same-tier mobile processors, these Intel mobile processors deliver performance improvements of up to 36.45% for single-thread computing, up to 31.8% for multi-thread computing, and up to a 32% lift for the entire system - ensuring smooth operations for everything you do.
Powerful graphics
ASUS Mini PC PN41-S1 delivers class-leading graphics performance with integrated Intel UHD Graphics. In fact, compared to previous-generation mobile processors, PN41-S1's graphics performance in 3DMark11 v1.0.132 has increased by over 90% - and by an impressive 120% in 3D Mark Fire Strike.
Hyper-fast 2.5 Gbps networking
ASUS Mini PC PN41-S1 is engineered with onboard networking that runs at up to 2.5 Gbps - or 2.5X faster than even gigabit Ethernet. This hyper-fast LAN support provides seriously speedy networking that makes everyday tasks smoother and more efficient.

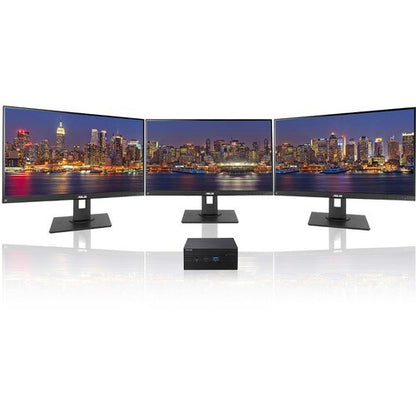

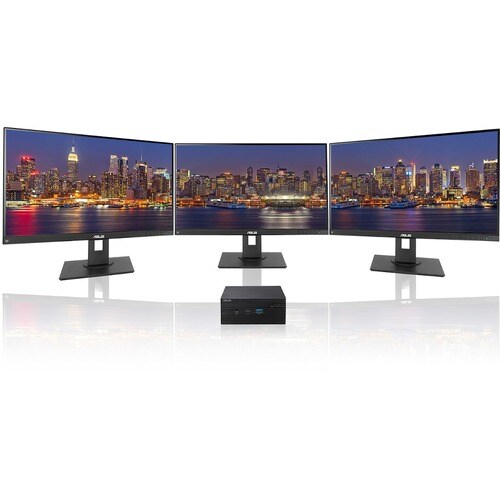

Triple-display support
ASUS Mini PC PN41-S1 supports up to three displays with 4K UHD resolution through HDMI, mini DisplayPort™ and a user-configurable port, extending your workspace across multiple monitors for more efficient and comfortable productivity experiences.

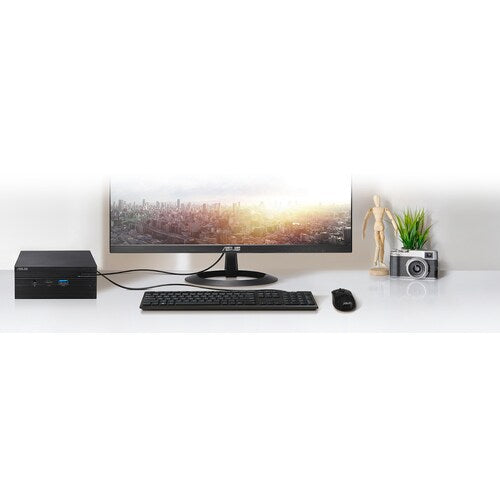

Diverse applications
With support for up to three displays and a fanless design, ASUS Mini PC PN41-S1 is versatile enough for all sorts of commercial applications - from digital signage in shops, exhibition halls and retail stores, to interactive kiosks, home working and online learning. PN41-S1 is also compact and powerful, making it the perfect choice for conference rooms and offices, including home working, or even for remote learning. With a configurable port and onboard 2.5 Gbps Ethernet, PN41-S1 makes setup and communication swift, smooth and efficient.
- Provides 4 USB ports for responsive and expanded device connections
- DDR4 SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power, resulting in an optimal computer performance and improved memory heat dissipation
Spécifications techniques
| Chipset | |
| Chipset Manufacturer | Intel |
| Power Description | |
| Maximum Power Supply Wattage | 65 W |
| Processor | |
| Processor Generation | 11th Gen |
| I/O Expansions | |
| Number of Total Expansion Bays | 1 |
| Number of M.2 Interfaces | 1 |
| Display & Graphics | |
| Graphics Controller Model | HD Graphics |
| Graphics Memory Technology | DDR4 SDRAM |
| Graphics Memory Accessibility | Shared |
| Memory | |
| Maximum Memory Supported | 16 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-2933/PC4-23466 |
| Total Number of Memory Slots | 2 |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Energy Star | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Network & Communication | |
| Bluetooth | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ax |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Operating System | |
| Operating System Supported | Windows 10 Home |
| Windows 11 Home | |
| Windows 11 Pro | |
| Windows 10 Pro | |
| Storage | |
| Supported Storage Drive Interfaces | PCI Express 3.0 |
| Serial ATA III | |
| PCI Express 3.0 x2 | |
| Supported Storage Drive Types | HDD |
| SSD | |
| Physical Characteristics | |
| Weight (Approximate) | 1.54 lb (700 g) |
| Form Factor | Mini PC |
| Height | 1.93" (49 mm) |
| Width | 4.53" (115 mm) |
| Depth | 4.53" (115 mm) |
| Product Color | Black |
| Color Family | Black |
| General Information | |
| Product Type | Barebone System |
| Manufacturer Part Number | 90MR00I1M003S0 |
| Manufacturer Website Address | http://www.asus.com |
| Manufacturer | ASUS Computer International |
| Product Model | PN41-S1-BBF5000XFD |
| Product Name | PN41-S1-BBF5000XFD Barebone System |
| Product Series | PN41-S1 |
| Brand Name | Asus |

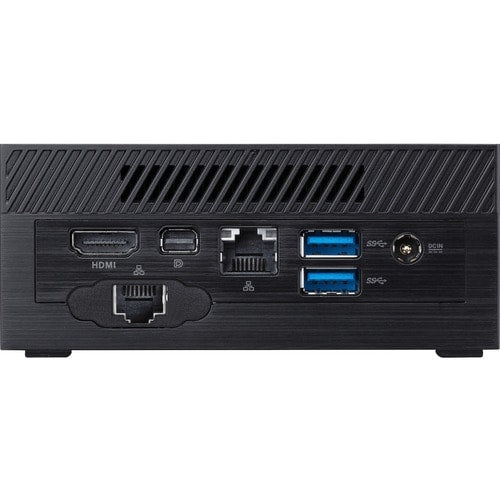

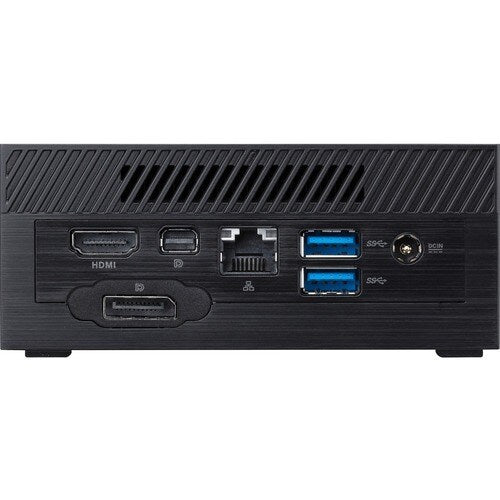

| Interfaces/Ports | |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Total Number of USB Ports | 4 |
| Mini DisplayPort | Yes |
| USB Type-C Detail | 1 x USB 3.2 Gen1 Type-C |
| HDMI (Rear) | Yes |
| USB Type-C (Front) | Yes |
| Number of USB 3.2 Gen 1 Ports | 3 |
