À propos du produit

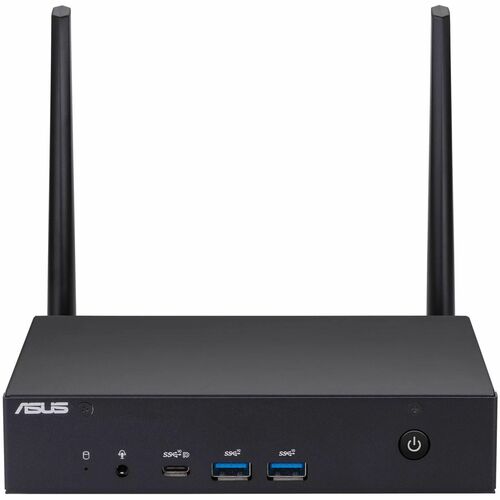

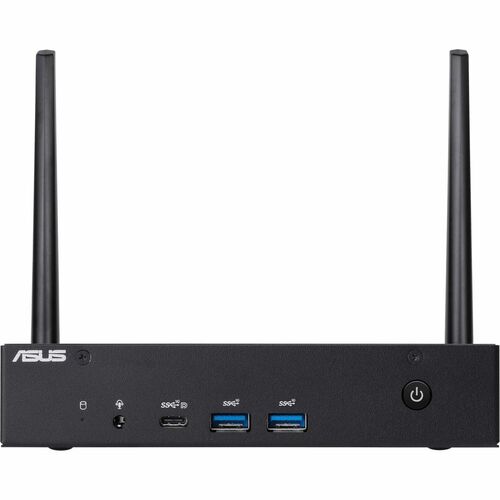

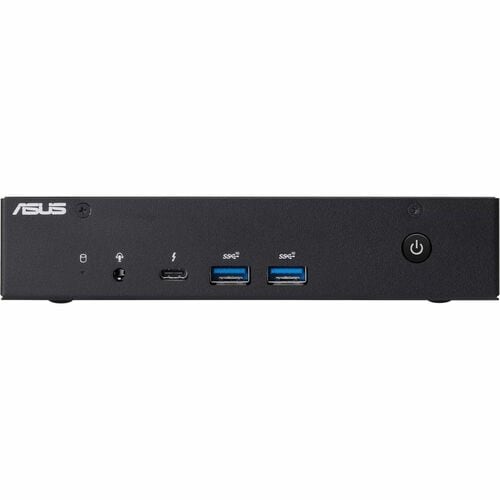

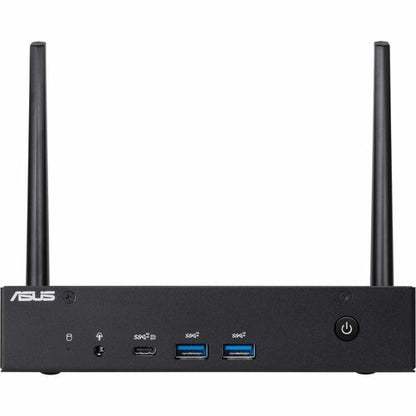

Ultracompact mini PC with rich connectivity features, designed for diversified industrial applications
ASUS Mini PC PL63 is a compact mini PC with a space-saving 0.67-liter chassis. It's powered by an 11th Gen Intel® Core™ processor with Intel Iris® Xe graphics to handle commercial tasks with ease. Mini PC PL63 offers PCIe® Gen 4 x4 M.2 NVMe SSD support and features Intel 2.5 Gb LAN, along with dual Thunderbolt™ 4 ports that enable quad-display support and Power Delivery (PD) input, allowing PL63 to draw power directly from a display. A robust metal chassis ensures durability and reliability, even in the harsh environments, making it ideal for retail, enterprise and educational applications.
Design | Compact, space-saving design for versatile deployment

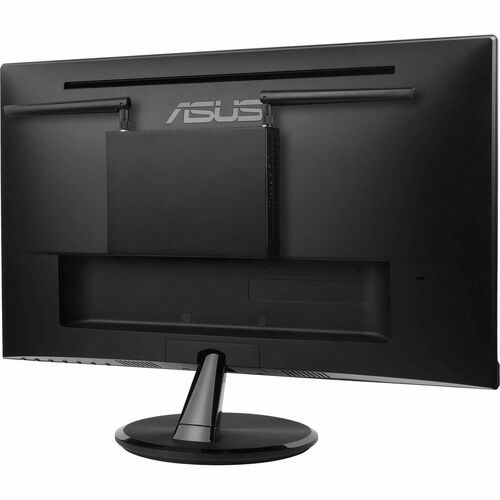

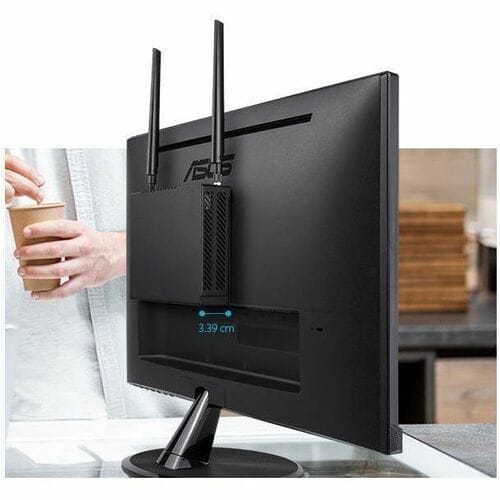

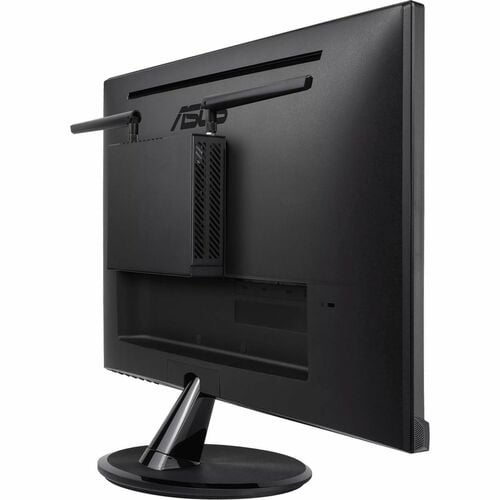

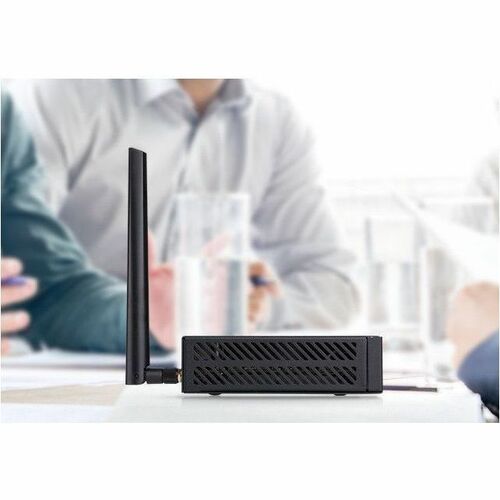

The robust and ultra-compact ASUS Mini PC PL63 easily blends into any retail, office, medical or educational environment. Its lightweight 0.67-liter chassis measures just 167 x 120 x 34 mm, so it can be placed almost anywhere ? or it can be VESA-mounted on the back of a display for a space-saving, all-in-one solution.
Expandability | Flexible, high-speed connectivity

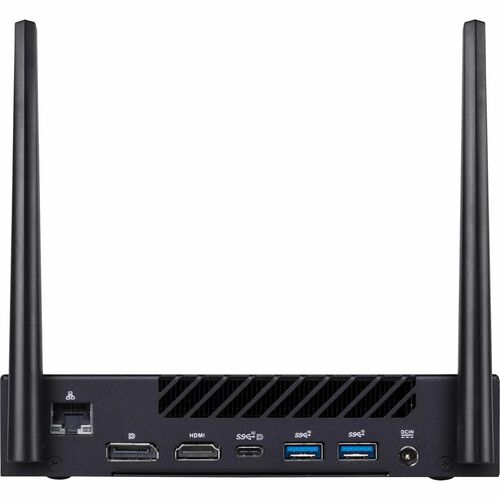

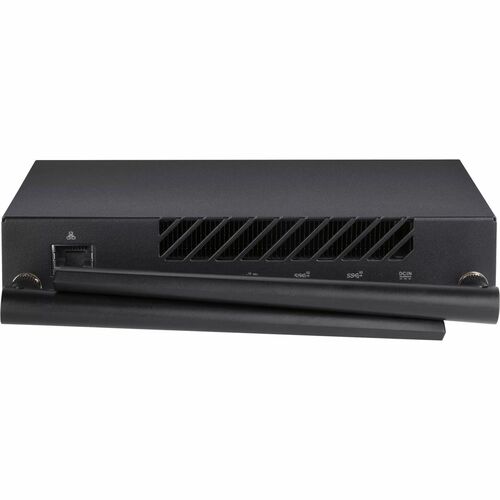

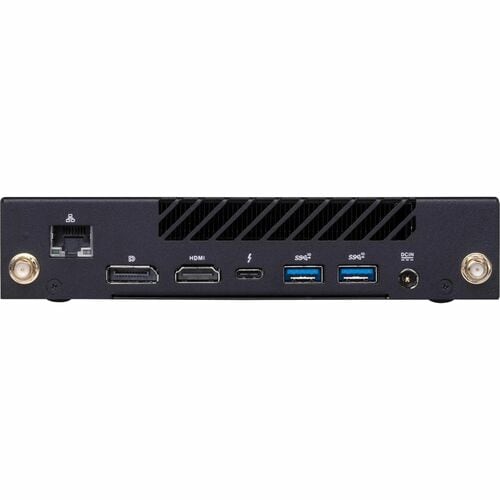

Mini PC PL63 offers comprehensive connectivity with a multitude of ports, including two Thunderbolt™ 4 ports and one 2.5 Gb Ethernet port.
Visibility | Stunning 8K visuals or quad-display support

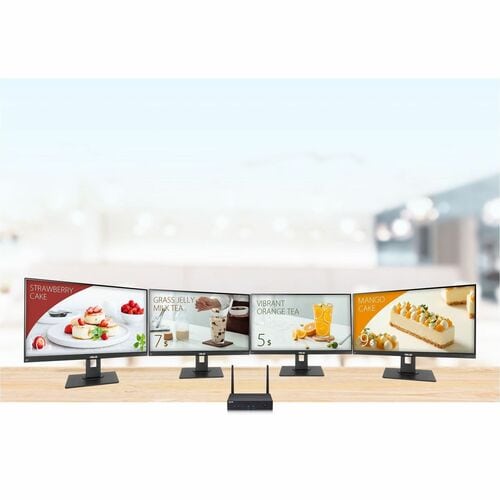

Mini PC PL63 can support one 8K at 60 Hz display or four 4K displays simultaneously via HDMI®, DisplayPort™ and the two Thunderbolt™ 4 ports. This stunning visual performance makes it excellent for digital signage, billboard and advertising applications.
Performance | Small and powerful
11th Gen Intel Core processors deliver outstanding performance and smooth computing power, while integrated Intel Iris® Xe graphics enhance fast-moving visuals to enable Mini PC PL63 to tackle intensive business operation with ease.
Performance | Improved Cooling

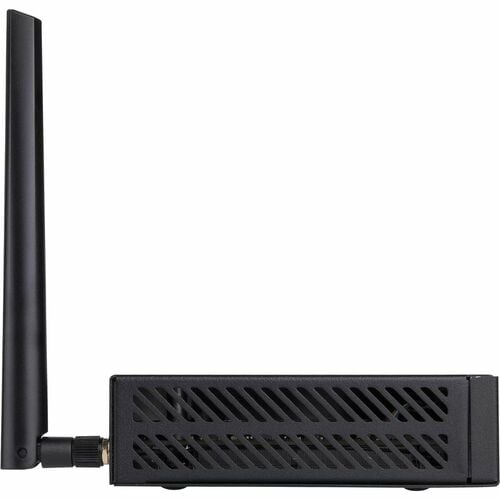

Mini PC PL63 has unique cooling features, including a large fan to boost airflow, a new thermal module with a heat pipe for better heat dissipation, and an aluminum heatsink for more efficient conductivity. In addition, the exclusive ASUS Anti-Dust Self-Cleaning System effectively removes dust to maintain a cleaner heatsink and prolong the lifecycle of the product. A cleaner system also leads to quieter fan performance.
Speedy PCIe 4.0 support
Mini PC PL63 can accommodate PCIe Gen 4.0 x4 M.2 SSD, giving users lower latency and double the data transfer rate of the previous PCIe 3.0 standard.
Hyper-fast 2.5 Gbps networking
The next-gen 2.5GBASE-T (2.5G) networking technology delivers ultrafast networking speeds of up to 2.5 Gbps for desktop PCs.
Advanced Thunderbolt 4 connectivity
The latest Thunderbolt 4 standard brings speeds of up to 40 Gbps and DisplayPort connectivity to USB-C. It's even compatible with the USB4 standard, making it the fastest, most versatile connection to any dock, display or storage device.
- Powerful performance with 11th Gen Intel® Core™ processors
- Intel Iris® Xe Graphics* delivers outstanding graphics performance and supports up to four displays simultaneously
- Compact, space-saving 0.67-liter metal chassis ensures reliability and suitability across a wide range of industries
- PCIe® Gen 4 x4 M.2 NVMe® SSD for fast data transfers
- Comprehensive I/O connectivity including dual Thunderbolt™ 4 ports*, PD power input and 2.5 Gb LAN
- Intel Dynamic Tuning Technology (DTT): Automated optimization to ensure best system performance
- ASUS Corporate Stable Model program ensures a 36-month stable-supply guarantee
- 24/7 reliability - Extensively tested to ensure long-term dependability
Spécifications techniques
| Chipset | |
| Chipset Manufacturer | Intel |
| Controllers | |
| Controller Type | NVMe |
| Power Description | |
| Maximum Power Supply Wattage | 90 W |
| Storage | |
| Supported Storage Drive Types | SSD |
| Operating System | |
| Operating System Supported | Windows 10 Pro |
| Windows 11 | |
| Display & Graphics | |
| Graphics Controller Model | Iris Xe Graphics |
| Graphics Memory Technology | DDR4 SDRAM |
| Graphics Memory Accessibility | Shared |
| Memory | |
| Maximum Memory Supported | 64 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Interfaces/Ports | |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| HDMI (Rear) | Yes |
| Number of USB 3.2 Gen 2 Ports | 4 |
| Miscellaneous | |

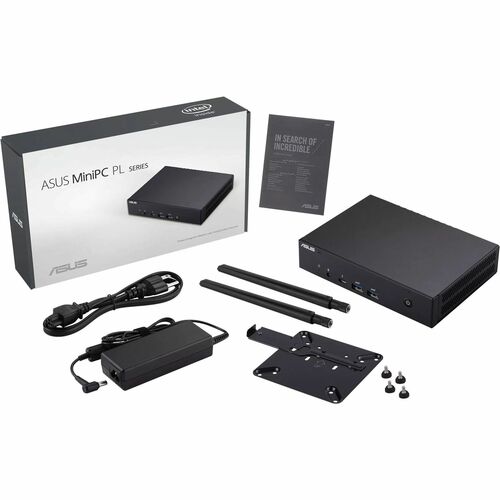

| Package Contents |
|
| Environmentally Friendly | Yes |
| Energy Star | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Network & Communication | |
| Bluetooth | Yes |
| Wireless LAN | Yes |
| Bluetooth Standard | Bluetooth 5.0 |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Processor | |
| Processor Supported | Core i5 |
| Core i7 | |
| Core i3 | |
| 64-bit Processing | Yes |
| Physical Characteristics | |
| Weight (Approximate) | 1.54 lb (700 g) |
| Form Factor | Mini PC |
| Height | 1.33" (33.90 mm) |
| Width | 6.54" (166.20 mm) |
| Depth | 4.71" (119.70 mm) |
| Product Color | Black |
| Color Family | Black |
| General Information | |
| Product Type | Barebone System |
| Manufacturer Part Number | 90MR00P1M00030 |
| Manufacturer Website Address | http://www.asus.com |
| Manufacturer | ASUS Computer International |
| Product Model | PL63-BB5000XT-O |
| Product Name | PL63-BB5000XT-O Barebone System |
| Product Series | PL63 |
| Brand Name | Asus |
