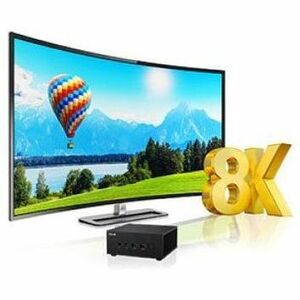

Ultra-compact Mini PC provides flexible, comprehensive solutions
ASUS ExpertCenter PN53 is no lightweight when it comes to performance. It harnesses the power of the latest AMD Ryzen™ 6000 and 7000 Series processor combined AMD Radeon™ 600M series graphics, and can accommodate multiple storage combinations. There's also two ultrafast PCIe®Gen 4 SSD slots and DDR5 support to ensure fast boot times and rapid app loads.
- Powered by the latest AMD Ryzen™ 6000H Series Processor with Radeon™ graphics
- Quad-4K displays support and 8K UHD support**
- Support 7 USB ports, including 2 x USB 4 Type C ports, and on-board dual HDMI ports
- Features Two-Way AI Noise Cancelation to provide crystal-clear online voice communication
- Support DisplayPort 1.4 & Power Delivery input through rear USB Type C port
- Onboard 2.5GbE LAN delivering faster Ethernet connectivity
- Multi-storage design, support up to up to 2x M.2 PCIe Gen4x4 SSD and 1x HDD
- Integrated Wi-Fi 6E and Bluetooth for easy cordless connections
- Configurable Ports support DP1.4/VGA/COM/HDMI options
- 24/7 reliability - Extensively tested to ensure long-term dependability
Spécifications techniques
| Chipset | |
| Chipset Manufacturer | AMD |
| Operating System | |
| Operating System Supported | Windows 11 Pro |
| Power Description | |
| Maximum Power Supply Wattage | 150 W |
| Controllers | |
| Controller Type | Serial ATA |
| NVMe | |
| I/O Expansions | |
| Number of Total Expansion Bays | 1 |
| Number of M.2 Interfaces | 2 |
| Display & Graphics | |
| Graphics Controller Model | Radeon Graphics |
| Graphics Memory Technology | DDR5 SDRAM |
| Graphics Memory Accessibility | Shared |
| Processor | |
| Processor Supported | Ryzen 5 |
| Ryzen 7 | |
| 64-bit Processing | Yes |
| Memory | |
| Maximum Memory Supported | 16 GB |
| Memory Technology | DDR5 SDRAM |
| Memory Standard | DDR5-4800/PC5-38400 |
| Total Number of Memory Slots | 2 |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Energy Star | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Storage | |
| Supported Storage Drive Interfaces | PCI Express NVMe 4.0 |
| Serial ATA III | |
| Supported Storage Drive Types | HDD |
| SSD | |
| Network & Communication | |
| Bluetooth | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ax |
| Bluetooth Standard | Bluetooth 5.2 |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Physical Characteristics | |
| Weight (Approximate) | 1.98 lb (900 g) |
| Form Factor | Mini PC |
| Height | 2.28" (58 mm) |
| Width | 4.72" (120 mm) |
| Depth | 5.12" (130 mm) |
| Product Color | Black |
| Color Family | Black |
| General Information | |
| Product Type | Barebone System |
| Manufacturer Part Number | 90MR00S2M000P0 |
| Manufacturer Website Address | http://www.asus.com |
| Manufacturer | ASUS Computer International |
| Product Model | PN53-BB7000X1TD-NL |
| Product Name | ExpertCenter PN53-BB7000X1TD-NL Barebone System |
| Product Line | ExpertCenter |
| Product Series | PN53 |
| Brand Name | Asus |
| Interfaces/Ports | |
| Number of SATA Interfaces | 1 |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Total Number of USB Ports | 7 |
| USB Type-C Detail | 1 x USB 4 Type-C (w/ DP output),1 x USB 4 Type-C (w/ DP output, PD input) |
| HDMI (Rear) | Yes |
| USB Type-C (Front) | Yes |
| USB Type-C (Rear) | Yes |
| Number of USB 3.2 Gen 1 Ports | 5 |
