À propos du produit
- 11th Gen Intel processors: Latest technology for desktop-grade performance.
- Intel Optane H20 SSD support: Storage acceleration for faster and more responsive performance.
- New chassis design: Compact, sleek and stylish modern look that's ready to fit in anywhere.
- Quad-display support: Drive up to four screens simultaneously, via one ultra-compact, sub-2.4L computer.
- Embedded power adapter: 180 W adapter built into the chassis to minimize desktop clutter.
- Support for four storage devices: Ready for up to two M.2 HDDs and two M.2 SSDs, support for PCI Express®4.0 x4, and PCI Express 3.0 x4.
- High-speed connectivity: Dual Thunderbolt TM 4, HDMI 2.1, Intel 2.5 Gbps LAN and WiFi 6E* built right in for stable and speedy connections.
- Intel Dynamic Tuning Technology (DTT): Automated optimization to ensure best system performance.
- 24/7 reliability test: A set of rigorous procedures ensures stable operation

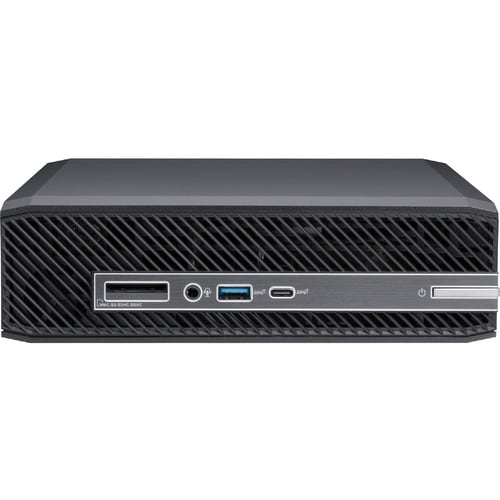

The all-around high-performance mini PC
The ASUS Mini PC PN80 series delivers amazing performance in a compact package. It houses up to two 2.5-inch storage drives plus two M.2 SSDs and offers Intel® Optane™ SSD H20 support. PN80 is powered by a desktop-grade Intel Core™ processor to give it the performance to tackle a wide range of tasks. An embedded power adapter complements its space-saving design, allowing users to place PN80 vertically or horizontally.
Stylish design
Measuring 20 x 20 x 6 cm, the compact 2.4-liter chassis of PN80 has a modern aesthetic that makes it perfect for offices. And at 2.5 kg, it can be mounted on a monitor via its integrated VESA mount. Specially designed vents ensure that it stays cool in any scenario.Embedded power adapter
A built-in power adapter helps to keep any workstation clutter-free. PN80 can also be used vertically, standing on the desk or the floor.
Flexible storage
An optional multi-storage customizable design can accommodate up to two M.2 SSDs plus two 2.5-inch SSDs or HDDs for flexibility.
Stunning graphics
PN80 can support up to four 4K displays or two 8K display via HDMI, DisplayPort (via two Thunderbolt 4 ports) and optional DisplayPort or HDMI port.
Lightning-fast Thunderbolt™ 4
The two Thunderbolt™ 4 ports on ASUS Mini PC PN80 give you unrivaled versatility with ultrafast speeds. They support USB-C Power Delivery and provide up to 40 Gbps data-transfer speeds for high-performance peripherals. Combined with the Thunderbolt 4 ports and HDMI port and optional Display or HDMI port PN80 can support a maximum of four displays.
All the right connections
With a full complement of I/O ports, connecting your Mini PC PN80 to your studio peripherals, display devices and networks is easy. There is a Thunderbolt™ port, a USB 3.2 Gen 2 Type-C® port, a 2.5 Gbps Ethernet LAN port, the latest HDMI® 2.1 port, and an SDXC card reader that puts your connectivity leagues ahead of the pack. ASUS Mini PC PN80 also sipports Wi-Fi 6 or Wi-Fi 6E, so you can easily connect, create and share on the go.
Built for business
VGA, DisplayPort and COM enable compatibility with all types of monitors and legacy devices like barcode scanners and receipt printers. This gives PN80 the versatility to be deployed cross a wide range of uses, including digital signage, point-of-sale systems and intelligent vending machines.
- Intel Core i7 3.20 GHz processor provides lightning fast speed and peak performance even for toughest tasks and intensive games
- With 16 GB of memory, users can run many programs without losing execution
- 512 GB SSD is enough to store your favorite songs, movies, pictures, and essential documents
- It's Windows 11 Pro operating system offers powerful platform to efficiently run routine applications
Spécifications techniques
| Chipset | |
| Chipset Manufacturer | Intel |
| Warranty | |
| Additional Warranty Information | 1 year manufacturer's limited warranty |
| Operating System | |
| Operating System | Windows 11 Pro |
| Operating System Platform | Windows |
| Memory | |
| Standard Memory | 16 GB |
| Memory Technology | DDR4 SDRAM |
| Intel Optane Memory Ready | Yes |
| Storage | |
| Solid State Drive Interface | PCI Express NVMe 4.0 |
| Total Solid State Drive Capacity | 512 GB |
| SSD Form Factor | M.2 |
| Display & Graphics | |
| Graphics Controller Manufacturer | Intel |
| Graphics Controller Model | UHD Graphics |
| Graphics Memory Technology | DDR4 SDRAM |
| Graphics Memory Accessibility | Shared |
| Miscellaneous | |
| Package Contents |
|
| Features | Security Slot |
| Environmentally Friendly | Yes |
| Energy Star | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Network & Communication | |
| Bluetooth | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ax |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| LAN Model | I225V |
| Physical Characteristics | |
| Weight (Approximate) | 5.51 lb (2500 g) |
| Form Factor | Mini PC |
| Height | 2.36" (60 mm) |
| Width | 7.87" (200 mm) |
| Depth | 7.87" (200 mm) |
| Product Color | Black |
| Processor | |
| Processor Speed | 3.20 GHz |
| Processor Type | Core i7 |
| Processor Model | i7-11700B |
| Processor Manufacturer | Intel |
| Maximum Turbo Speed | 4.80 GHz |
| Processor Generation | 11th Gen |
| General Information | |
| Product Type | Desktop Computer |
| Manufacturer Part Number | 90MS02B1-M000P0 |
| Manufacturer Website Address | http://www.asus.com |
| Manufacturer | ASUS Computer International |
| Product Model | PN80-SYS715PXFD |
| Product Name | PN80-SYS715PXFD Desktop Computer |
| Product Series | PN80 |
| Brand Name | Asus |
| Interfaces/Ports | |
| Total Number of USB Ports | 6 |
| Number Of Ethernet Ports | 1 |
| USB Type-C Detail | 1 x USB 3.2 Gen2 Type-C |
| HDMI (Rear) | Yes |
| USB Type-C (Front) | Yes |
| Number of DisplayPort Outputs (Rear) | 1 |
| DisplayPort (Rear) | Yes |
| Number of USB 3.2 Gen 2 Ports | 5 |
| Number of Thunderbolt 4 Ports | 2 |
