À propos du produit
ASUS Triple 4KThunderbolt™4 Dock | All the connections you need
ASUS Triple 4K Thunderbolt™4 Dock is an all-in-one docking station designed for creators, and is the smallest 12-in-1 Thunderbolt™4 dock. It requires just a single cable connection to a creator laptop to hook up to multiple 4K displays and peripherals, as well as memory card readers for a complete, highly efficient creative workstation.

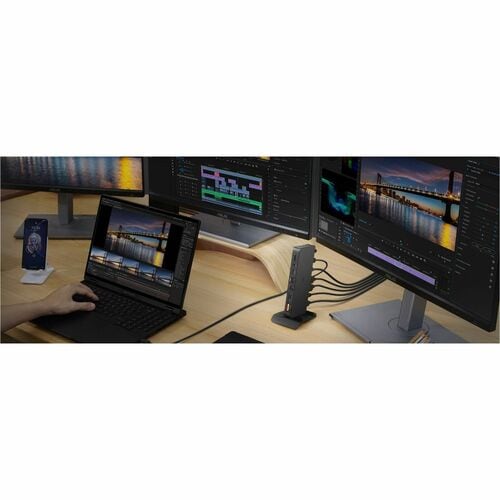

Productivity | Triple 4K display support and dual HDMI 2.1
With Thunderbolt™4 and two HDMI 2.1 ports, ASUS Triple 4K Thunderbolt™4 Dock gives creators the ability to multitask and work with greater levels of detail across a single 8K monitor or a triple 4K display setup.
Versatility | Unparalleled 8K visuals
Enthralling viewing experiences are possible with ultrahigh 8K resolution via HDMI 2.1 or Thunderbolt™4. Check the table below for specific resolutions for all monitor combinations.
Connectivity | Simultaneous multi-device connections
ASUS Triple 4K Thunderbolt™4 Dock includes a multitude of I/O ports that enable simultaneous connections to a myriad of devices, including cameras, drones, and others. Plus, it includes two card readers catering to SD and microSD cards to give users the flexibility to back up data from various devices quickly and easily.
Faste speed | Faster data transfers
High-speed data transfers are facilitated with 2.5 G Ethernet and Thunderbolt™4 connectivity, even for large files, allowing users to get more done in less time. For example, 12 seconds is all it takes to transfer a 20 GB image file. The UFP Thunderbolt™4 port offers up to 96 W passthrough charging. The ASUS Triple 4K Thunderbolt™4 Dock also makes it easy for IT administrators to manage company assets and keep information safe with MAC address pass-through, remote port-disablement, and Wake-on-LAN.

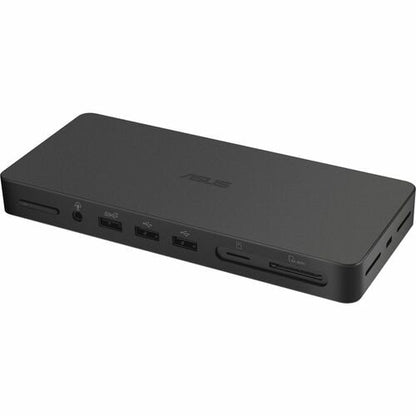

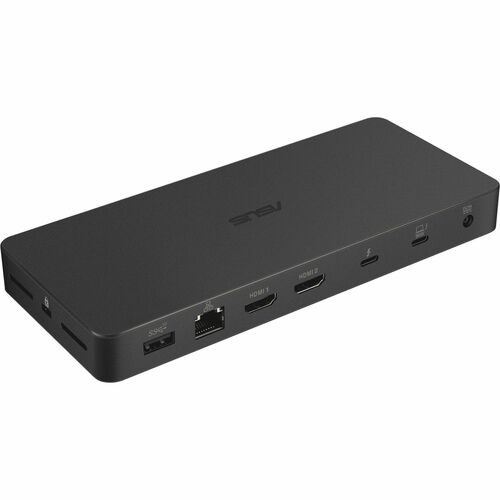

Design | Compact, innovative design
ASUS Triple 4K Thunderbolt™4 Dock is the smallest Thunderbolt™4-enabled 12-in-1 dock. Finished in aluminum, its chiseled, rectangular design fits perfectly under a monitor stand to ensure a neat workstation setup. Innovative cooling features keep internal temperatures at optimal levels to ensure sustained high performance.
Design | A well-organized workstation

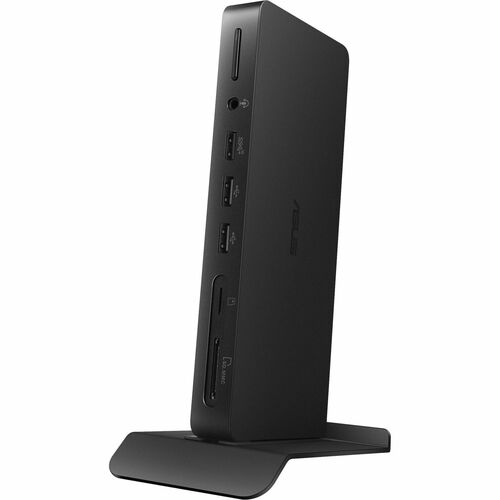

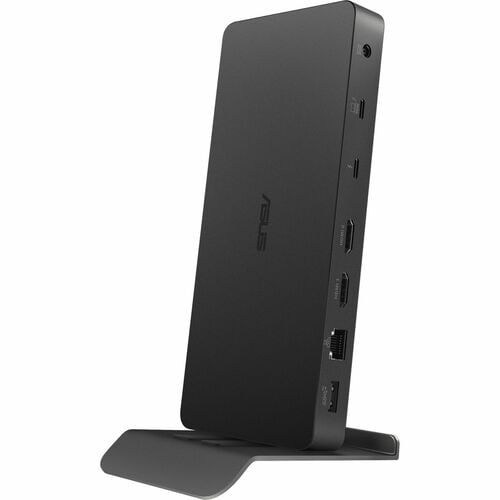

The adjustable aluminum stand gives ASUS Triple 4K Thunderbolt™4 Dock a firm footing when placed on a table, and it even includes a locking knob that secures it to the edge of a desk or rear of a monitor.

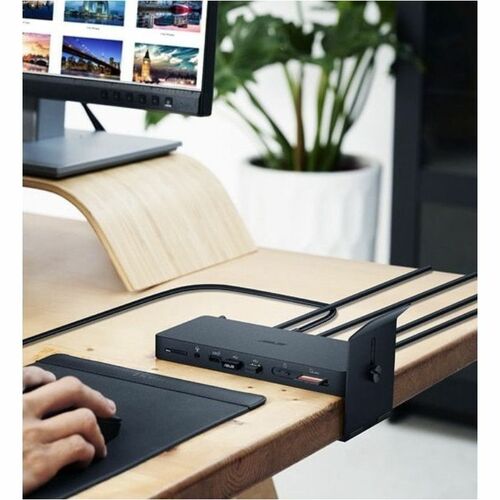

- SECURED ON A DESK

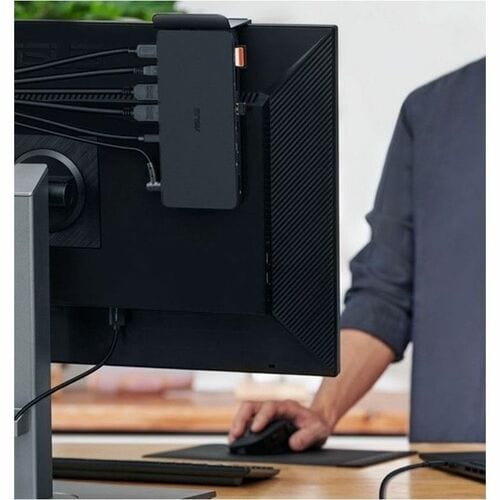

- SECURED TO A MONITOR
Spécifications techniques
| Miscellaneous | |
| Kensington Security Slot | Yes |
| Network & Communication | |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Power Description | |
| Maximum Power Supply Wattage | 150 W |
| Power Source Type | Power Adapter |
| Software | |
| Operating System Supported | macOS Monterey |
| Windows 10 | |
| Physical Characteristics | |
| Height | 7.28" (185 mm) |
| Width | 3.15" (80 mm) |
| Depth | 0.83" (21 mm) |
| Product Color | Black |
| Color Family | Black |
| General Information | |
| Product Type | Docking Station |
| Manufacturer Part Number | 90XB08DNBDS000 |
| Manufacturer Website Address | http://www.asus.com |
| Manufacturer | ASUS Computer International |
| Product Model | DC500 |
| Product Name | Triple 4K Thunderbolt 4 Dock DC500 |
| Package Type | Retail |
| Brand Name | Asus |
| Interfaces/Ports | |
| Host Interface | Thunderbolt 4 |
| HDMI | Yes |
| HDMI Version | 2.1 |
| Number of HDMI Ports | 2 |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Total Number of USB Ports | 4 |
| Number of USB 2.0 Ports | 2 |
| Thunderbolt | Yes |
| Headphone/Microphone Combo Port | Yes |
| Number of RJ-45 Ports | 1 |
| Number of USB Type-A Ports | 4 |
| Thunderbolt Ports Quantity | 1 |
| USB Power Delivery | 96W |
| Number of USB 3.2 Gen 2 Type-A Ports | 2 |
| Number of Thunderbolt 4 Ports | 1 |
| USB Type-A | Yes |
| Technical Information | |
| Cable Length | 2.6 ft |
| Device Supported | Notebook/Monitor |
| Connectivity Technology | Wired |
| Features | Power Delivery Pass-through |
| Charging Capability | Yes |
| Memory Card Supported | SD |
| microSD | |
| Memory Card Reader | Yes |
| Maximum Data Transfer Rate | 5 GB/s |
| Number of Displays Supported | 3 |
| Supported Resolutions | 3840 x 2160 |
| 2560 x 2048 | |
| 2560 x 1600 | |
| 2560 x 1440 | |
| 2048 x 1536 | |
| 2048 x 1152 | |
| 1920 x 1080 | |
| 1680 x 1050 | |
| 1600 x 900 | |
| 1280 x 768 | |
| 1280 x 720 | |
| 7680 x 4320 | |
| Screen Mode Supported | 8K |
| WSXGA+ | |
| QWXGA | |
| QSXGA | |
| QHD | |
| 4K | |
| Full HD | |
| WXGA | |
| HD | |
| 2K | |
| HD+ | |
| Management Features | Wake-on-LAN |
| MAC Address Pass-through | |
| Security Slot Type | Kensington Security Slot |
