À propos du produit

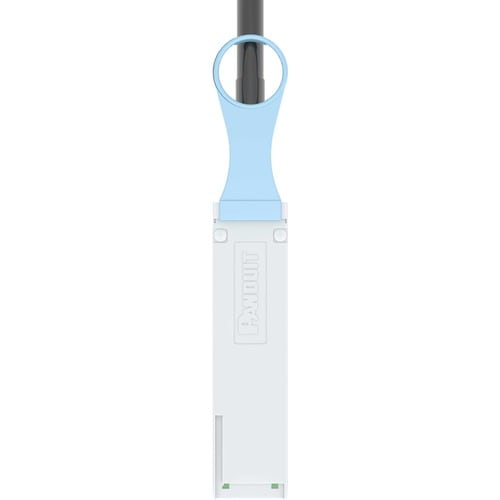

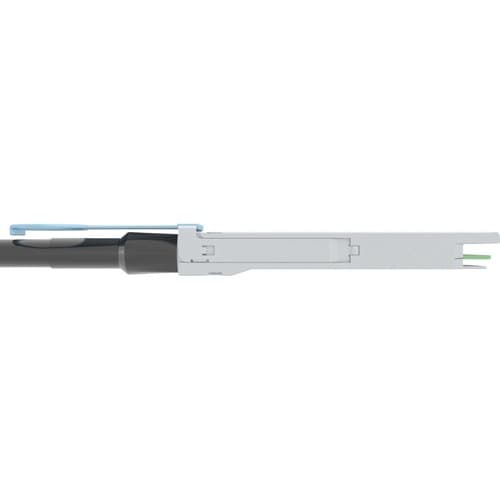

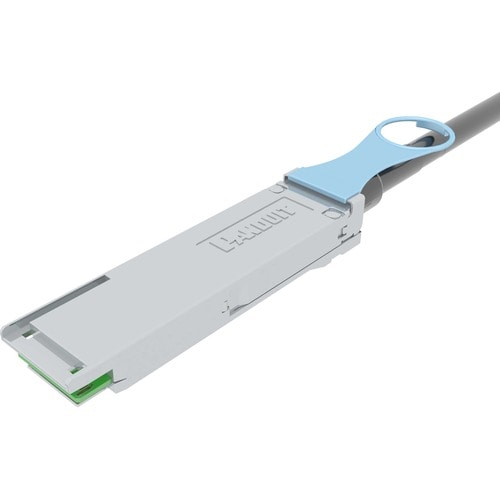

High speed twinaxial cable assembly with QSFP28 100Gbps hot pluggable modular connectors on each end, Black, 1 meter
- 100% performance tested:Confidence that each assembly delivers specified performance for ensurenetwork availability
- High Density:Can be used in place of four SFP28 Direct Attach Cables tripling switch port density
- Low latency performance:Ideal for high performance computer clustering and other latency sensitive applications
- Passive low power assembly:Provides a low cost short reach interconnect option with no additional power draw
- Low profile :Robust easy-to-use connector latching feature allows easy installation in belly-to-belly high density installations
- Small diameter cable design:Enables proper cable management and improved airflow
- Built-in strain :relief Ensures proper bend radius control for reliable deployment
- Variety of lengths :1 to 5 meters (1 meter increments) for design flexibility and optimum airflow
Spécifications techniques
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Physical Characteristics | |
| Material Details | PVC - jacket |
| Product Color | Black |
| Color Family | Black |
| Product Material | Copper |
| General Information | |
| Product Type | Network Cable |
| Manufacturer Part Number | PQSF2PXA1MBL |
| Manufacturer Website Address | http://www.panduit.com |
| Packaged Quantity | 1 |
| Manufacturer | PANDUIT CORP |
| Product Name | QSFP28 100G Direct Attach Copper, Black, 1 meter |
| Brand Name | Panduit |
| Technical Information | |
| Cable Length | 3.3 ft (1 m) |
| Data Transfer Rate | 100 Gbit/s |
| Device Supported | Server |
| Network Device | |
| Computer | |
| Switch | |
| Features | Flame Resistant |
| Pull Tab Latch | |
| Bendable | |
| PoE | |
| Passive | |
| Latching Connector | |
| Strain Relief | |
| Cable Type | Twinaxial |
| Connector Type on First End | QSFP28 Network |
| Connector Type on Second End | QSFP28 Network |
| American Wire Gauge | 30 AWG |
| Connector on First End Details | 1 x QSFP28 Network |
| Connector on Second End Details | 1 x QSFP28 Network |
