Backup Battery Module Gives Your Compatible Eaton UPS System Extended Runtime

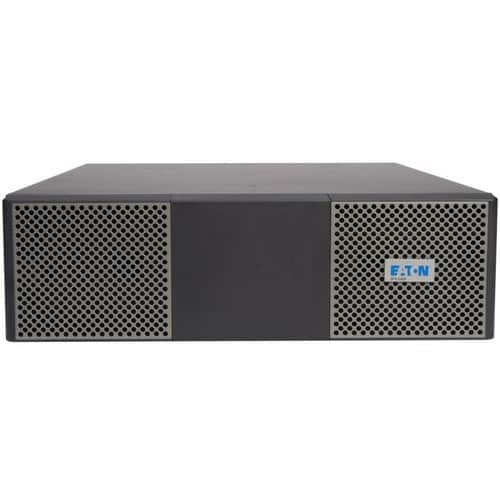

The valve regulated lead acid 9PXEBM240RT offers extended battery runtime when used in conjunction with Eaton's 9PX8KHW, 9PX8KTF5, 9PX8K, 9PX11KHW, 9PX11KTF11, 9PX11KTF11M, 9PX11KTF5 and 9PX11K 9PX UPS systems. It can also be daisy-chained for a maximum of five matching battery packs (or up to 12 with the optional SC240RT supercharger module, sold separately) to deliver even longer extended-run operation. Heavy-gauge cabling with high-current DC connectors is included for safe, simple installation.
Versatile Installation Options

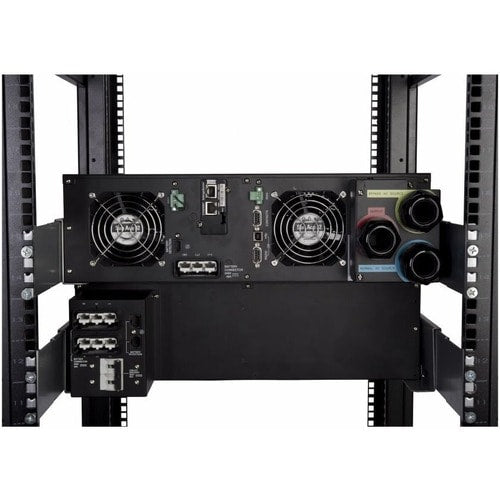

You can mount the 9PXEBM240RT in 3U of space in an EIA-standard 19-inch rack using the included 4-post rail kit. You can also adapt it for tower installation using the included support stands.
- Connects to select expandable Eaton 9PX UPS systems to add critical runtime
- Includes heavy-gauge battery cabling with high-current 240V DC connectors
- Daisy-chain connector supports additional battery packs for even longer runtime
Spécifications techniques
| Technical Information | |
| Battery Chemistry | Lead Acid |
| Output Voltage | 240 V DC |
| Miscellaneous | |
| Package Contents |
|
| Compatibility | Eaton 8kVA and 11kVA 9PX Series UPS:
|
| Country of Origin | Philippines |
| General Information | |
| Product Type | Battery Unit |
| Manufacturer Part Number | 9PXEBM240RT |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Name | Extended Battery Module (EBM) |
| Brand Name | Eaton |
| Physical Characteristics | |
| Weight (Approximate) | 143 lb (64863.71 g) |
| Form Factor | Tower/Rack Mountable |
| Rack Height | 3U |
| Height | 5.14" (130.56 mm) |
| Width | 17.30" (439.42 mm) |
| Depth | 25.40" (645.16 mm) |
