Backup Battery Module Gives Your Compatible Eaton UPS System Extended Runtime

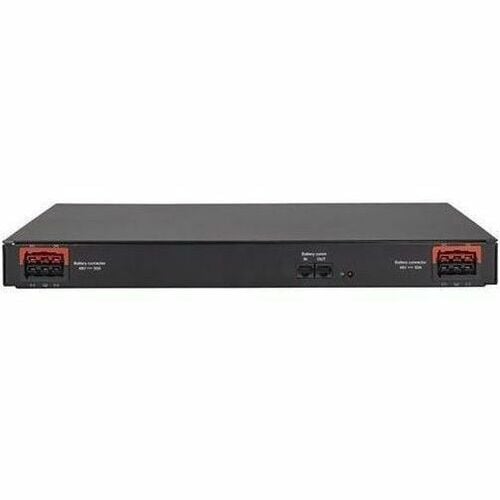

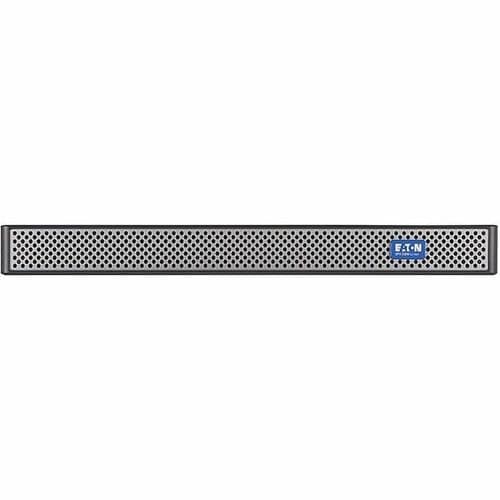

The 9PXEBM48RT-L offers extended battery runtime when used in conjunction with Eaton's 9PX1500RT-L, 9PX1500RTN-L and 9PX1500GRT-L 9PX UPS systems. It can also be daisy-chained for a maximum of four matching battery packs to deliver even longer extended-run operation. Heavy-gauge cabling with high-current DC connectors is included for safe, simple installation.
Supports 1U Rack or Tower Installation
This backup battery pack's multi-use form factor supports mounting in 1U of space in EIA-standard 19-inch open frame racks or enclosures using the included 4-post rail kit and mounting brackets. Tower stands from a compatible UPS support optional upright configuration of the battery pack.
- Connects to select expandable Eaton 9PX UPS systems for extended runtime
- Daisy-chain connector supports additional battery packs for even longer runtime
- Includes heavy-gauge cabling with high-current 48V DC connectors
- Supports 1U rack mounting or upright tower installation using included accessories
Spécifications techniques
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Technical Information | |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Hot Swappable | Yes |
| Output Voltage | 48 V DC |
| Physical Characteristics | |
| Weight (Approximate) | 36.50 lb (16556.12 g) |
| Height | 1.70" (43.18 mm) |
| Width | 17.20" (436.88 mm) |
| Depth | 17.60" (447.04 mm) |
| Miscellaneous | |
| Package Contents | |
| Compatibility | Eaton UPS: |
| Certifications & Standards | |
| Country of Origin | Philippines |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| General Information | |
| Product Type | UPS Battery Pack |
| Manufacturer Part Number | 9PXEBM48RTL |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Name | 9PX Extended Battery Module (EBM) |
| Product Series | 9PX |
| Brand Name | Eaton |
