Power Distribution
The growing complexity of IT environments, from wiring closets and server rooms to data centers of all sizes, has increased the need for reliable power distribution to the rack level. Eliminating power management issues is essential for IT and Facilities managers to maintain system availability of increasing higher density equipment. Power Distribution Units are an essential element in managing power capacity and functionality for critical network, server and data center equipment.
APC provides a wide array of power distribution solutions for your IT environment. APCs standardized PDUs are designed to increase the manageability and efficiency of your data center. Power Distribution solutions provide real-time remote load monitoring of connected equipment and individual outlet power control for remote power recycling, manage power-up or power-down sequencing of equipment. IT and Data Center Managers rely on APC PDU alarms to warn of potential power overloads before critical IT failures occur.

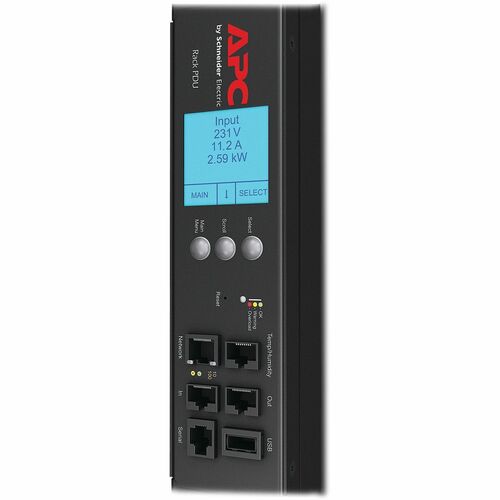

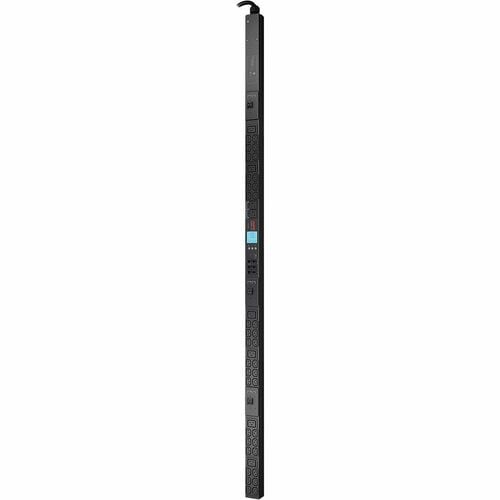

Features | Metered Rack PDU
Metered rack Power Distribution Units (PDUs) provide real-time remote monitoring of connected loads. User-defined alarms warn of potential circuit overloads before critical IT failures occur.
Keeping your eye open for unplanned overloads
APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using StruxureWare Data Center Expert, Operations, Capacity, and Energy Efficiency. New AP8000 series Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers.
- With PDUs decisions for load balancing and minimizing extra cost can be managed
- Monitor load level efficiently with PDU meter
Spécifications techniques
| Management | |
| Management |
|
| Environmental Conditions | |
| Minimum Operating Temperature | 23°F (-5°C) |
| Maximum Operating Temperature | 113°F (45°C) |
| Minimum Storage Temperature | -13°F (-25°C) |
| Maximum Storage Temperature | 149°F (65°C) |
| Minimum Operating Humidity | 5% |
| Maximum Operating Humidity | 95% |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | A7284149 |
| Manufacturer Website Address | http://www1.ca.dell.com |
| Manufacturer | Dell Technologies |
| Product Name | 44-Outlets PDU |
| Brand Name | Dell |
| Power Description | |
| Circuit Breaker | Yes |
| Input Voltage | 230 V AC |
| Output Voltage | 120 V AC |
| 208 V AC | |
| Input Current | 30 A |
| Input Frequency | 60 Hz |
| Power Rating (Watt) | 8.60 kW |
| Miscellaneous | |
| Application/Usage | IT Equipment |
| Server Rack/Cabinet | |
| Package Contents |
|
| Compatibility | Schneider APC Products:
https://www.dell.com/en-ca/shop/rack-pdu-2g-208v-24a-l21-30p-0u-vertical-rm-36xc13-6xc19-2x5-20/apd/a7284149/power-cooling-data-center-infrastructure#overview_section |
| Certifications & Standards |
|
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Battery Directive | |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
| Physical Characteristics | |
| Weight (Approximate) | 7.55 kg |
| Form Factor | Vertical |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Cord Length | 6 ft |
| Height | 70.50" (1790.70 mm) |
| Width | 2.20" (55.88 mm) |
| Depth | 1.82" (46.23 mm) |
| Mounting Orientation | Vertical |
| Product Color | Black |
| Color Family | Black |
| Technical Information | |
| Features | LCD Display |
| Protection Type | Overload Protection |
| Plug/Connector Type | NEMA L21-30P |
| Phase | Three Phase |
| Receptacle Type | NEMA 5-20R |
| IEC 60320 C19 | |
| IEC 60320 C13 | |
| Load Capacity (Watt) | 8.60 kW |
| PDU Type | Metered |
| Environmental Sensors | Temperature/Humidity |
| Locking Receptacles | IEC 60320 C19 |
| IEC 60320 C13 | |
| Receptacle Detail | 6 x IEC 60320 C19 |
| 36 x IEC 60320 C13 | |
| 2 x NEMA 5-20R | |
| Plug/Connector Detail | 1 x NEMA L21-30P |
