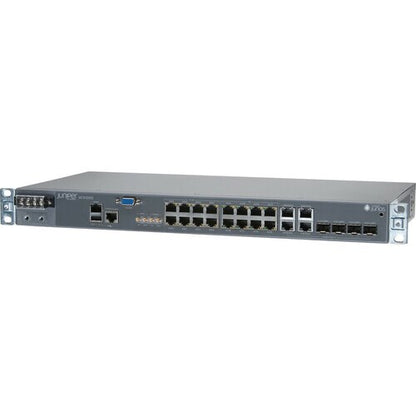

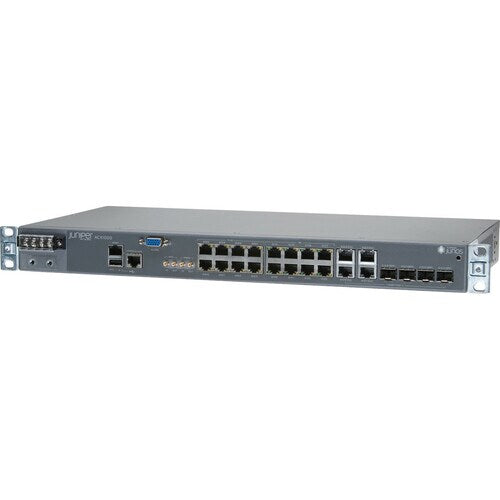

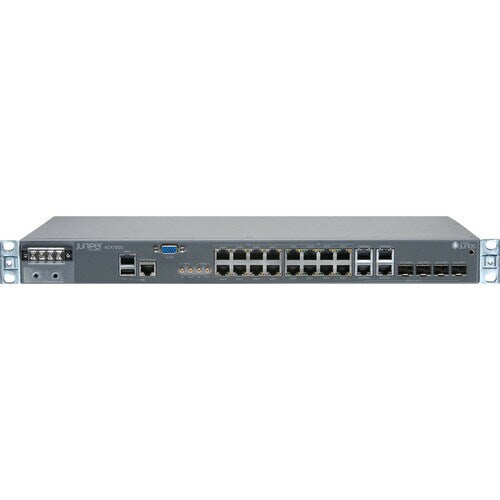

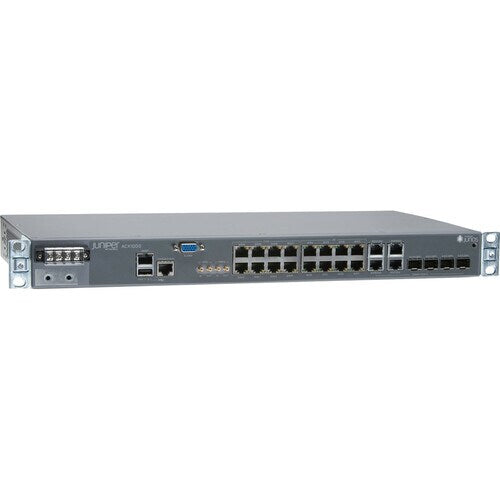

Many networks have seen benefits from convergence in the core and the edge, a similar transformation is clearly required in the access network. Universal Access is an architectural concept that achieves this objective by extending operational intelligence from the edge to access network. Juniper Networks ACX Series Universal Access Routers are purpose built to support adaptive services architecture, enabling rapid deployment of access services and transforming the network to create a seamless end-to-end service delivery platform. ACX series being a family of hardened universal access routers can be deployed in a variety of service provider use cases namely, mobile backhaul, residential and business access, as well as mission critical enterprise use cases demanding high availability operation in extreme environments such as power utilities, oil & gas, mining, transportation, defense and public safety industries.
- Create a wired network with all the PCs connected with this router and share your Internet connection as well as files while checking emails
- Offers high performance and reliable connectivity to the Internet and other offices
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Rack mounting enables you to organize wires & secure cables for professional installation
- Rack-mountable feature for convenient and safe installation of the router
- Gigabit Ethernet port for ultra-fast network speeds
- Features management port for a reliable networking
- With 10/100/1000Base-T technology, get up to 1000 mbps data transfer rate over twisted pair cable
Spécifications techniques
| Media & Performance | |
| Carrier Supported | T-carrier/E-carrier |
| I/O Expansions | |
| Expansion Slot Type | SFP (mini-GBIC) |
| Total Number of Expansion Slots | 4 |
| Network & Communication | |
| Network Technology | 10/100/1000Base-T |
| T1/E1 | |
| Ethernet Technology | Gigabit Ethernet |
| VoIP Supported | No |
| Power Description | |
| Input Voltage | 24 V DC |
| Power Source | Power Supply |
| PoE (RJ-45) Port | No |
| Redundant Power Supply Supported | No |
| Physical Characteristics | |
| Weight (Approximate) | 6.50 lb (2948.35 g) |
| Form Factor | Rack-mountable |
| Height | 1.75" (44.45 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 9.40" (238.76 mm) |
| Compatible Rack Unit | 1U |
| General Information | |
| Product Type | Router |
| Manufacturer Part Number | ACX1000-DC |
| Manufacturer Website Address | http://www.juniper.net |
| Manufacturer | Juniper Networks, Inc |
| Product Model | ACX1000 |
| Product Name | ACX1000 Universal Access Router |
| Product Series | ACX |
| Brand Name | Juniper |
| Interfaces/Ports | |
| Token Ring Port | No |
| USB | Yes |
| Number of Network (RJ-45) Ports | 12 |
| Powerline | No |
| Management Port | Yes |
| Number of RJ-48 Ports | 8 |
| Total Number of Ports | 20 |
| Serial V.35 Interface | No |
