À propos du produit

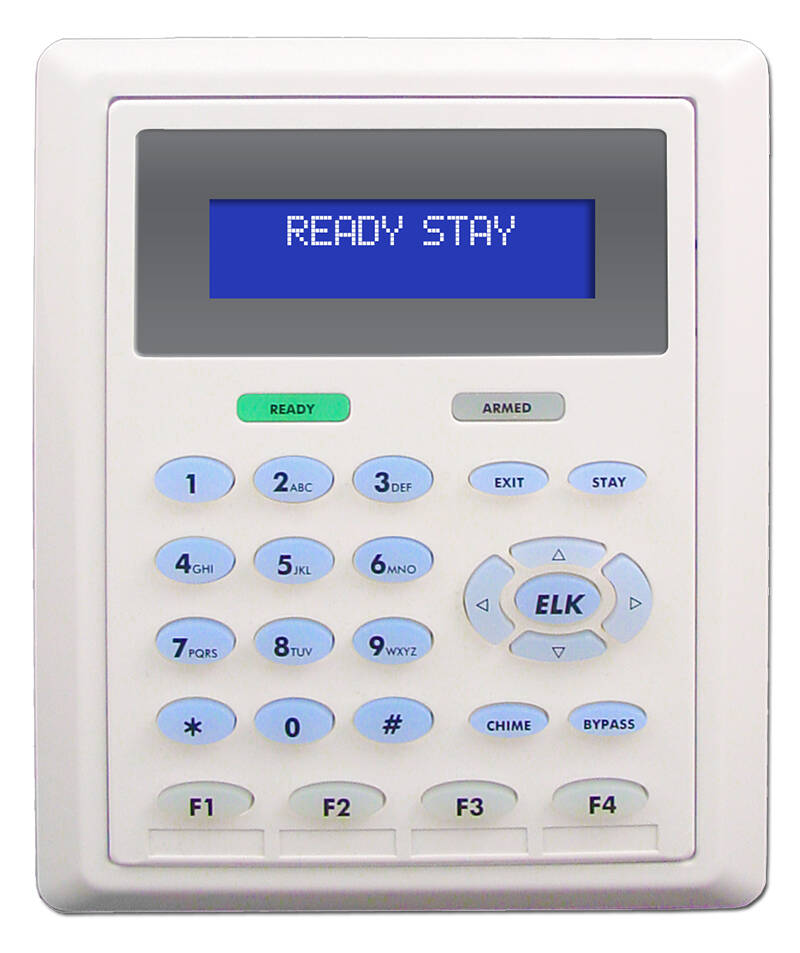

The ELK-AEKP is a low profile, addressable LCD Keypad for the E27 Alarm Engine. It features a 32 character blue/white backlighted display, blue lighted keys, 4 programmable function keys, along with the ELK menu navigation keys. It may also be recess ‘flush’ mounted using with a separately purchased back box kit (ELK-M1BBK2). The AEKP is compatible with “external” 26 bit Wiegand compatible proximity readers, allowing cards or fobs to be used for arming, disarming, or limited door strike control, etc.
Elk Alarm Engine Low Profile Keypad Features:
- Blue/white Backlighted Hi-Contrast LCD Display
- Four (4) Programmable Function Keys
- Unique Menu Navigation/Direction Keys
- Operates from the E27 RS-485 Data Bus
- Built-in Piezo Sounder with adjustable pitch
- Accepts ""External"" 26 bit Wiegand Prox Reader (Optional)
- Input for 1 Supervised Zone
- One Programmable ""Switched Positive"" Voltage Output
- Exit, Stay, Chime, and Bypass Keys
- Surface mounts to a standard 1 or 2 gang electrical box
- Optional recess 'flush' mount kit available (ELK-M1BBK2)
Elk Alarm Engine Low Profile Keypad Specifications:
- Connection: 6 Pin Plug-in ""Flying Lead"" Connector (Included)
- Color: White
- Operating Voltage: 13.8 VDC
- Current Draw: ~30 mA Idle (low back light level, sounder silent)
~85mA Fully Active (max. back light & sounder active) - Size: 4.658"" W x 5.5"" H x .95"" D (.375"" D with recess mount)
Spécifications techniques
The ELK-AEKP is a low profile, addressable LCD Keypad for the E27 Alarm Engine. It features a 32 character blue/white backlighted display, blue lighted keys, 4 programmable function keys, along with the ELK menu navigation keys. It may also be recess ‘flush’ mounted using with a separately purchased back box kit (ELK-M1BBK2). The AEKP is compatible with “external” 26 bit Wiegand compatible proximity readers, allowing cards or fobs to be used for arming, disarming, or limited door strike control, etc.
Elk Alarm Engine Low Profile Keypad Features:
- Blue/white Backlighted Hi-Contrast LCD Display
- Four (4) Programmable Function Keys
- Unique Menu Navigation/Direction Keys
- Operates from the E27 RS-485 Data Bus
- Built-in Piezo Sounder with adjustable pitch
- Accepts ""External"" 26 bit Wiegand Prox Reader (Optional)
- Input for 1 Supervised Zone
- One Programmable ""Switched Positive"" Voltage Output
- Exit, Stay, Chime, and Bypass Keys
- Surface mounts to a standard 1 or 2 gang electrical box
- Optional recess 'flush' mount kit available (ELK-M1BBK2)
Elk Alarm Engine Low Profile Keypad Specifications:
- Connection: 6 Pin Plug-in ""Flying Lead"" Connector (Included)
- Color: White
- Operating Voltage: 13.8 VDC
- Current Draw: ~30 mA Idle (low back light level, sounder silent)
~85mA Fully Active (max. back light & sounder active) - Size: 4.658"" W x 5.5"" H x .95"" D (.375"" D with recess mount)
