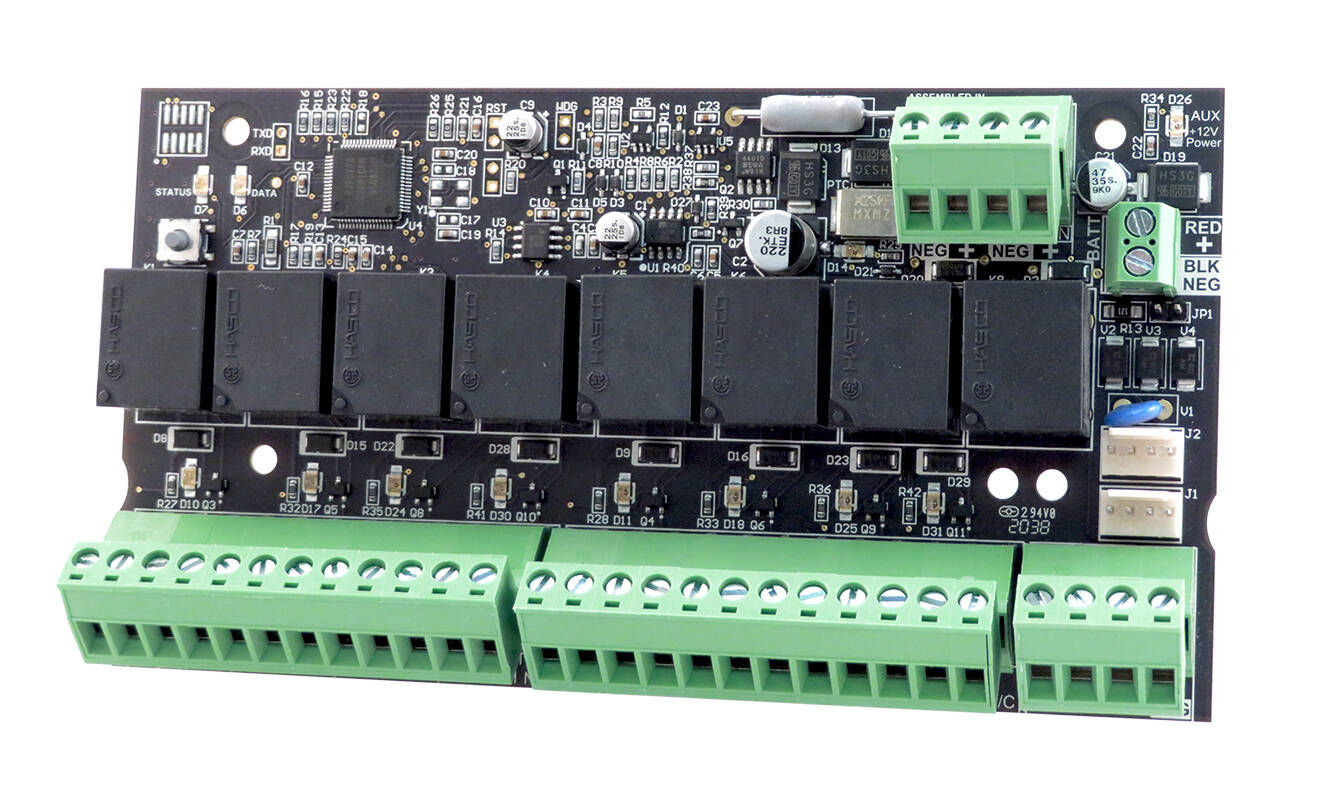

Adds 8 relays to the E27 Alarm Engine. Operates from 4-wire data bus. Up to 3 of these can be used, increasing total ouptuts to 32. Features DC power & battery connectors, allowing easy connection of remote power source/backup battery.
Elk Alarm Engine Output Expander Features:
- 8 Form ""C"" Relay Outputs
- DC power & battery connections
- Operates on the 4-Wire Data Bus
- Plug-In Terminal Strips
- Status and Diagnostic LED
- On-Board EOL Bus Termination Jumper
- Vertical Mounting using ELK-SWG Glides(included)
Elk Alarm Engine Output Expander Specifications:
- Relay Outputs: Plug-In Terminals with Elevator Style Wire Clamps and Screws
- Relay Contact Rating: 7Amps @28VDC, 10Amps @125VAC
- Operating Power Range: 12 VDC
- Current Draw: 35 mA Nom, 330mA Max
- Size: 6"" x 3.25"" x 1"" H
Spécifications techniques
Adds 8 relays to the E27 Alarm Engine. Operates from 4-wire data bus. Up to 3 of these can be used, increasing total ouptuts to 32. Features DC power & battery connectors, allowing easy connection of remote power source/backup battery.
Elk Alarm Engine Output Expander Features:
- 8 Form ""C"" Relay Outputs
- DC power & battery connections
- Operates on the 4-Wire Data Bus
- Plug-In Terminal Strips
- Status and Diagnostic LED
- On-Board EOL Bus Termination Jumper
- Vertical Mounting using ELK-SWG Glides(included)
Elk Alarm Engine Output Expander Specifications:
- Relay Outputs: Plug-In Terminals with Elevator Style Wire Clamps and Screws
- Relay Contact Rating: 7Amps @28VDC, 10Amps @125VAC
- Operating Power Range: 12 VDC
- Current Draw: 35 mA Nom, 330mA Max
- Size: 6"" x 3.25"" x 1"" H
