À propos du produit

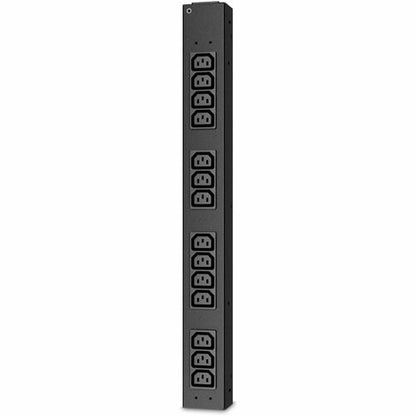

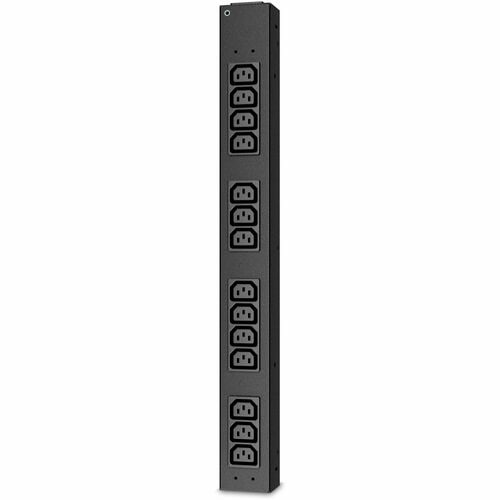

It is a basic rack PDU with a Zero U vertical mounting design. It supports a maximum input current of 20A and operates at 100-240V. The PDU features 14 IEC 60320 C13 outlets, providing ample connections for IT equipment. It includes an IEC 60320 C20 plug. The unit is designed for reliable power distribution and includes an installation guide and safety guide.
- With PDUs decisions for load balancing and minimizing extra cost can be managed
- Basic PDU deliver power to wiring closets, server rooms & equipment racks in a cost-effective way
Spécifications techniques
| Warranty | |
| Additional Warranty Information | 2 years repair or replace |
| Technical Information | |
| Plug/Connector Type | IEC 60320 C20 |
| Receptacle Type | IEC 60320 C13 |
| PDU Type | Basic |
| Receptacle Detail | 14 x IEC 60320 C13 |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | AP6003A |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Manufacturer | Schneider Electric SA |
| Product Model | AP6003A |
| Product Name | Basic AP6003A 14-Outlet PDU |
| Product Series | Basic |
| Brand Name | APC by Schneider Electric |
| Power Description | |
| Input Voltage | 230 V |
| Output Voltage | 240 V AC |
| 230 V AC | |
| 208 V AC | |
| 200 V AC | |
| 120 V AC | |
| 100 V AC | |
| Input Current | 16 A |
| Physical Characteristics | |
| Weight (Approximate) | 4.14 lb (1877.87 g) |
| Form Factor | Tower |
| Rack Height | 0U |
| Placement | Side |
| Height | 20.59" (523 mm) |
| Width | 2.20" (56 mm) |
| Depth | 1.85" (47 mm) |
| Mounting Orientation | Vertical |
| Mounting Preference | Lower |
| Miscellaneous | |
| Package Contents | |
| Certifications & Standards | cUL Listed|UL Listed |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| For Country/Region | United States |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=458562831&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=458562831&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512009_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512009_EN |
| REACH free of SVHC | Yes |
| Lead Free | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
