À propos du produit

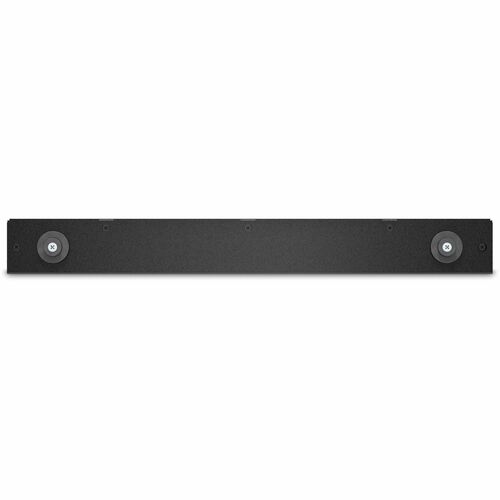

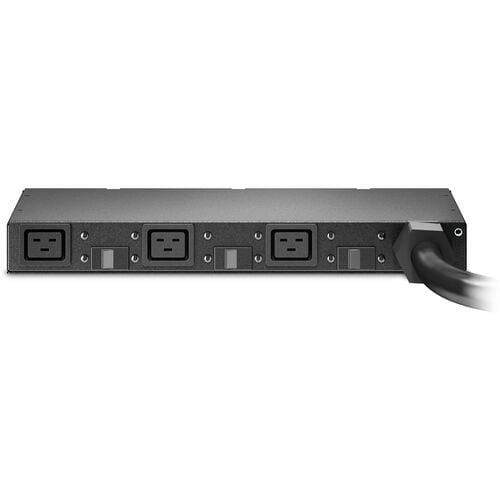

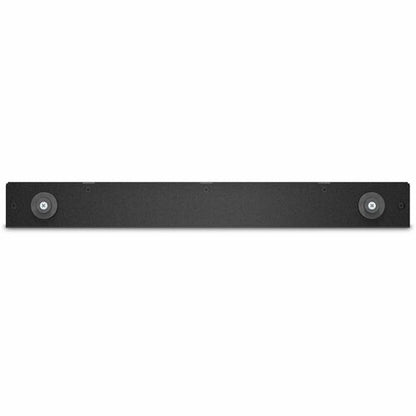

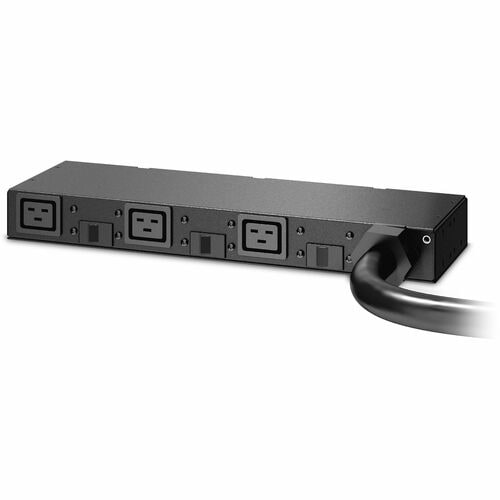

Reliable rack power distribution
- Provide circuit protection and easy configuration for trouble-free access
- With basic PDU it becomes the easiest way to distribute facility UPS or generator power to multiple rack loads
Spécifications techniques
| Warranty | |
| Additional Warranty Information | 2 years repair or replace |
| Power Description | |
| Input Voltage | 208 V |
| 200 V | |
| Output Voltage | 230 V AC |
| Input Current | 30 A |
| Power Rating (Watt) | 8.60 kW |
| Technical Information | |
| Protection Type | Overcurrent Protection |
| Plug/Connector Type | NEMA L15-30P |
| Receptacle Type | IEC 60320 C19 |
| PDU Type | Basic |
| Receptacle Detail | 3 x IEC 60320 C19 |
| Plug/Connector Detail | 1 x NEMA L15-30P |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | AP6037A |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Manufacturer | Schneider Electric SA |
| Product Model | AP6037A |
| Product Name | Basic Rack PDU AP6037A |
| Product Series | Basic |
| Brand Name | APC by Schneider Electric |
| Physical Characteristics | |
| Weight (Approximate) | 7.94 lb (3601.52 g) |
| Form Factor | Tower |
| Mount Type | Rack-mountable |
| Rack Height | 1U |
| Placement | Front |
| Cord Length | 12 ft (3.66 m) |
| Height | 1.73" (44 mm) |
| Width | 15.28" (388 mm) |
| Depth | 4.96" (126 mm) |
| Mounting Orientation | Horizontal |
| Mounting Preference | No Preference |
| Miscellaneous | |
| Package Contents | |
| Certifications & Standards | cUL Listed|UL Listed |
| Environmentally Friendly | Yes |
| Mercury Free | Yes |
| For Country/Region | United States |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP6037A_ROHS_DECLARATION&p_FileName=AP6037AKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=458562838&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=458562838&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512009_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512009_EN |
| REACH free of SVHC | Yes |
| Toxic Heavy Metal Free | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
