À propos du produit

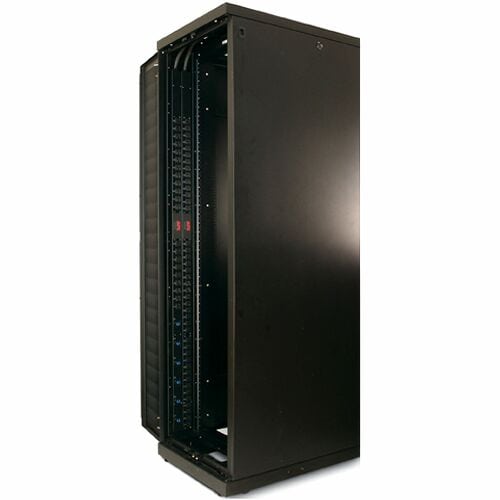

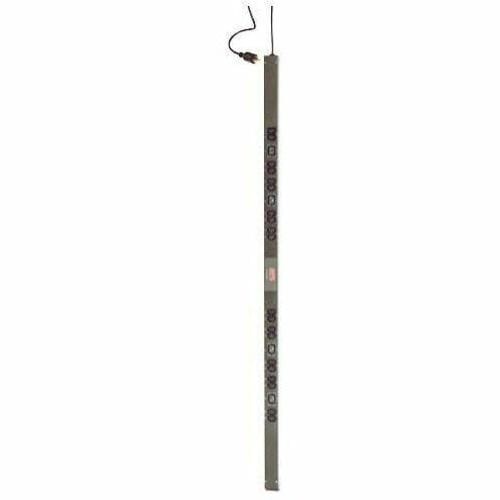

It is a basic rack PDU with a Zero U vertical mounting design. It supports a maximum input current of 20A and operates at 208V. The PDU features 20 IEC 60320 C13 outlets and 4 IEC 60320 C19 outlets, providing flexibility for connecting various IT equipment. It includes a 10-foot power cord with a NEMA L6-20P plug. The unit is designed for reliable power distribution and includes an installation guide, rack mounting brackets, and a toolless mounting kit.
- PDU distributes AC power to multiple servers and balances the load on the servers
- With basic PDU it becomes the easiest way to distribute facility UPS or generator power to multiple rack loads
Spécifications techniques
| Warranty | |
| Additional Warranty Information | 2 years repair or replace |
| Parts Warranty/Labor | 2 Year |
| Power Description | |
| Input Voltage | 200 V |
| 208 V | |
| 230 V | |
| Output Voltage | 208 V AC |
| Power Rating (VA) | 4.16 kVA |
| Technical Information | |
| Plug/Connector Type | NEMA L6-20P |
| Receptacle Type | IEC 60320 C13 |
| IEC 60320 C19 | |
| PDU Type | Basic |
| Receptacle Detail | 20 x IEC 60320 C13 |
| 4 x IEC 60320 C19 | |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | AP7540 |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Packaged Quantity | 1 Each |
| Manufacturer | Schneider Electric SA |
| Product Name | Basic Rack 4160VA PDU |
| Product Line | Basic Rack |
| Brand Name | APC by Schneider Electric |
| Physical Characteristics | |
| Weight (Approximate) | 10.71 lb (4857.97 g) |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Placement | Side |
| Cord Length | 10 ft (3.05 m) |
| Height | 63.74" (1619 mm) |
| Width | 2.20" (56 mm) |
| Depth | 1.73" (44 mm) |
| Mounting Orientation | Vertical |
| Product Color | Black |
| Color Family | Black |
| Mounting Preference | No Preference |
| Miscellaneous | |
| Package Contents | |
| Certifications & Standards | cUL Listed|UL Listed |
| Environmentally Friendly | Yes |
| For Country/Region | United States |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=759088&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=759088&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512009_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512009_EN |
| REACH free of SVHC | Yes |
| Lead Free | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
