Unité de distribution d'alimentation (PDU) APC Basic Rack 14,4 kW : 2 x NEMA L6-30R, 4 x IEC 320-C19, 24 x IEC
Unité de distribution d'alimentation (PDU) APC Basic Rack 14,4 kW : 2 x NEMA L6-30R, 4 x IEC 320-C19, 24 x IEC

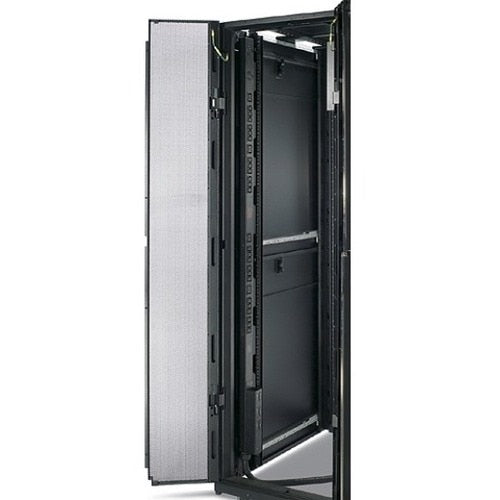

- Alimentation électrique installée sur des racks d'ordinateurs et d'équipements réseau dans un centre de données
- Grâce aux PDU, les décisions d'équilibrage de charge et de minimisation des coûts supplémentaires peuvent être gérées
- Les PDU de base fournissent de l'énergie aux armoires de câblage, aux salles de serveurs et aux racks d'équipement de manière rentable
Bloc de texte
Impossible de charger la disponibilité du service de retrait
Remise sur volume disponible - Demandez un devis.
Afficher tous les détails




Recently Viewed
Unité de distribution d'alimentation (PDU) APC Basic Rack 14,4 kW : 2 x NEMA L6-30R, 4 x IEC 320-C19, 24 x IEC
Résumé des informations sur le produit

À propos du produit

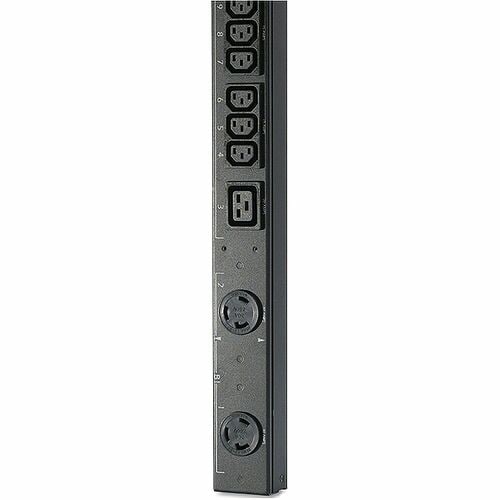

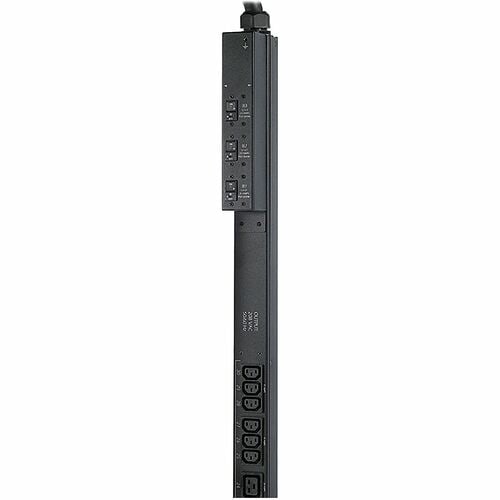

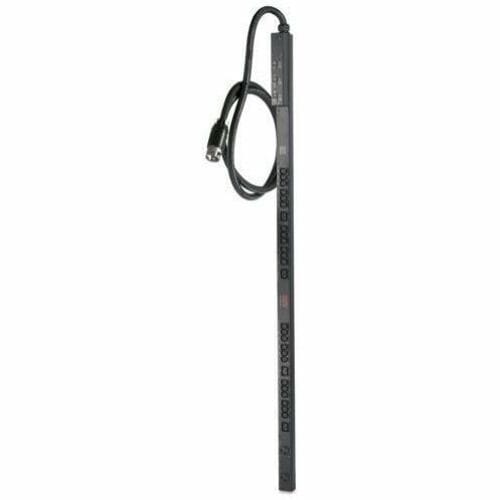

It is a basic rack PDU with a Zero U vertical mounting design. It supports a maximum input current of 50A and operates at 208V. The PDU features 24 IEC 60320 C13, 4 IEC 60320 C19, and 2 NEMA L6-30R outlets, providing flexibility for connecting various IT equipment. It includes a 10-foot power cord with a CS8365 plug. The unit is designed for reliable power distribution and includes cord retention brackets, an installation guide, and a toolless mounting kit.
- Electric power fitted to racks of computers and networking equipment within a data center
- With PDUs decisions for load balancing and minimizing extra cost can be managed
- Basic PDU deliver power to wiring closets, server rooms & equipment racks in a cost-effective way
- With basic PDU it becomes the easiest way to distribute facility UPS or generator power to multiple rack loads
Spécifications techniques
Warranty | |
Additional Warranty Information | 2 years repair or replace |
Power Description | |
Input Voltage | 208 V |
Output Voltage | 208 V AC |
Power Rating (VA) | 14.40 kVA |
General Information | |
Product Type | PDU |
Manufacturer Part Number | AP7599 |
Manufacturer Website Address | http://www.schneider-electric.com |
Manufacturer | Schneider Electric SA |
Product Name | Basic Rack 14.4kW PDU |
Product Line | Basic Rack |
Brand Name | APC by Schneider Electric |
Technical Information | |

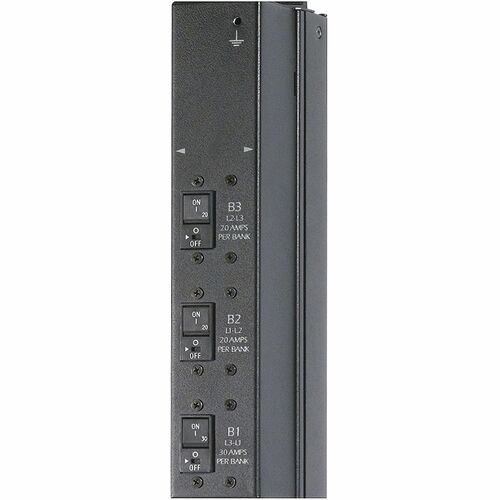

Protection Type | Overload Protection |
Plug/Connector Type | Hubbell CS8365C |
Receptacle Type | NEMA L6-30R |
IEC 60320 C13 | |
IEC 60320 C19 | |
PDU Type | Basic |
Receptacle Detail | 4 x IEC 60320 C19 |
2 x NEMA L6-30R | |
24 x IEC 60320 C13 | |
Physical Characteristics | |
Weight (Approximate) | 21.74 lb (9861.10 g) |
Mount Type | Rack-mountable |
Rack Height | 0U |
Placement | Side |
Cord Length | 10 ft (3.05 m) |
Height | 70" (1778 mm) |
Width | 2.20" (56 mm) |
Depth | 3.74" (95 mm) |
Mounting Orientation | Vertical |
Product Color | Black |
Color Family | Black |
Mounting Preference | No Preference |
Miscellaneous | |
Additional Information |
|
Package Contents | |
Certifications & Standards | cUL Listed|CSA|METI Denan|UL Listed |
Environmentally Friendly | Yes |
For Country/Region | United States |
Optimized Energy Efficiency | Yes |
Product Take Back Program | Yes |
REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=759146&lang=en-us |
EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=759146&lang=en-us |
Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512009_EN |
End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512009_EN |
REACH free of SVHC | Yes |
Lead Free | Yes |
Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
