À propos du produit

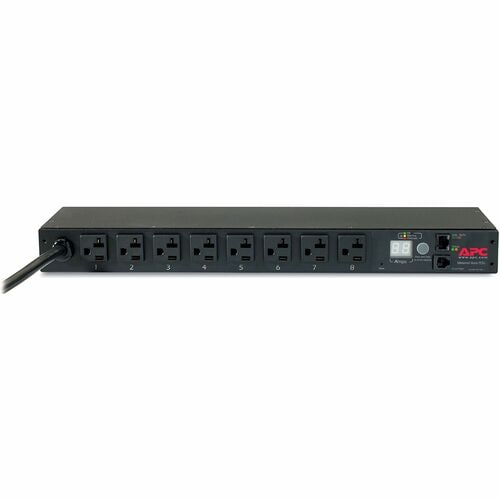

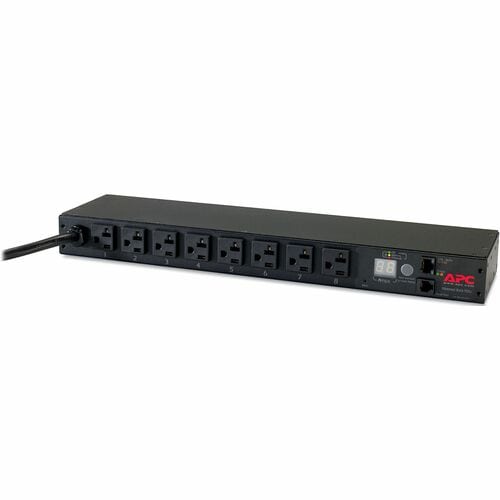

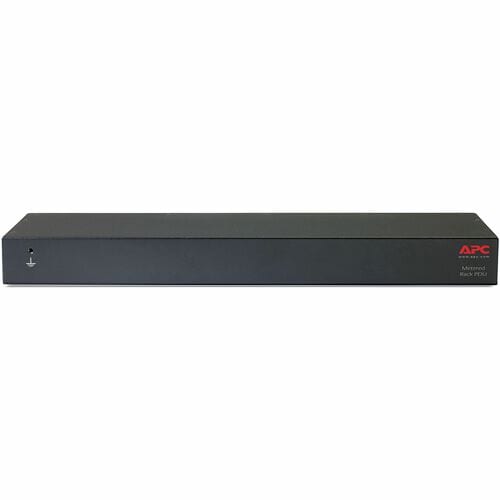

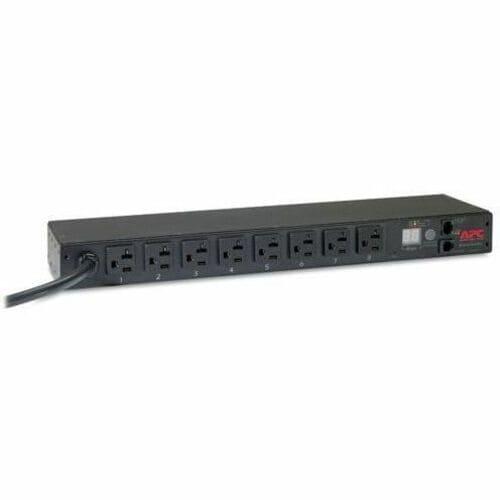

Il s'agit d'une unité de distribution d'alimentation (PDU) en rack avec compteur, conçue pour un montage horizontal 1U. Elle supporte un courant maximal de 20 A et fonctionne à 120 V. Elle est équipée de 8 prises NEMA 5-20R et d'un cordon d'alimentation de 3,6 m avec fiche NEMA L5-20P. D'une capacité de charge de 1920 VA, elle est fournie avec un support de fixation du cordon, un guide d'installation et des supports de montage en rack.
Spécifications techniques
| Warranty | |
| Additional Warranty Information | 2 years repair or replace |
| Technical Information | |
| Plug/Connector Type | NEMA L5-20P |
| Receptacle Type | NEMA 5-20R |
| PDU Type | Metered |
| Receptacle Detail | 8 x NEMA 5-20R |
| Power Description | |
| Input Voltage | 100 V |
| 120 V | |
| Output Voltage | 120 V AC |
| Input Current | 20 A |
| Power Rating (VA) | 1.92 kVA |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | AP7801B |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Manufacturer | Schneider Electric SA |
| Product Name | Rack PDU, Metered, 1U, 20A, 120V, (8) 5-20 |
| Brand Name | APC by Schneider Electric |
| Physical Characteristics | |
| Weight (Approximate) | 3.81 lb (1728.19 g) |
| Mount Type | Rack-mountable |
| Rack Height | 1U |
| Placement | Front |
| Rear | |
| Cord Length | 12 ft (3.66 m) |
| Height | 1.73" (44 mm) |
| Width | 17.48" (444 mm) |
| Depth | 4.02" (102 mm) |
| Mounting Orientation | Horizontal |
| Mounting Preference | No Preference |
| Miscellaneous | |
| Package Contents | |
| Certifications & Standards | cUL Listed|CSA|UL Listed |
| Environmentally Friendly | Yes |
| Mercury Free | Yes |
| For Country/Region | United States |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP7801B_ROHS_DECLARATION&p_FileName=AP7801BKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=465899650&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=465899650&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512009_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512009_EN |
| REACH free of SVHC | Yes |
| Lead Free | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
