À propos du produit

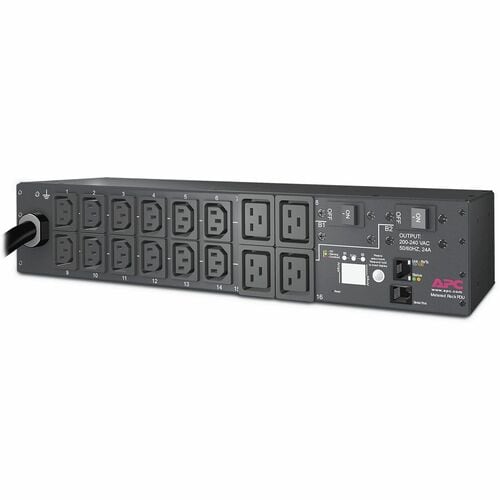

APC Metered Rack PDUs distribute reliable rack power distribution via a single input with multiple output receptacles AP7811B offers real-time remote monitoring and user-defined alarms which helps prevent potential circuit overloads that can cause accidental power loss to critical equipment Easily access, configure, and monitor this metered PDU from remote locations A network management interface provides standards-based management via Web, SNMP, and Command Line Interface This Metered PDU from APC provides (12) IEC C13 and (4) IEC C19 outlets to supply power to rack equipment Active current measurements (amps), User-customizable alarms and warnings and Embedded log memory to record/review/report historic data to local user An environmental monitoring port for external temperature/humidity monitoring is available (sensor sold separately model AP9335T or AP9335TH) Easy to mount this Horizontal PDU in racks or enclosures and occupies 2U of rack Space Packaging Includes PDU, Installation guide, Rack mounting brackets, Safety guide, Serial configuration cable
Spécifications techniques
| Warranty | |
| Additional Warranty Information | 2 years repair or replace |
| Power Description | |
| Input Voltage | 230 V |
| 200 V | |
| 208 V | |
| Output Voltage | 208 V AC |
| Input Current | 30 A |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | AP7811B |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Manufacturer | Schneider Electric SA |
| Product Name | Rack PDU, Metered, 2U, 30A, 208V, (12) C13s & (4) C19 |
| Product Line | Metered Rack |
| Brand Name | APC by Schneider Electric |
| Technical Information | |
| Plug/Connector Type | NEMA L6-30P |
| Receptacle Type | IEC 60320 C13 |
| IEC 60320 C19 | |
| PDU Type | Metered |
| Receptacle Detail | 4 x IEC 60320 C19 |
| 12 x IEC 60320 C13 | |
| Plug/Connector Detail | 1 |
| Physical Characteristics | |
| Weight (Approximate) | 7.41 lb (3361.12 g) |
| Mount Type | Rack-mountable |
| Rack Height | 2U |
| Placement | Front |
| Rear | |
| Cord Length | 12 ft (3.66 m) |
| Height | 3.46" (88 mm) |
| Width | 17.48" (444 mm) |
| Depth | 4.41" (112 mm) |
| Mounting Orientation | Horizontal |
| Mounting Preference | No Preference |
| Miscellaneous | |
| Package Contents | |
| Certifications & Standards | cUL Listed|CSA|PSE|UL Listed |
| Environmentally Friendly | Yes |
| Mercury Free | Yes |
| For Country/Region | United States |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP7811B_ROHS_DECLARATION&p_FileName=AP7811BKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=458562847&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=458562847&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1712014_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1712014_EN |
| REACH free of SVHC | Yes |
| Lead Free | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
