À propos du produit

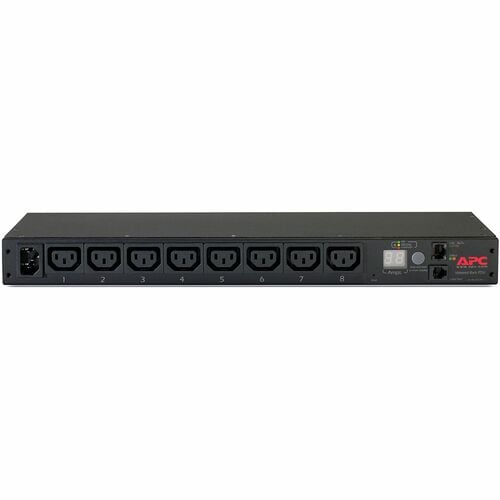

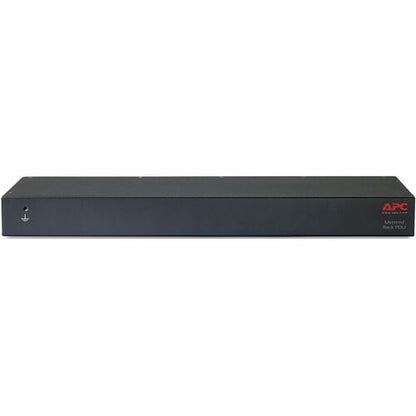

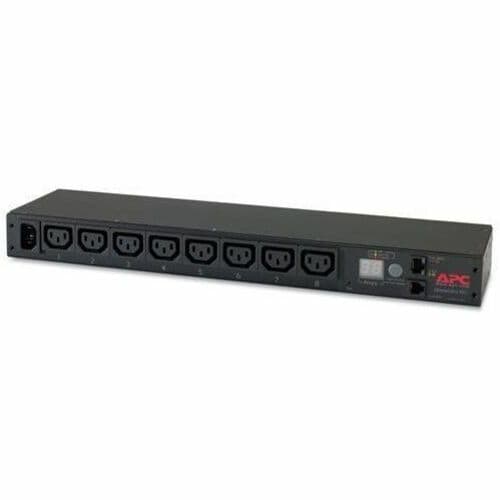

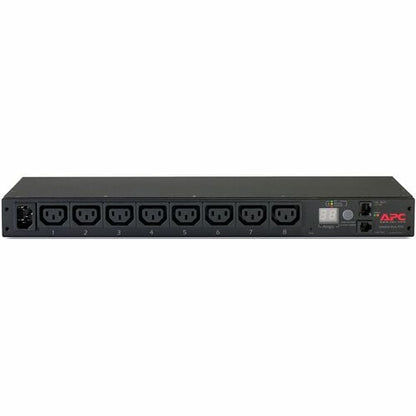

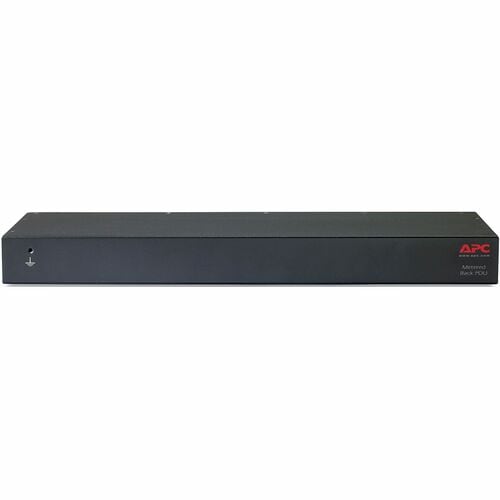

It is a metered rack PDU designed for 1U horizontal mounting. It supports a maximum current of 12A at 208V and 10A at 230V. The PDU features 8 IEC 60320 C13 outlets and a 6.5-foot power cord with an IEC 60320 C14 plug. It has a load capacity of 2300 VA and includes a cord retention bracket, installation guide, and rack mounting brackets.
- PDU provides active metering enabling energy optimization and circuit protection
- PDU provides power control as remote controlled relay & load monitoring
- Metered PDU offers reliable, rack-mount and multi-outlet power source
Spécifications techniques
| Warranty | |
| Additional Warranty Information | 2 years repair or replace |
| Technical Information | |
| Plug/Connector Type | IEC 60320 C14 |
| PDU Type | Metered |
| Power Description | |
| Input Voltage | 200 V |
| 208 V | |
| 230 V | |
| Output Voltage | 230 V AC |
| 208 V AC | |
| Input Current | 15 A |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | AP7820B |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Manufacturer | Schneider Electric SA |
| Product Name | Rack PDU, Metered, 1U, 12A/208V, 10A/230V, (8) C13 |
| Product Line | NetShelter |
| Product Series | Metered |
| Brand Name | APC by Schneider Electric |
| Physical Characteristics | |
| Weight (Approximate) | 3.81 lb (1728.19 g) |
| Mount Type | Rack-mountable |
| Rack Height | 1U |
| Placement | Front |
| Rear | |
| Cord Length | 6.5 ft (1.98 m) |
| Height | 1.73" (44 mm) |
| Width | 17.48" (444 mm) |
| Depth | 4.02" (102 mm) |
| Mounting Orientation | Horizontal |
| Mounting Preference | No Preference |
| Miscellaneous | |
| Package Contents | |
| Certifications & Standards | cUL Listed|C-tick|CE|CSA|GOST|UL Listed|VDE|VCCI |
| Environmentally Friendly | Yes |
| Mercury Free | Yes |
| For Country/Region | United States |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP7820B_ROHS_DECLARATION&p_FileName=AP7820BKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=465899671&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=465899671&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512009_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512009_EN |
| REACH free of SVHC | Yes |
| Lead Free | Yes |
| California Proposition 65 Warning | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
