À propos du produit

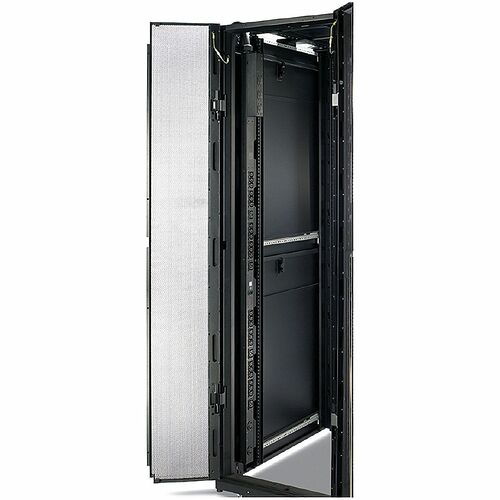

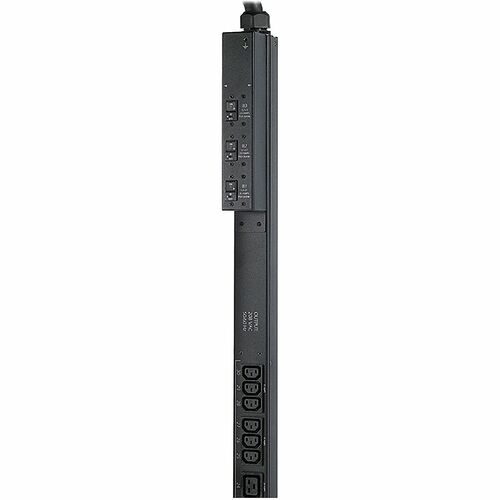

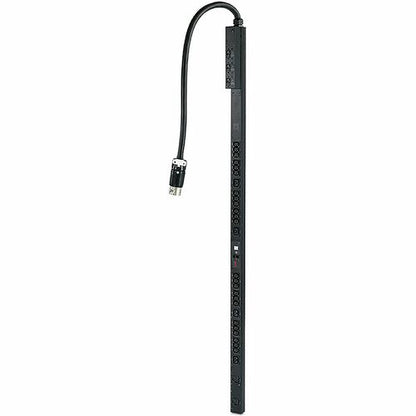

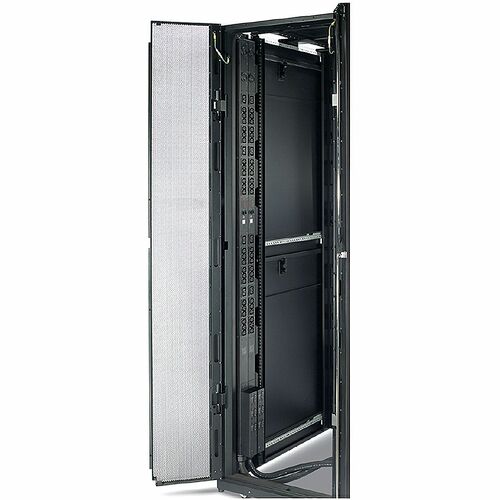

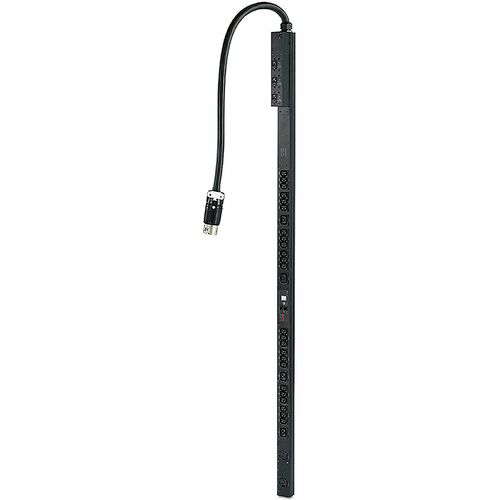

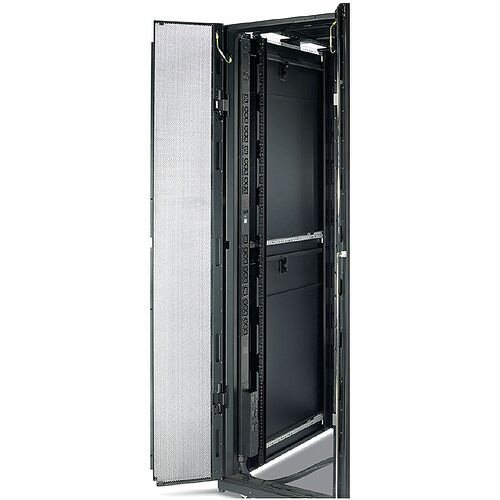

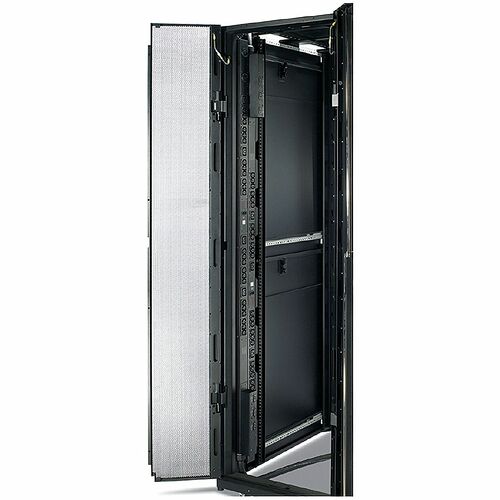

It is a metered rack PDU designed for Zero U vertical mounting. It supports a maximum current of 40A and operates at 208V. The PDU features 24 IEC 60320 C13, 4 IEC 60320 C19, and 2 NEMA L6-30R outlets. It has a load capacity of 14400 VA and includes a cord retention bracket, installation guide, and rack mounting brackets.
- PDU is reliable for power protection and management solutions
- Metered PDU offers reliable, rack-mount and multi-outlet power source
- You can always avoid potential overloads with PDU meter
Spécifications techniques
| Warranty | |
| Additional Warranty Information | 2 years repair or replace |
| Power Description | |
| Input Voltage | 208 V |
| Output Voltage | 208 V AC |
| Input Current | 50 A |
| Power Rating (Watt) | 14.40 kW |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | AP7869B |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Manufacturer | Schneider Electric SA |
| Product Name | 30-Outlets PDU |
| Brand Name | Schneider Electric |
| Physical Characteristics | |
| Weight (Approximate) | 22.84 lb (10360.05 g) |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Placement | Side |
| Cord Length | 3 ft (0.91 m) |
| Height | 70" (1778 mm) |
| Width | 2.20" (56 mm) |
| Depth | 3.74" (95 mm) |
| Mounting Orientation | Vertical |
| Mounting Preference | No Preference |
| Technical Information | |

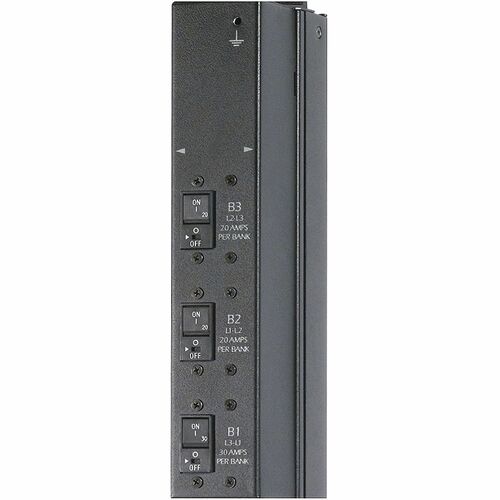

| Protection Type | Overload Protection |
| Plug/Connector Type | CS8365 |
| Phase | Three Phase |
| Receptacle Type | NEMA L6-30R |
| IEC 60320 C13 | |
| IEC 60320 C19 | |
| PDU Type | Metered |

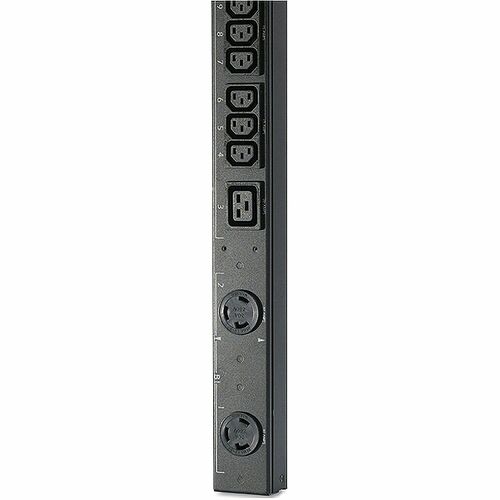

| Receptacle Detail | 24 x IEC 60320 C13 |
| 2 x NEMA L6-30R | |
| 4 x IEC 60320 C19 | |
| Plug/Connector Detail | 1 x CS8365 |
| Miscellaneous | |
| Package Contents | |
| Certifications & Standards | cUL Listed|CSA|Industry Canada|METI Denan|UL Listed |
| Environmentally Friendly | Yes |
| Mercury Free | Yes |
| For Country/Region | United States |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP7869B_ROHS_DECLARATION&p_FileName=AP7869BKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=465899685&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=465899685&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512009_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512009_EN |
| REACH free of SVHC | Yes |
| Lead Free | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
