À propos du produit

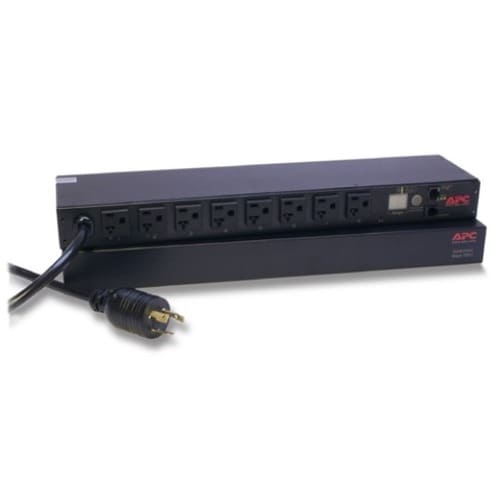

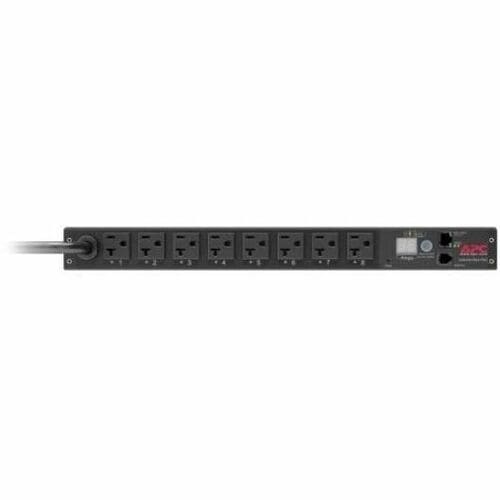

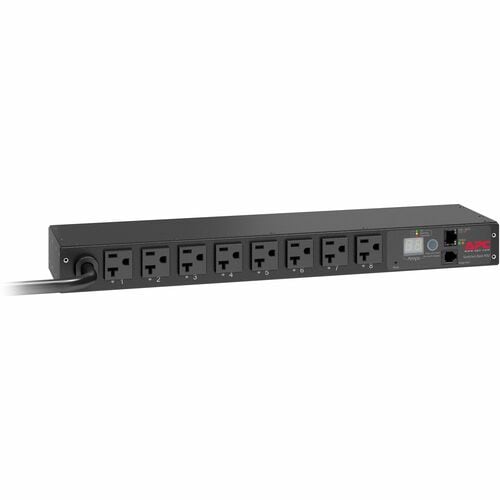

It is a switched rack PDU with a maximum current capacity of 20A and an input voltage of 120V. It features 8 NEMA 5-20R outlets and a NEMA L5-20P input connection. The PDU has a 1U form factor and a cord length of 12 feet. It supports remote monitoring and user-defined alarms, with outlet-level on/off switching capabilities. The unit is UL Listed and CSA certified, ensuring high safety and performance standards.
Spécifications techniques
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Warranty | |
| Additional Warranty Information | 2 years repair or replace |
| Power Description | |
| Input Voltage | 100 V |
| 120 V | |
| Output Voltage | 120 V AC |
| Input Current | 20 A |
| Power Rating (VA) | 2.40 kVA |
| Technical Information | |
| Plug/Connector Type | NEMA L5-20P |
| Receptacle Type | NEMA 5-20R |
| PDU Type | Switched |
| Receptacle Detail | 8 x NEMA 5-20R |
| Plug/Connector Detail | 1 x NEMA L5-20P |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | AP7901B |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Manufacturer | Schneider Electric SA |
| Product Name | Rack PDU, Switched, 1U, 20A, 120V, (8)5-20 |
| Brand Name | APC by Schneider Electric |
| Physical Characteristics | |
| Weight (Approximate) | 5 lb (2267.96 g) |
| Mount Type | Rack-mountable |
| Rack Height | 1U |
| Placement | Rear |
| Front | |
| Cord Length | 12 ft (3.66 m) |
| Height | 1.73" (44 mm) |
| Width | 17.52" (445 mm) |
| Depth | 4.25" (108 mm) |
| Mounting Orientation | Horizontal |
| Mounting Preference | No Preference |
| Miscellaneous | |
| Package Contents | |
| Certifications & Standards | cUL Listed|CSA|Industry Canada|UL Listed |
| Environmentally Friendly | Yes |
| Mercury Free | Yes |
| For Country/Region | United States |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP7901B_ROHS_DECLARATION&p_FileName=AP7901BKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=465899699&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=465899699&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612033_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612033_EN |
| REACH free of SVHC | Yes |
| Lead Free | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
