À propos du produit

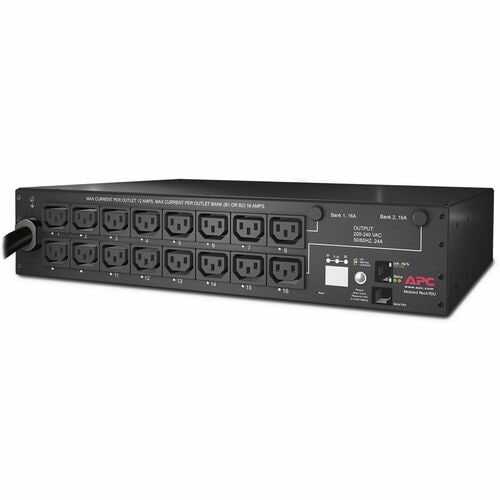

It is a switched rack PDU with a maximum current capacity of 30A and an input voltage of 208V. It includes 16 IEC C13 outlets and a NEMA L6-30P input connection. The PDU has a 2U form factor and a cord length of 12 feet. It supports remote monitoring and user-defined alarms, with outlet-level on/off switching capabilities. The unit is UL Listed and CSA certified, ensuring high safety and performance standards.
Spécifications techniques
| Warranty | |
| Additional Warranty Information | 2 years repair or replace |
| Technical Information | |
| Plug/Connector Type | NEMA L6-30P |
| Receptacle Type | IEC 60320 C13 |
| PDU Type | Switched |
| Receptacle Detail | 16 x IEC 60320 C13 |
| Plug/Connector Detail | 1 x NEMA L6-30P |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | AP7911B |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Manufacturer | Schneider Electric SA |
| Product Name | Rack PDU, Switched, 2U, 30A, 208V, (16)C13 |
| Brand Name | APC by Schneider Electric |
| Power Description | |
| Input Voltage | 230 V |
| 200 V | |
| 208 V | |
| Output Voltage | 208 V AC |
| Input Current | 30 A |
| Input Voltage Range | 200 V AC - 230 V AC |
| Physical Characteristics | |
| Weight (Approximate) | 13.93 lb (6318.54 g) |
| Mount Type | Rack-mountable |
| Rack Height | 2U |
| Placement | Front |
| Rear | |
| Cord Length | 12 ft (3.66 m) |
| Height | 3.50" (89 mm) |
| Width | 17.48" (444 mm) |
| Depth | 10" (254 mm) |
| Mounting Orientation | Horizontal |
| Mounting Preference | No Preference |
| Miscellaneous | |
| Package Contents | |
| Certifications & Standards | cUL Listed|CSA|Industry Canada|PSE|UL Listed |
| Environmentally Friendly | Yes |
| Mercury Free | Yes |
| For Country/Region | United States |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP7911B_ROHS_DECLARATION&p_FileName=AP7911BKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=458562850&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=458562850&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612033_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612033_EN |
| REACH free of SVHC | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
