À propos du produit

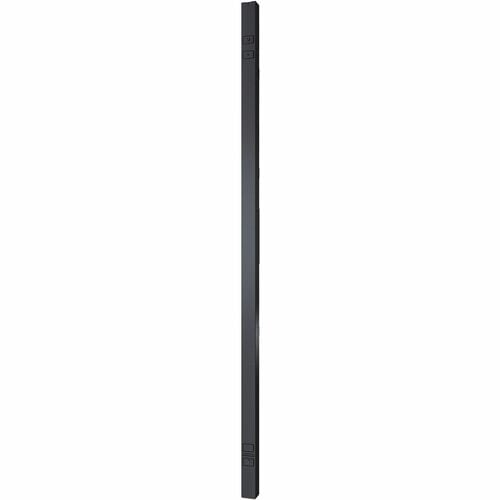

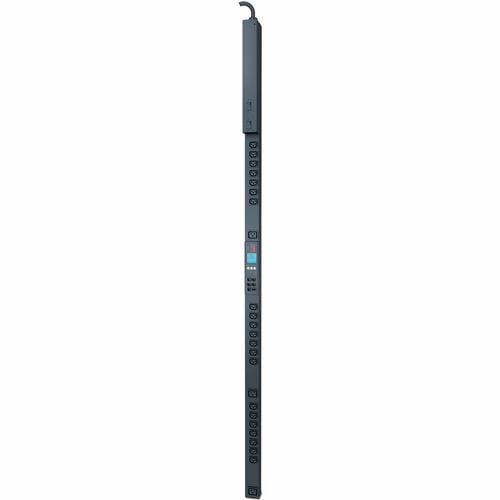

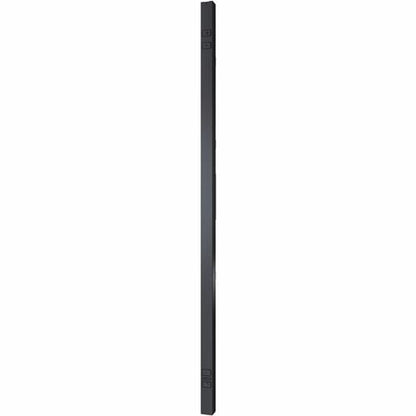

Les unités de distribution d'alimentation en rack mesurées par prise (Rack PDU) fournissent une surveillance à distance en temps réel au niveau de la prise pour fournir une gestion avancée de l'énergie du centre de données.
Spécifications techniques
| Warranty | |
| Additional Warranty Information | 2 years repair or replace |
| Technical Information | |
| Plug/Connector Type | NEMA L6-30P |
| Receptacle Type | IEC 60309 C19 |
| IEC 60309 C13 | |
| PDU Type | Metered-by-Outlet |
| Plug/Connector Detail | 1 x NEMA L6-30P |
| Power Description | |
| Input Voltage | 230 V |
| 208 V | |
| 200 V | |
| Output Voltage | 208 V AC |
| 200 V AC | |
| Input Current | 30 A |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | AP8441 |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Manufacturer | Schneider Electric SA |
| Product Name | Metered-by-Outlet Rack PDU |
| Product Line | Metered |
| Brand Name | APC by Schneider Electric |
| Physical Characteristics | |
| Weight (Approximate) | 18.10 lb (8210.02 g) |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Placement | Side |
| Cord Length | 10 ft (3.05 m) |
| Height | 72.01" (1829 mm) |
| Width | 2.20" (56 mm) |
| Depth | 2.01" (51 mm) |
| Mounting Orientation | Vertical |
| Mounting Preference | No Preference |
| Miscellaneous | |
| Package Contents | |
| Certifications & Standards | cUL Listed|PSE|UL Listed|VCCI Class A |
| Environmentally Friendly | Yes |
| Mercury Free | Yes |
| For Country/Region | United States |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP8441_ROHS_DECLARATION&p_FileName=AP8441KIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=433134845&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=433134845&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1712014_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1712014_EN |
| REACH free of SVHC | Yes |
| Lead Free | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
