À propos du produit

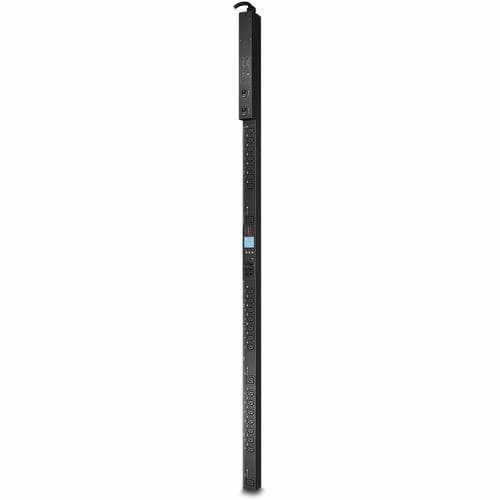

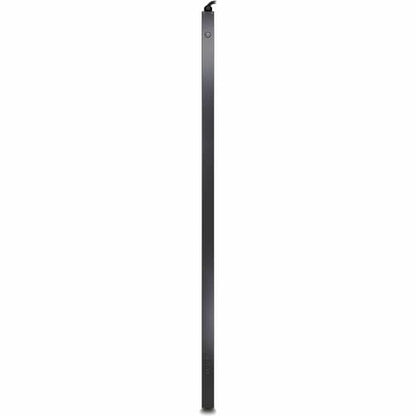

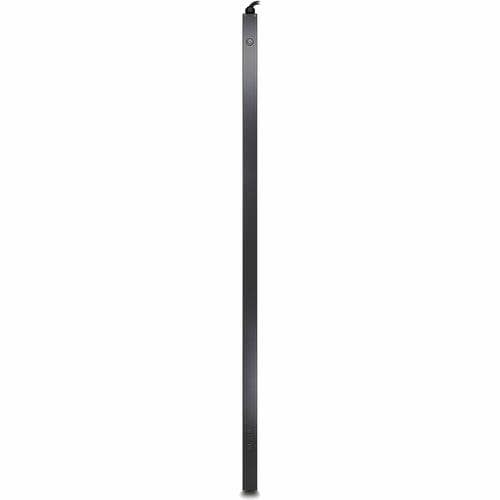

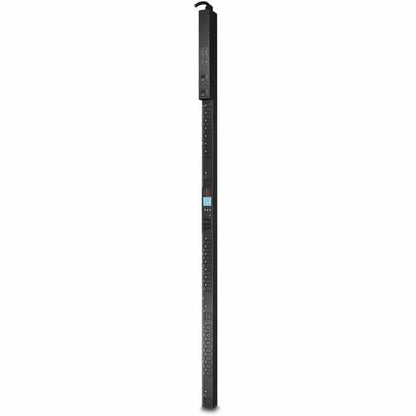

Metered-by-outlet Rack Power Distribution Units (Rack PDU) with Switching provide real-time energy management and on/off control at the outlet level to provide advanced data center energy management.
- PDU provides active metering enabling energy optimization and circuit protection
- With switched PDU, remotely monitor, connect or disconnect data center loads
Spécifications techniques
| Management | |
| Management | Protocols:
|
| Warranty | |
| Additional Warranty Information | 2 years repair or replace |
| Power Description | |
| Input Voltage | 208 V |
| 200 V | |
| 230 V | |
| Output Voltage | 200 V AC |
| 208 V AC | |
| Input Voltage Range | 200 V AC - 230 V AC |
| Technical Information | |
| Protection Type | Overload Protection |

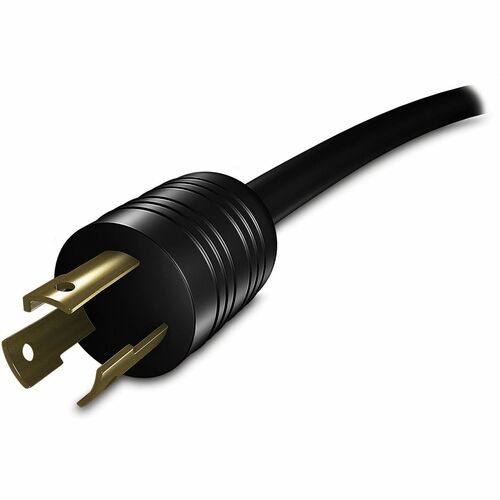

| Plug/Connector Type | NEMA L6-30P |
| Receptacle Type | IEC 60320 C19 |
| IEC 60320 C13 | |
| PDU Type | Switched |
| Receptacle Detail | 21 x IEC 60320 C13 |
| 3 x IEC 60320 C19 | |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | AP8641 |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Manufacturer | Schneider Electric SA |
| Product Model | AP8641 |
| Product Name | Switched Rack AP8000 24-Outlets PDU |
| Product Line | Switched Rack |
| Product Series | AP8000 |
| Brand Name | APC by Schneider Electric |
| Physical Characteristics | |
| Weight (Approximate) | 18.14 lb (8228.17 g) |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Placement | Side |
| Cord Length | 9.8 ft (3 m) |
| Height | 72.01" (1829 mm) |
| Width | 2.20" (56 mm) |
| Depth | 2.01" (51 mm) |
| Number of Cord/Cable | 1 |
| Mounting Orientation | Vertical |
| Mounting Preference | No Preference |
| Miscellaneous | |
| Package Contents | |
| Certifications & Standards | cUL Listed|PSE|UL Listed|VCCI Class A |
| Environmentally Friendly | Yes |
| Mercury Free | Yes |
| For Country/Region | United States |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP8641_ROHS_DECLARATION&p_FileName=AP8641KIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=65033374&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=65033374&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612033_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612033_EN |
| REACH free of SVHC | Yes |
| Lead Free | Yes |
| WEEE Statement | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
