À propos du produit

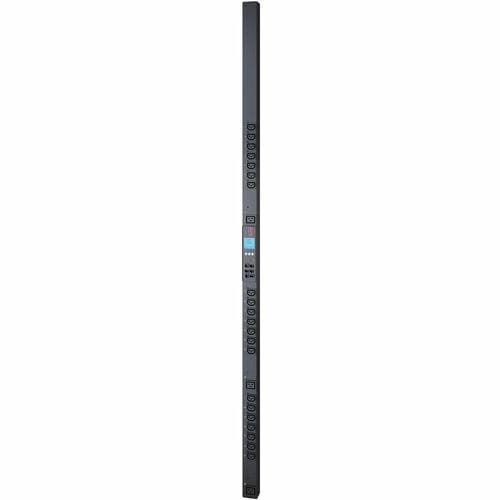

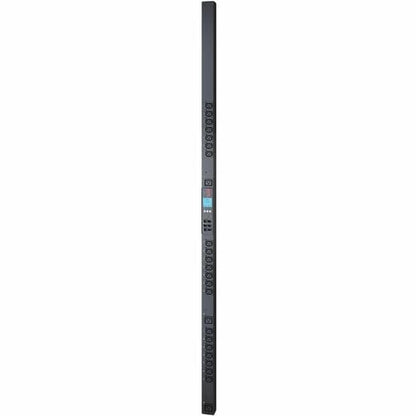

Les unités de distribution d'alimentation en rack mesurées par prise (Rack PDU) avec commutation offrent une gestion de l'énergie en temps réel et un contrôle marche/arrêt au niveau de la prise pour fournir une gestion avancée de l'énergie du centre de données.
Spécifications techniques
| Management | |
| Management | Protocols:
|
| Warranty | |
| Additional Warranty Information | 2 years repair or replace |
| Power Description | |
| Input Voltage | 200 V |
| 208 V | |
| 230 V | |
| Output Voltage | 208 V AC |
| Input Voltage Range | 200 V AC - 230 V AC |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | AP8659NA3 |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Manufacturer | Schneider Electric SA |
| Product Name | Metered-by-Outlet Rack PDU |
| Brand Name | APC by Schneider Electric |
| Technical Information | |

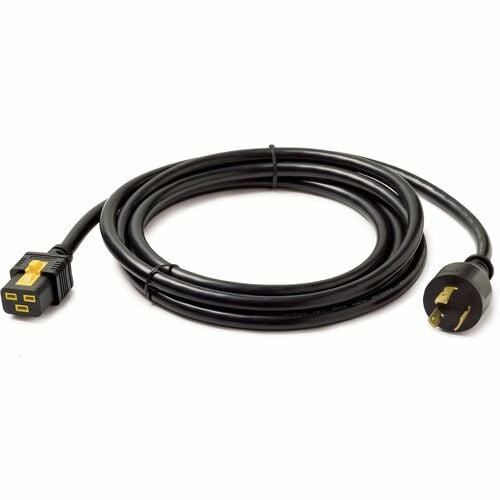

| Plug/Connector Type | NEMA L6-20P |
| Receptacle Type | IEC 60320 C13 |
| IEC 60320 C19 | |
| PDU Type | Metered-by-Outlet |
| Receptacle Detail | 21 x IEC 60320 C13 |
| 3 x IEC 60320 C19 | |
| Physical Characteristics | |
| Weight (Approximate) | 14.93 lb (6772.13 g) |
| Form Factor | Tower |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Placement | Side |
| Cord Length | 9.8 ft (3 m) |
| Height | 72.01" (1829 mm) |
| Width | 2.20" (56 mm) |
| Depth | 2.01" (51 mm) |
| Mounting Orientation | Vertical |
| Mounting Preference | No Preference |
| Miscellaneous | |
| Package Contents | |
| Certifications & Standards | UL Listed|VCCI Class A|VDE |
| Environmentally Friendly | Yes |
| Mercury Free | Yes |
| For Country/Region | United States |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP8659NA3_ROHS_DECLARATION&p_FileName=AP8659NA3KIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=384164338&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=384164338&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512009_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512009_EN |
| REACH free of SVHC | Yes |
| Lead Free | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
