À propos du produit

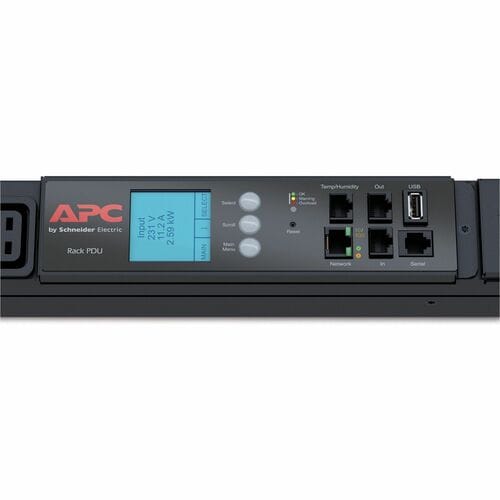

Metered rack Power Distribution Units (PDUs) provide real-time remote monitoring of connected loads. User-defined alarms warn of potential circuit overloads before critical IT failures occur.
- PDU provides active metering enabling energy optimization and circuit protection
- Metered PDU offers reliable, rack-mount and multi-outlet power source
Spécifications techniques
| Management | |
| Management | Protocols:
|
| Warranty | |
| Additional Warranty Information | 2 years repair or replace |
| Power Description | |
| Input Voltage | 400 V |
| Output Voltage | 240 V AC |
| Power Rating (VA) | 23 kVA |
| Technical Information | |
| Protection Type | Overload Protection |

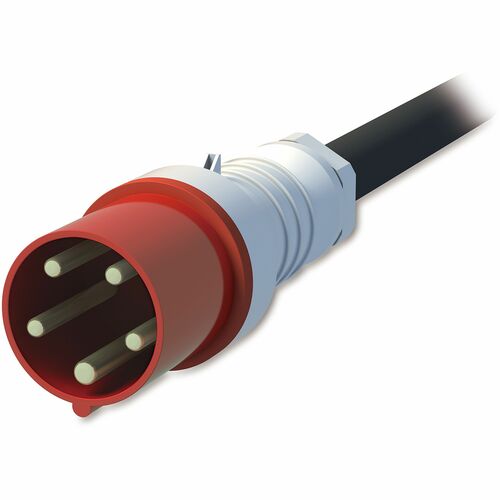

| Plug/Connector Type | IEC 60309 60A 3P+N+E |
| Receptacle Type | IEC 60320 C19 |
| IEC 60320 C13 | |
| PDU Type | Metered |
| Receptacle Detail | 12 x IEC 60320 C19 |
| 30 x IEC 60320 C13 | |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | AP8888 |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Packaged Quantity | 1 Each |
| Manufacturer | Schneider Electric SA |

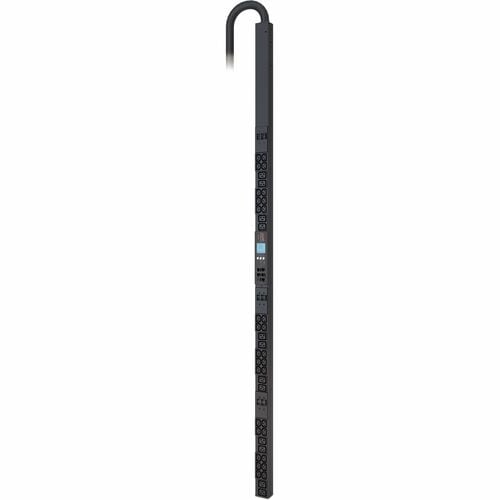

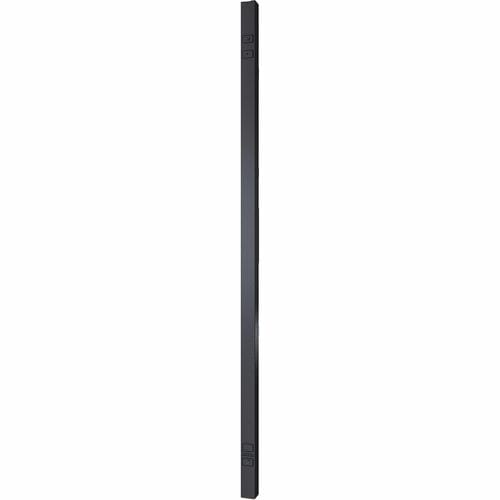

| Product Name | Rack PDU 2G, Metered, ZeroU, 23.0kW, 240V, (30) C13 & (12) C19 |
| Product Line | Metered Rack |
| Brand Name | APC by Schneider Electric |
| Physical Characteristics | |
| Weight (Approximate) | 22.27 lb (10101.50 g) |
| Mount Type | Rack-mountable |
| Placement | Side |
| Cord Length | 6 ft (1.83 m) |
| Height | 72.01" (1829 mm) |
| Width | 2.20" (56 mm) |
| Depth | 2.01" (51 mm) |
| Number of Cord/Cable | 1 |
| Product Color | Black |
| Color Family | Black |
| Mounting Preference | No Preference |
| Miscellaneous | |
| Additional Information | Input Connections: IEC 309 30A 3P+N+E |
| Package Contents | |
| Certifications & Standards | cUL Listed|UL Listed|VCCI Class A |
| Environmentally Friendly | Yes |
| Mercury Free | Yes |
| For Country/Region | United States |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP8888_ROHS_DECLARATION&p_FileName=AP8888KIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=323194468&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=323194468&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1712014_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1712014_EN |
| REACH free of SVHC | Yes |
| Lead Free | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
