À propos du produit
Avec une fiabilité, une facilité de gestion et une sécurité de pointe dans l'industrie, les PDU en rack commuté APC offrent une gestion de charge avancée ainsi qu'un contrôle de cycle d'alimentation et de séquençage au niveau de la prise marche/arrêt.
Spécifications techniques
| Management | |
| Management |
|
| Warranty | |
| Additional Warranty Information | 2 years repair or replace |
| Technical Information | |
| Protection Type | Overload Protection |
| Plug/Connector Type | NEMA L5-30P |
| Receptacle Type | NEMA 5-20R |
| PDU Type | Switched |
| Receptacle Detail | 24 x NEMA 5-20R |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | AP8932 |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Packaged Quantity | 1 Each |
| Manufacturer | Schneider Electric SA |

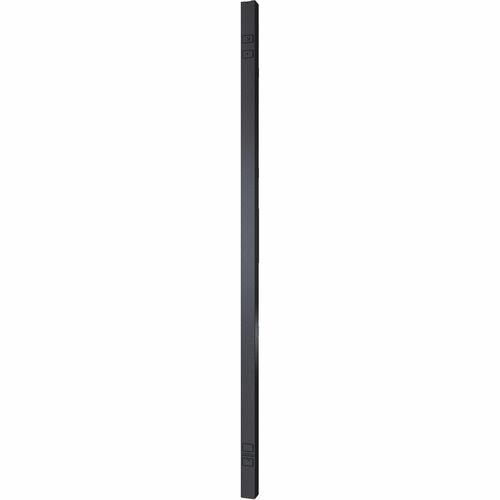

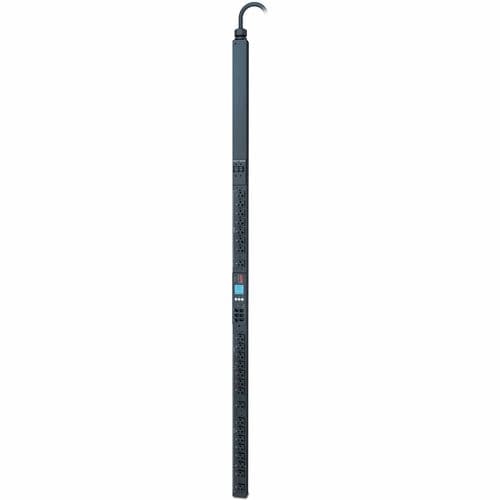

| Product Name | Rack PDU 2G, Switched, ZeroU, 30A, 100-120V, (24) 5-20R |
| Brand Name | APC by Schneider Electric |
| Power Description | |
| Circuit Breaker | Yes |
| Input Voltage | 120 V |
| 100 V | |
| Output Voltage | 100 V AC |
| 120 V AC | |
| Input Current | 30 A |
| Power Rating (VA) | 2.88 kVA |
| Physical Characteristics | |
| Weight (Approximate) | 17.31 lb (7851.68 g) |
| Form Factor | Tower |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Placement | Side |
| Cord Length | 9.8 ft (3 m) |
| Height | 70.51" (1791 mm) |
| Width | 2.17" (55 mm) |
| Depth | 1.81" (46 mm) |
| Number of Cord/Cable | 1 |
| Mounting Orientation | Vertical |
| Product Color | Black |
| Color Family | Black |
| Mounting Preference | No Preference |
| Miscellaneous | |
| Package Contents | |
| Certifications & Standards | cUL Listed|PSE|UL Listed |
| Environmentally Friendly | Yes |
| Mercury Free | Yes |
| For Country/Region | United States |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP8932_ROHS_DECLARATION&p_FileName=AP8932KIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=433134907&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=433134907&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612033_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612033_EN |
| REACH free of SVHC | Yes |
| Lead Free | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
