À propos du produit

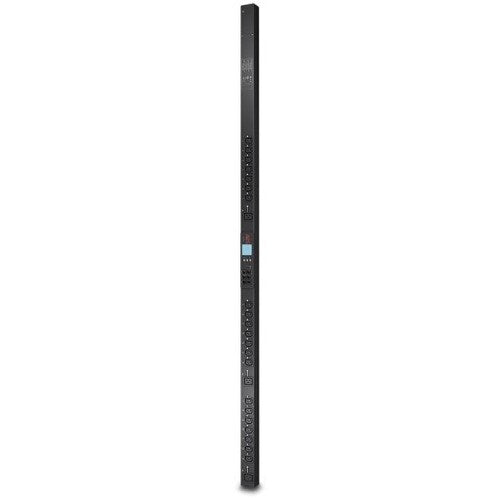

APC Switched Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and active monitoring. Remote outlet level controls allow power on/off functionality for power cycling to remotely reboot equipment and restrict unauthorized use of individual outlets. Power sequencing time delays allow users to define the order in which to power up or down attached equipment to avoid circuit overload. Current metering provides real-time remote monitoring of connected loads with user-defined alarms to warn of potential circuit overloads. Users can access, configure, and control Switched Rack PDUs through secure Web, SNMP, Command Line Interface, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency. New AP8000 series Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles.
- PDU is reliable for power protection and management solutions
- PDU provides active metering enabling energy optimization and circuit protection
- With switched PDU, remotely monitor, connect or disconnect data center loads
- Remotely control individual outlets for rebooting of locked equipment with switched PDUs
Spécifications techniques
| Power Description | |
| Input Voltage | 230 V AC |
| Output Voltage | 208 V AC |
| Input Voltage Range | 200 V AC - 230 V AC |
| Miscellaneous | |
| Package Contents | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
| Technical Information | |
| Plug/Connector Type | NEMA L6-20P |
| Receptacle Type | IEC 60320 C13 |
| IEC 60320 C19 | |
| PDU Type | Switched |
| Receptacle Detail | 21 x IEC 60320 C13 |
| 3 x IEC 60320 C19 | |
| Physical Characteristics | |
| Weight (Approximate) | 12.60 lb (5715.26 g) |
| Form Factor | Tower |
| Mount Type | Rack-mountable |
| Height | 70.50" (1790.70 mm) |
| Width | 2.20" (55.88 mm) |
| Depth | 1.82" (46.23 mm) |
| Number of Cord/Cable | 1 |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | AP8959NA3 |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Manufacturer | Schneider Electric SA |
| Product Model | AP8959NA3 |
| Product Name | Switched Rack AP8959NA3 24-Outlets PDU |
| Product Line | Switched Rack |
| Brand Name | APC by Schneider Electric |
