À propos du produit

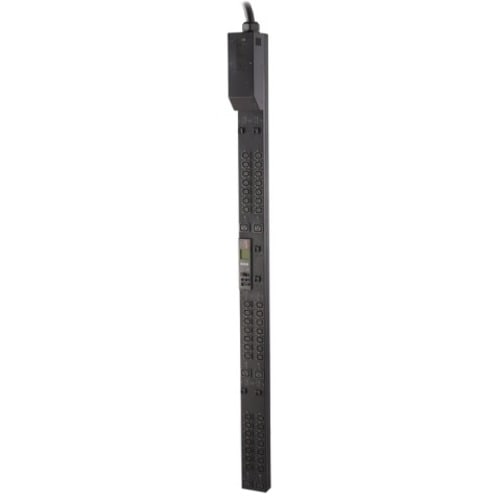

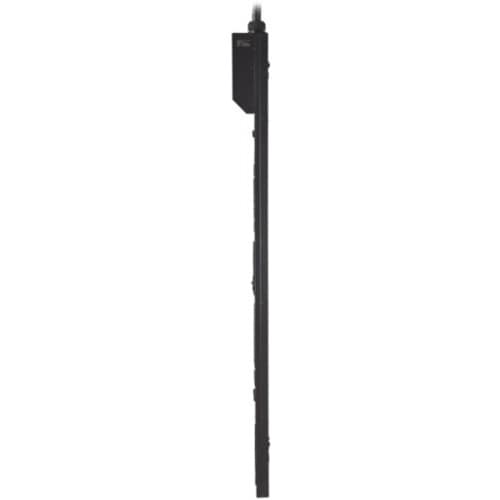

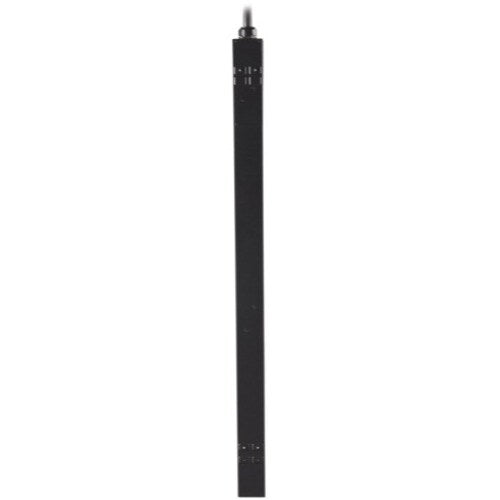

Rack PDU 2G, Switched, ZeroU, 17.2kW, 208V, (42) C13, (6) C19
APC Switched Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and active monitoring. Remote outlet level controls allow power on/off functionality for power recycling to remotely reboot equipment and restrict unauthorized use of individual outlets. Power sequencing delays allow users to define the order in which to power up or down attached equipment. Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding. Current metering provides real-time remote monitoring of connected loads. Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and low profile circuit breakers. User-defined alarms warn of potential circuit overloads before critical IT failures occur. Users can access, configure, and control Switched Rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager.
Spécifications techniques
| Miscellaneous | |
| Package Contents | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
| Power Description | |
| Input Voltage | 230 V AC |
| Output Voltage | 208 V AC |
| Input Current | 60 A |
| Power Rating (Watt) | 17.20 kW |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | AP8967 |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Manufacturer | Schneider Electric SA |
| Product Name | Switched 48-Outlet PDU |
| Product Series | Switched |
| Brand Name | APC by Schneider Electric |
| Physical Characteristics | |
| Weight (Approximate) | 35 lb (15875.73 g) |
| Form Factor | Tower |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Height | 72" (1828.80 mm) |
| Width | 2.20" (55.88 mm) |
| Depth | 2" (50.80 mm) |
| Technical Information | |
| Protection Type | Overload Protection |
| Plug/Connector Type | IEC 60309 3P+PE 60A |
| Receptacle Type | IEC 60320 C13 |
| IEC 60320 C19 | |
| PDU Type | Switched |
| Receptacle Detail | 42 x IEC 60320 C13 |
| 6 x IEC 60320 C19 | |
| Plug/Connector Detail | 1 x IEC 60309 3P+PE 60A |
