À propos du produit

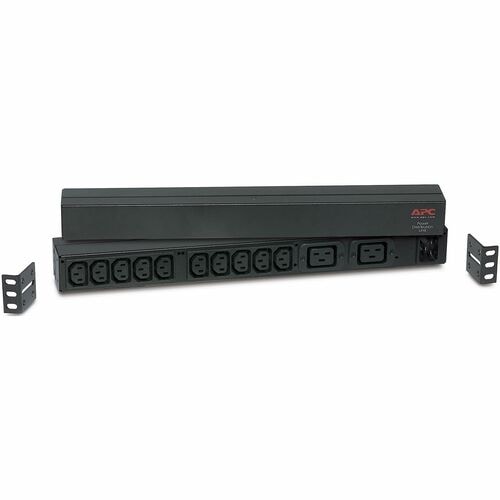

It is a basic rack PDU with a 1U horizontal mounting design. It supports a maximum input current of 16A and operates at 208 and 230V. The PDU features 10 IEC 60320 C13 outlets and 2 IEC 60320 C19 outlets, providing flexibility for connecting various IT equipment. It includes an 8.2-foot power cord with an IEC 60320 C20 plug. The unit is designed for reliable power distribution and includes rack mounting brackets and a user manual.
- Electric power fitted to racks of computers and networking equipment within a data center
- Basic PDU is the space-saving and cost-effective way to deliver power
Spécifications techniques
| Warranty | |
| Additional Warranty Information | 2 years repair or replace |
| Parts Warranty/Labor | 2 Year |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 113°F (45°C) |
| Minimum Storage Temperature | -13°F (-25°C) |
| Maximum Storage Temperature | 149°F (65°C) |
| Minimum Operating Humidity | 0% |
| Maximum Operating Humidity | 95% |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | AP9559 |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Packaged Quantity | 1 Each |
| Manufacturer | Schneider Electric SA |
| Product Name | NetShelter 12-Outlets PDU |
| Product Line | NetShelter |
| Brand Name | APC by Schneider Electric |
| Technical Information | |
| Plug/Connector Type | IEC 60320 C20 |
| Receptacle Type | IEC 60320 C13 |
| IEC 60320 C19 | |
| Load Capacity (VA) | 3.68 kW |
| PDU Type | Basic |
| Receptacle Detail | 10 x IEC 60320 C13 |
| 2 x IEC 60320 C19 | |
| Plug/Connector Detail | 1 x IEC 60320 C20 |
| Power Description | |
| Input Voltage | 230 V |
| 120 V | |
| 208 V | |
| Output Voltage | 208 V AC |
| 230 V AC | |
| 120 V AC | |
| Input Current | 16 A |
| Input Voltage Range | 90 V AC - 250 V AC |
| Input Frequency | 60 Hz |
| Physical Characteristics | |
| Weight (Approximate) | 2.16 lb (979.76 g) |
| Mount Type | Rack-mountable |
| Rack Height | 1U |
| Cord Length | 8.2 ft (2.50 m) |
| Height | 1.73" (44 mm) |
| Width | 17.60" (447 mm) |
| Depth | 2.24" (57 mm) |
| Mounting Orientation | Horizontal |
| Product Color | Black |
| Color Family | Black |
| Mounting Preference | No Preference |
| Miscellaneous | |
| Additional Information |
|
| Package Contents |
|
| Certifications & Standards |
|
| Environmentally Friendly | Yes |
| For Country/Region | United States |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=759556&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=759556&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512009_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512009_EN |
| REACH free of SVHC | Yes |
| Lead Free | Yes |
| California Proposition 65 Warning | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
| WEEE Statement | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Restriction of Hazardous Substances (RoHS) | |
| Waste Electrical and Electronic Equipment Directive (WEEE) |
