À propos du produit

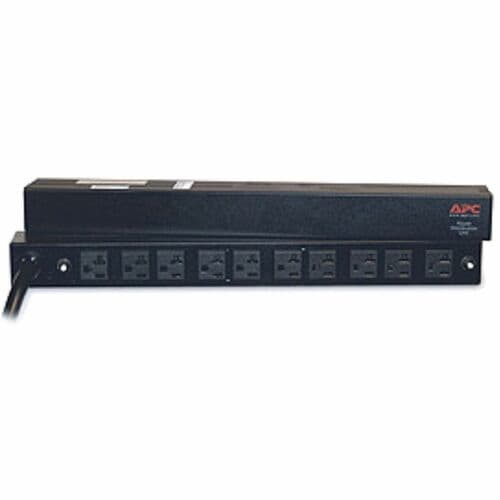

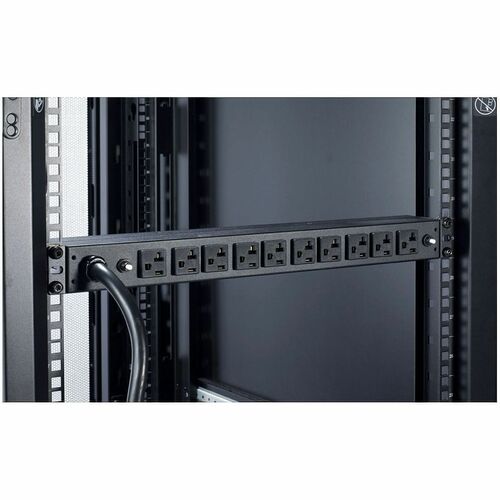

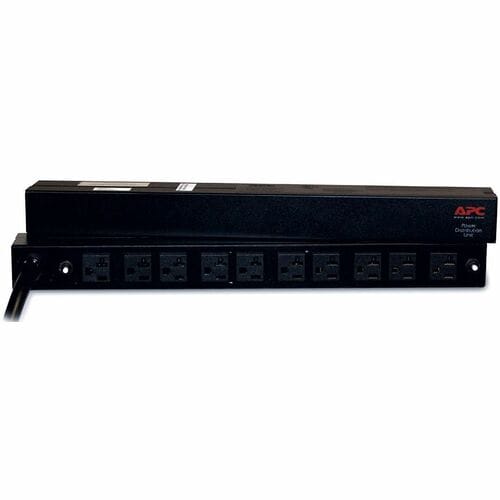

It is a basic rack PDU with a 1U horizontal mounting design. It supports a maximum input current of 30A and operates at 120V. The PDU features 10 NEMA 5-20R outlets, providing ample connections for IT equipment. It includes a 12-foot power cord with a NEMA L5-30P plug. The unit is designed for reliable power distribution and includes rack mounting brackets and a user manual.
- PDU improves efficiency, uptime and growth of data centers
- PDU provides power control as remote controlled relay & load monitoring
- Basic PDU deliver power to wiring closets, server rooms & equipment racks in a cost-effective way
Spécifications techniques
| Warranty | |
| Additional Warranty Information | 2 years repair or replace |
| Parts Warranty/Labor | 2 Year |
| Power Description | |
| Circuit Breaker | Yes |
| Input Voltage | 120 V |
| 100 V | |
| Output Voltage | 120 V AC |
| Input Voltage Range | 120 V AC - 132 V AC |
| Power Rating (VA) | 2.88 kVA |
| Technical Information | |
| Protection Type | Overload Protection |
| Plug/Connector Type | NEMA L5-30P |
| Receptacle Type | NEMA 5-20R |
| Number of Protected Output Receptacles | 10 |
| PDU Type | Basic |
| Receptacle Detail | 10 x NEMA 5-20R |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | AP9560 |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Packaged Quantity | 1 Each |
| Manufacturer | Schneider Electric SA |
| Product Name | Basic Rack 2.88kVA PDU |
| Product Line | Basic Rack |
| Brand Name | APC by Schneider Electric |
| Physical Characteristics | |
| Weight (Approximate) | 5.51 lb (2499.29 g) |
| Mount Type | Rack-mountable |
| Rack Height | 1U |
| Placement | Rear |
| Front | |
| Cord Length | 12 ft (3.66 m) |
| Height | 1.73" (44 mm) |
| Width | 17.60" (447 mm) |
| Depth | 2.24" (57 mm) |
| Mounting Orientation | Horizontal |
| Product Color | Black |
| Color Family | Black |
| Mounting Preference | No Preference |
| Miscellaneous | |
| Additional Information |
|
| Package Contents | |
| Certifications & Standards | cUL Listed|UL Listed |
| Environmentally Friendly | Yes |
| For Country/Region | United States |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=759558&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=759558&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512009_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512009_EN |
| REACH free of SVHC | Yes |
| Lead Free | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
