À propos du produit

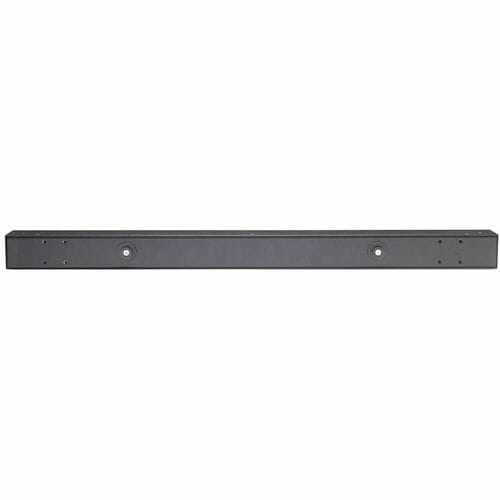

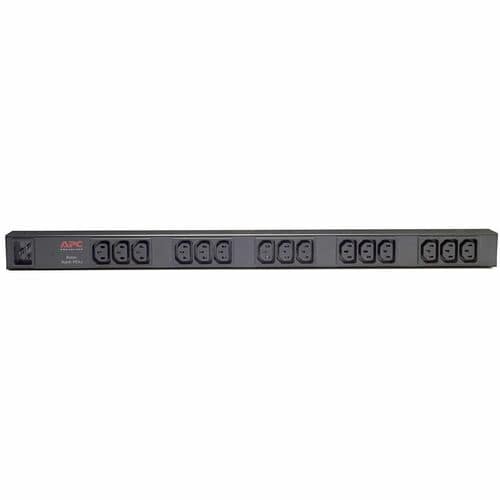

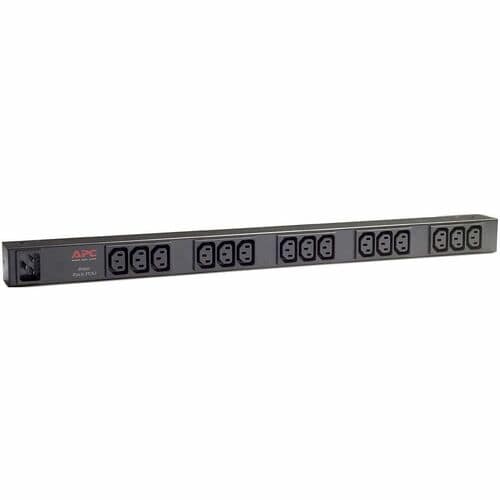

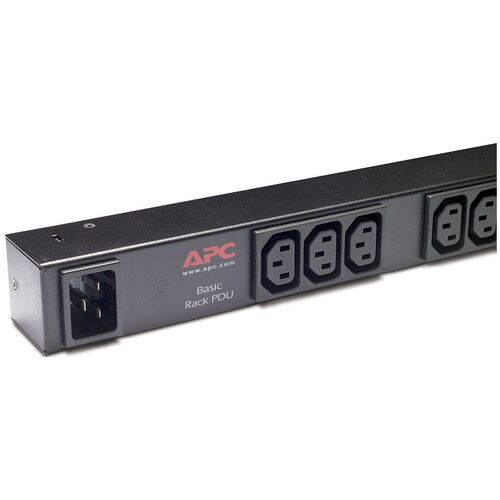

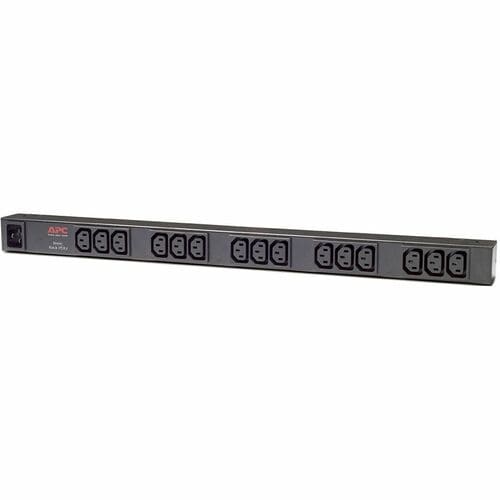

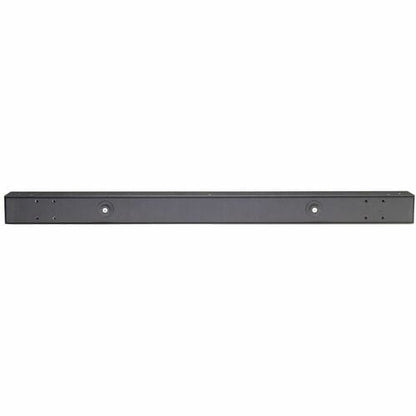

It is a basic rack PDU with a Zero U vertical mounting design. It supports a maximum input current of 16A and operates at 208 and 230V. The PDU features 15 IEC 60320 C13 outlets, providing flexibility for connecting various IT equipment. It includes an 8.2-foot power cord with an IEC 60320 C20 plug. The unit is designed for reliable power distribution and includes an installation guide, rack mounting brackets, and a toolless mounting kit.
- With PDUs decisions for load balancing and minimizing extra cost can be managed
- Basic PDU deliver power to wiring closets, server rooms & equipment racks in a cost-effective way
Spécifications techniques
| Warranty | |
| Additional Warranty Information | 2 years repair or replace |
| Technical Information | |
| Plug/Connector Type | IEC 60320 C20 |
| Receptacle Type | IEC 60320 C13 |
| Number of Protected Output Receptacles | 15 |
| PDU Type | Basic |
| Receptacle Detail | 15 x IEC 60320 C13 |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | AP9572 |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Manufacturer | Schneider Electric SA |
| Product Name | Basic Rack 3.68kVA PDU |
| Product Line | NetShelter |
| Product Series | Basic |
| Brand Name | APC by Schneider Electric |
| Power Description | |
| Input Voltage | 200 V |
| 208 V | |
| 230 V | |
| Output Voltage | 230 V AC |
| 208 V AC | |
| 200 V AC | |
| Input Voltage Range | 120 V AC - 230 V AC |
| Power Rating (VA) | 3.68 kVA |
| Physical Characteristics | |
| Weight (Approximate) | 4.41 lb (2000.34 g) |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Placement | Side |
| Cord Length | 8.2 ft (2.50 m) |
| Height | 24.41" (620 mm) |
| Width | 1.73" (44 mm) |
| Depth | 1.73" (44 mm) |
| Mounting Orientation | Vertical |
| Mounting Preference | No Preference |
| Miscellaneous | |
| Package Contents | |
| Certifications & Standards | cUL Listed|CE|Queensland Australia|UL Listed|VDE |
| Environmentally Friendly | Yes |
| For Country/Region | United States |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=759582&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=759582&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512009_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512009_EN |
| REACH free of SVHC | Yes |
| Lead Free | Yes |
| California Proposition 65 Warning | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
| WEEE Statement | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
