À propos du produit

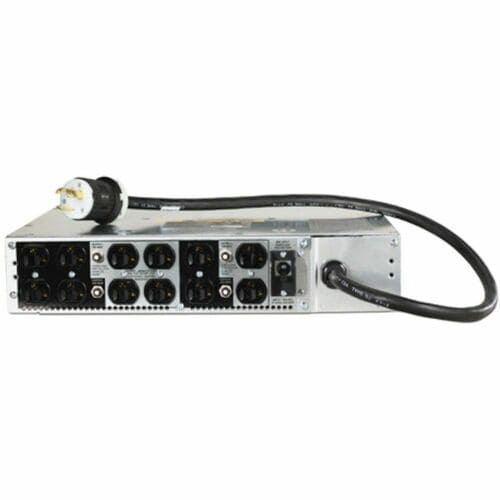

Ce transformateur convertit une entrée haute tension (208 V) en sortie basse tension (120 V), idéal pour alimenter des équipements CA basse tension. Il est monté en rack 2U et comprend 12 prises NEMA 5-20R. L'unité est fournie avec des supports de montage en rack et un manuel d'utilisation.
Spécifications techniques
| Warranty | |
| Additional Warranty Information | 2 years repair or replace |
| Power Description | |
| Input Voltage | 208 V |
| Output Voltage | 120 V |
| Maximum Line Current | 30 A |
| Technical Information | |
| Power Rating | 5 kVA |
| Input Receptacle Type | NEMA L6-30P |
| Output Receptacle Detail | 12 x NEMA 5-20R |
| Output Receptacle Type | NEMA 5-20R |
| General Information | |
| Product Type | Step Down Converter |
| Manufacturer Part Number | AP9626 |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Packaged Quantity | 1 Each |
| Manufacturer | Schneider Electric SA |
| Product Name | Step-Down Rack-mountable Transformer |
| Brand Name | APC by Schneider Electric |
| Physical Characteristics | |
| Weight (Approximate) | 95.20 lb (43181.99 g) |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 3.50" (89 mm) |
| Width | 17.52" (445 mm) |
| Depth | 24.02" (610 mm) |
| Product Color | Black |
| Color Family | Black |
| Mounting Location | Front |
| Mounting Preference | No Preference |
| Miscellaneous | |
| Package Contents | |
| Certifications & Standards | CSA |
| Environmentally Friendly | Yes |
| Mercury Free | Yes |
| For Country/Region | United States |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP9626_ROHS_DECLARATION&p_FileName=AP9626KIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=759638&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=759638&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1511005_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1511005_EN |
| REACH free of SVHC | No |
| Lead Free | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
