À propos du produit

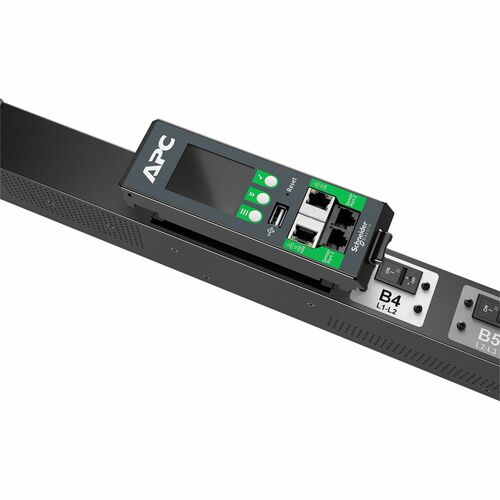

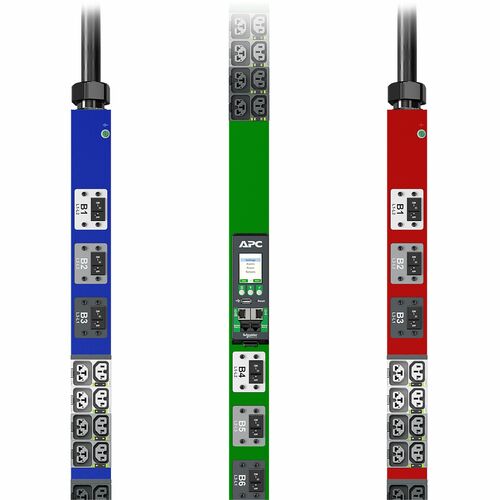

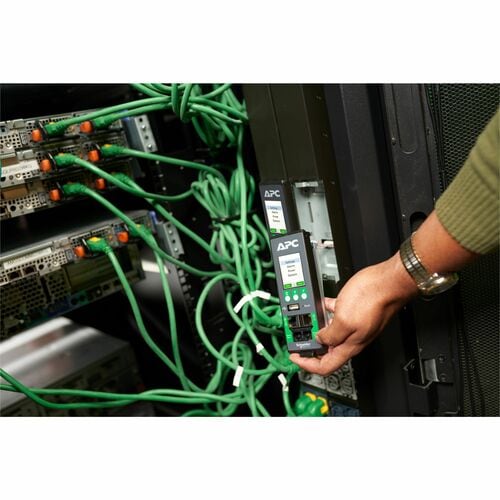

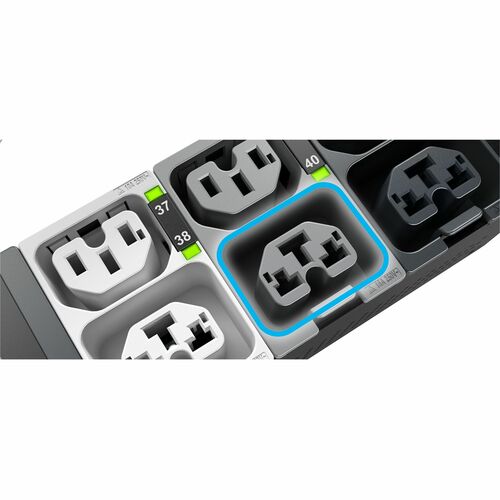

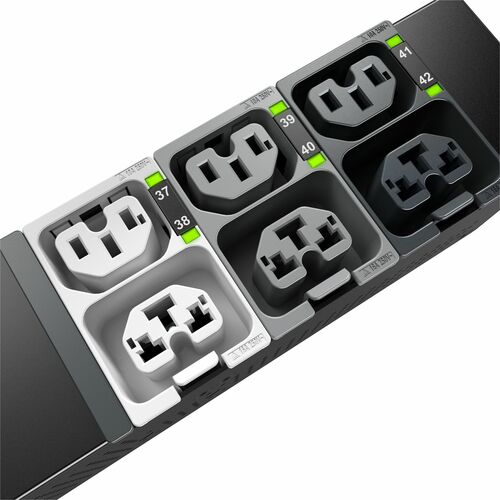

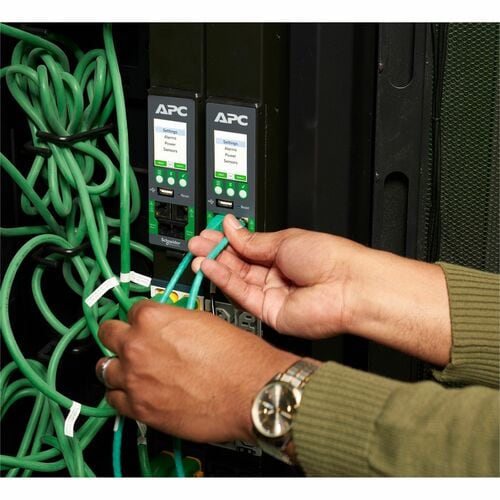

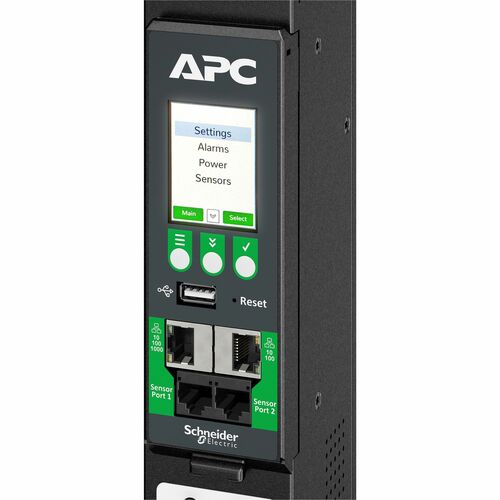

APC NetShelter Rack PDU Advanced provide reliable power distribution to IT Equipment within server and/or networking racks. PDU level power metering via remote access and local display for power visibility and notification of potential overload. 4-in-1 combination outlets which can be used as either C13, C19, C15, or C21 outlets provide unparreled deployment flexibility. Maximum outlet density with 40 outlets in a 2.2" wide form factor. Outlets on the PDUs are color coded by breaker to simplify deployment. Power Sharing allows PDUs cascaded together via 2 ethernet ports enable an Network Management Card to continue functioning in the event of an AC power loss. No interruption in Network communication, sensors operation, and alarm traps. Live Swap Network Management Card (NMC) which can be replaced without powering down the PDU or connected devices to minimize downtime in the unlikely event of an NMC power event. Rated and approved to operate up to 60C (140F) at full load ensures reliability and availability even in today's high density deployments. Gigabit ethernet to enhance and standardize network connectivity across all assets in the data center. A second ethernet port (10/100) is available to allow cascading to other PDUs, connect to a 2nd private network, or provide network redundancy. 1% metering accuracy for the peace of mind to use NetShelter Rack PDU Advanced to bill based on power usage. In addition, the higher level of accuracy ensures the most precise measures for capacity planning and threshold alarm monitoring. Two environmental sensor ports allow for optional sensors (sold separately) to be connected.
- PDU is reliable for power protection and management solutions
- PDU distributes AC power to multiple servers and balances the load on the servers
- Monitor load level efficiently with PDU meter
- Metered PDU offers reliable, rack-mount and multi-outlet power source
Spécifications techniques
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Warranty | |
| Additional Warranty Information | 3 years repair or replace |
| Management | |
| Management | Network Management Card (NMC) |
| Remote Outlet Switching | Yes |
| Miscellaneous | |
| Application/Usage | IT Equipment |
| Environmentally Friendly | Yes |
| Power Description | |
| Input Current | 32 A |
| Input Voltage Range | 200 V AC - 240 V AC |
| Power Rating (VA) | 7.40 kVA |
| Power Rating (Watt) | 7.40 kW |
| Technical Information | |
| Receptacle Type | IEC 60320 C13/C15 |
| IEC 60320 C13/C15/C19/C21 | |
| PDU Type | Metered |
| Receptacle Detail | 20 x IEC 60320 C13/C15/C19/C21 |
| 20 x IEC 60320 C13/C15 | |
| Physical Characteristics | |
| Form Factor | Hot-swappable |
| Mount Type | Rack-mountable |
| Placement | Side |
| Mounting Orientation | Vertical |
| Product Color | Black |
| Color Family | Black |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | APDU10150ME |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Packaged Quantity | 1 |
| Manufacturer | Schneider Electric SA |
| Product Model | APDU10150ME |

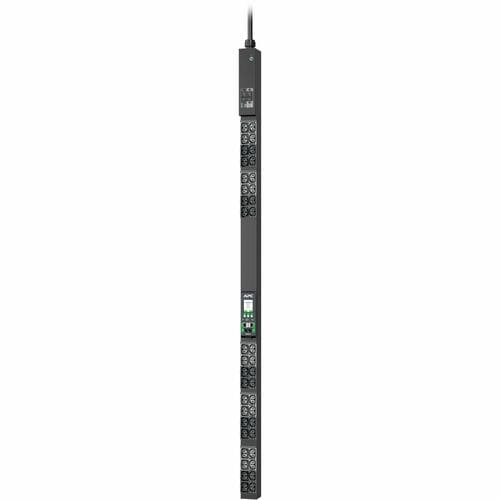

| Product Name | NetShelter APDU10150ME 40-Outlets PDU |
| Brand Name | APC by Schneider Electric |
