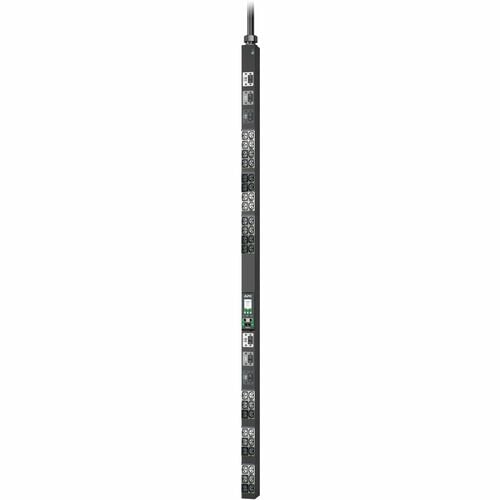

À propos du produit

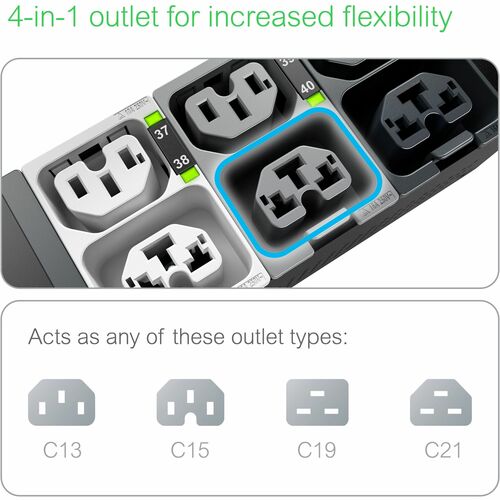

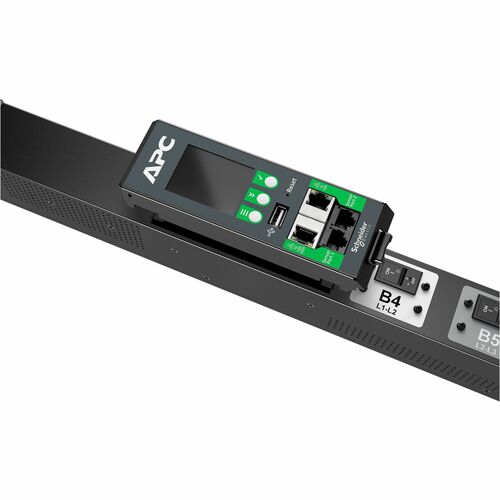

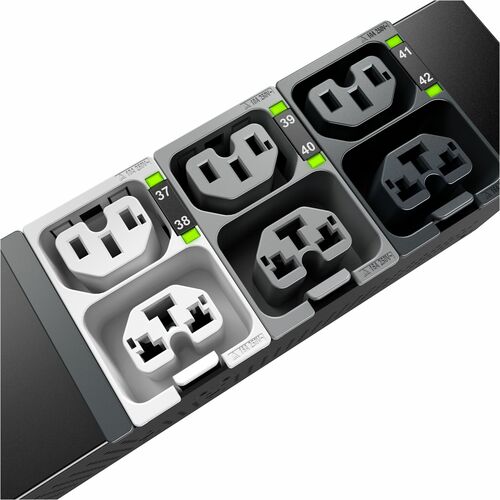

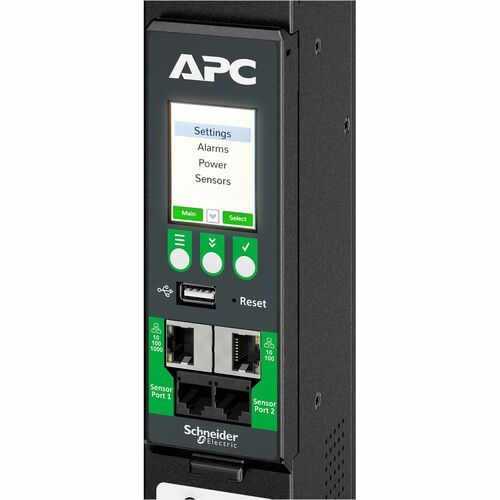

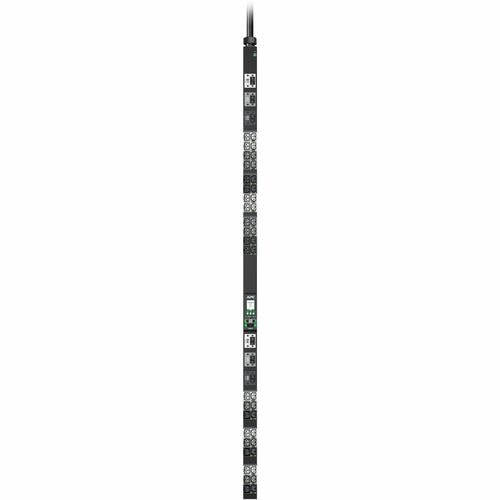

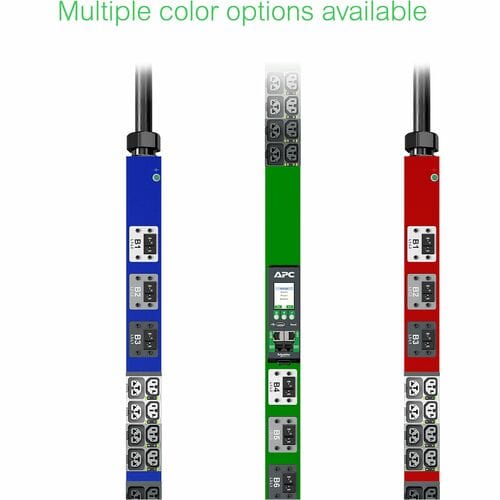

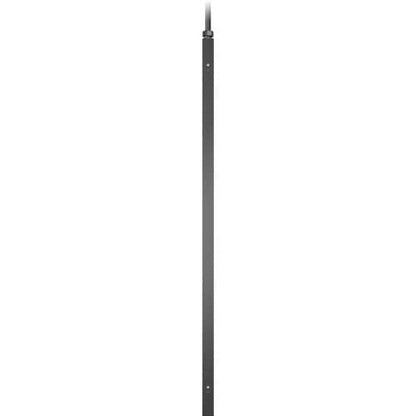

APC NetShelter Rack PDU Advanced provide reliable power distribution to IT Equipment within server and/or networking racks. Switched outlets to turn outlets on or off remotely. PDU level power metering via remote access and local display for power visibility and notification of potential overload. 4-in-1 combination outlets which can be used as either C13, C19, C15, or C21 outlets provide unparalleled deployment flexibility. Maximum outlet density with 42 outlets in a 2.2" wide form factor. Outlets on the PDUs are color coded and/or labeled by breaker and input phase on 3 phase models to simplify deployment. Provides an alternating phase design whereby each of the 3 phases are organized into small outlet groups which alternate from top to bottom of the PDU to facilitate better power cord management and promote better load balancing. Power Sharing allows PDUs cascaded together via 2 ethernet ports enable an Network Management Card to continue functioning in the event of an AC power loss. No interruption in Network communication, sensors operation, and alarm traps. Live Swap Network Management Card (NMC) which can be replaced without powering down the PDU or connected devices to minimize downtime in the unlikely event of an NMC power event. Rated and approved to operate up to 60C (140F) at full load ensures reliability and availability even in today's high density deployments. Gigabit ethernet to enhance and standardize network connectivity across all assets in the data center. A second ethernet port (10/100) is available to allow cascading to other PDUs, connect to a 2nd private network, or provide network redundancy. 1% metering accuracy for the peace of mind to use NetShelter Rack PDU Advanced to bill based on power usage. In addition, the higher level of accuracy ensures the most precise measures for capacity planning and threshold alarm monitoring. Two environmental sensor ports allow for optional sensors (sold separately) to be connected.

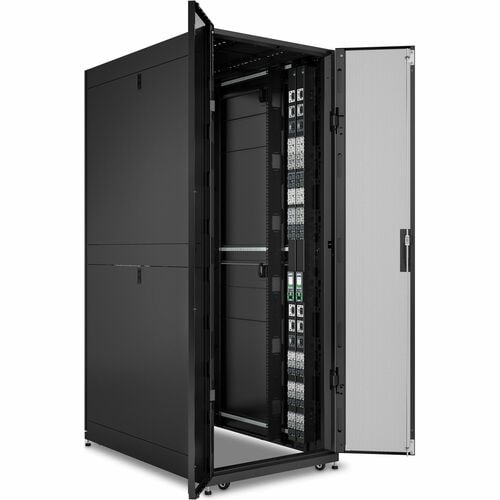

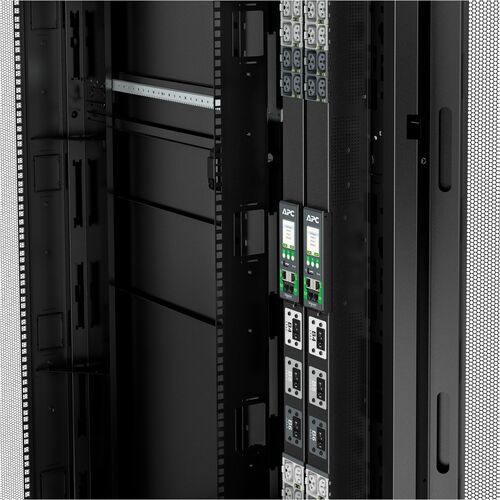

- Electric power fitted to racks of computers and networking equipment within a data center

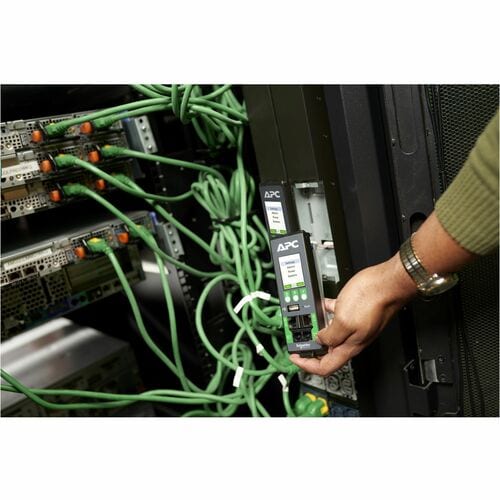

- With switched PDU, remotely monitor, connect or disconnect data center loads
Spécifications techniques
| Warranty | |
| Additional Warranty Information | 3 years repair or replace |
| Power Description | |
| Input Voltage | 208 V |
| Output Voltage | 208 V AC |
| Input Current | 60 A |
| Input Voltage Range | 200 V AC - 240 V AC |
| Power Rating (VA) | 17.30 kVA |
| Power Rating (Watt) | 17.30 kW |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | APDU10452SW |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Manufacturer | Schneider Electric SA |
| Product Name | NetShelter 42-Outlets PDU |
| Product Line | NetShelter |
| Brand Name | APC by Schneider Electric |
| Technical Information | |

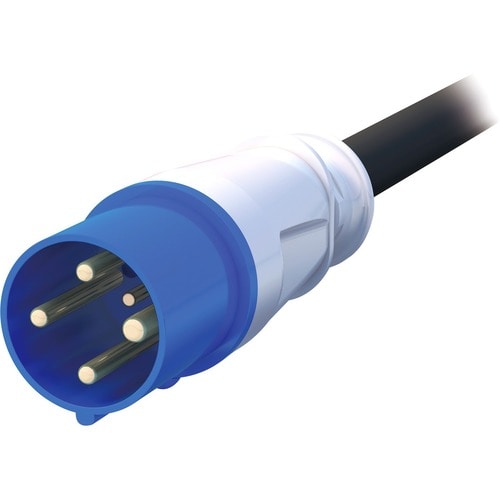

| Plug/Connector Type | IEC 60309 60A 3P+PE |
| Phase | Three Phase |
| Receptacle Type | IEC 60320 C13/C15 |
| IEC 60320 C13/C15/C19/C21 | |
| PDU Type | Switched |
| Receptacle Detail | 21 x IEC 60320 C13/C15/C19/C21 |
| 21 x IEC 60320 C13/C15 | |
| Physical Characteristics | |
| Weight (Approximate) | 24.47 lb (11099.41 g) |
| Form Factor | Rack |
| Rack Height | 0U |
| Placement | Side |
| Cord Length | 5.9 ft (1.80 m) |
| Height | 71.89" (1826 mm) |
| Width | 2.20" (56 mm) |
| Depth | 2.95" (75 mm) |
| Mounting Orientation | Vertical |
| Product Color | Black |
| Color Family | Black |
| Mounting Preference | No Preference |
| Miscellaneous | |
| Certifications & Standards | |
| Country of Origin | India |
| Environmentally Friendly | Yes |
| For Country/Region | United States |
| TAA Compliant | Yes |
| Product Take Back Program | No |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=APDU10452SW_ROHS_DECLARATION&p_FileName=APDU10452SWKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=552063033&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=552063033&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612033_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612033_EN |
| REACH free of SVHC | Yes |
| WEEE Statement | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
| Restriction of Hazardous Substances (RoHS) | |
| China Restriction of Hazardous Substances (China RoHS) |
