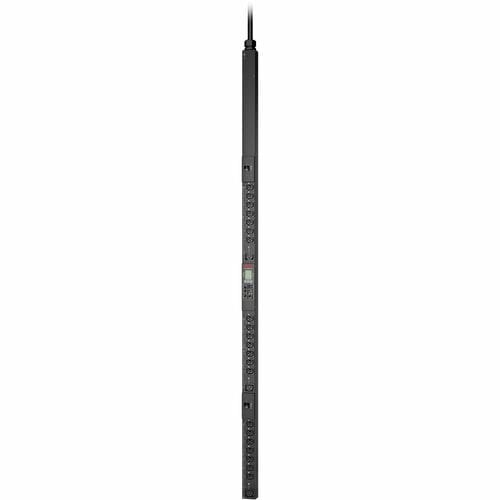

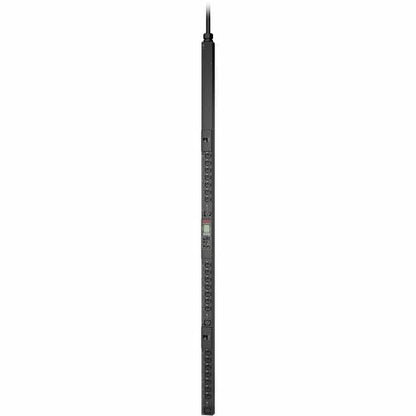

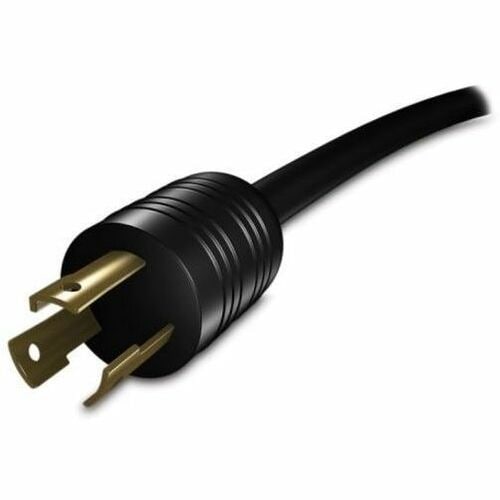

The APC Switched Rack PDU distributes reliable power within a rack through a single input and multiple output receptacles The APDU9941 offers advanced load management combined with remote on/off switching control of individual outlets for power cycling, delayed power sequencing, and outlet use management The 0U PDU includes a NEMA L6-30P input plug with 3 05m (10 ft) cord, (21) IEC 60320 C13/C15 and (3) IEC 60320 C19/C21 hybrid outlet receptacles The hybrid outlets allow 60°C operating temperature at full load, are compatible with standard C14 and C20 power cords, and are future-proofed for new C16 and C21 power cords required for higher temperature rated devices The Network Management Card provides enhanced cybersecurity with secured interfaces and modified password policy The rack PDU integrates with EcoStruxure IT through Network Management Card and can be accessed, configured, and managed remotely via Web, SNMP and Command Line Interface Color user-interactive LCD interface details current, real power, voltage, and energy measurements for local user access The outlet level control allows power on/off functionality for power recycling/reboot of remote equipment and restricts unauthorized use of individual outlets The Switched Rack PDU includes a temperature/humidity sensor port, locking IEC outlets when used with locking power cords, low-profile circuit breakers and USB port for local Firmware updates The rack PDU supports daisy-chain of up to 32 PDUs on a single IP address, thereby reducing networking cost The rack PDU comes with a standard three-year warranty
Spécifications techniques
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Management | |
| Management |
|
| Warranty | |
| Additional Warranty Information | 3 years repair or replace |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | APDU9941 |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Manufacturer | Schneider Electric SA |
| Product Name | NetShelter 9000 24-Outlet PDU |
| Product Series | 9000 |
| Brand Name | APC by Schneider Electric |
| Technical Information | |
| Protection Type | Overload Protection |
| Plug/Connector Type | NEMA L6-30P |
| Receptacle Type | IEC 60320 C13/C15 |
| IEC 60320 C19/C21 | |
| PDU Type | Switched |
| Receptacle Detail | 3 x IEC 60320 C19/C21 |
| 21 x IEC 60320 C13/C15 | |
| Power Description | |
| Input Voltage | 200 V |
| 208 V | |
| Output Voltage | 200 V AC |
| 208 V AC | |
| Input Current | 30 A |
| Input Voltage Range | 200 V AC - 240 V AC |
| Power Rating (VA) | 4.99 kVA |
| Power Rating (Watt) | 5 kW |
| Physical Characteristics | |
| Weight (Approximate) | 18.74 lb (8500.32 g) |
| Form Factor | Tower |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Placement | Side |
| Cord Length | 10 ft (3.05 m) |
| Height | 72.01" (1829 mm) |
| Width | 2.17" (55 mm) |
| Depth | 1.81" (46 mm) |
| Mounting Orientation | Vertical |
| Mounting Preference | No Preference |
| Miscellaneous | |
| Package Contents | |
| Certifications & Standards | cUL Listed|FCC part 15 class A|PSE |
| Country of Origin | India |
| Environmentally Friendly | Yes |
| Mercury Free | Yes |
| For Country/Region | United States |
| Product Take Back Program | No |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=APDU9941_ROHS_DECLARATION&p_FileName=APDU9941KIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=557330941&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=557330941&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612033_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612033_EN |
| REACH free of SVHC | No |
| WEEE Statement | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
