À propos du produit

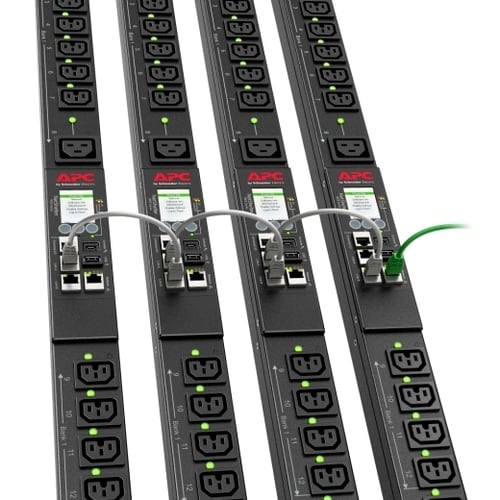

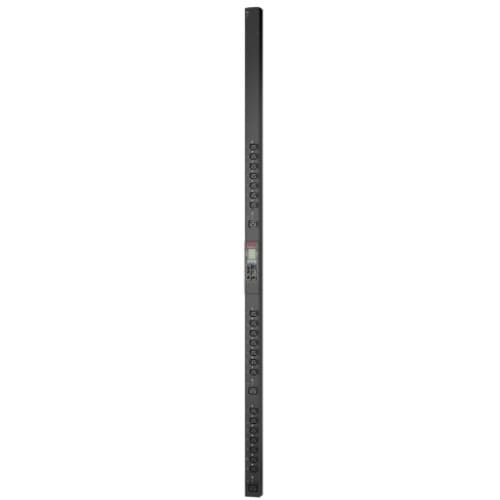

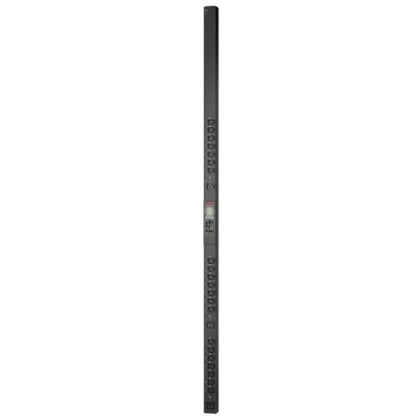

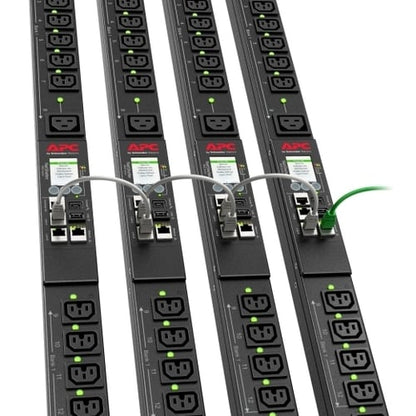

With Industry leading reliability, manageability, and security, APC Switched Rack PDU's provide advanced load management plus on/off outlet level power cycling and sequencing control.
Switched Rack PDUs enable advanced, customizable power control and active monitoring for datacenter and edge environments. Remote outlet level control allows on/off power cycling to remotely reboot equipment and restrict unauthorized use of individual outlets to reduce downtime. Outlet power sequencing and grouping allow users to specify the order of device power up or down to avoid circuit overload due to inrush current and/or load shed to conserve energy. Power metering provides real-time remote monitoring of connected loads with alarms to warn of potential overloads. Users can access, configure, and control Switched Rack PDUs through secure Web or SNMP and are fully compatible with EcoStruxure IT. New 9000 series Switched Rack PDUs include Gigabit ethernet, 1% Metering accuracy, 60C Operating temperature (select models) with new C13/C15 and C19/C21 hybrid outlets, ability to share 1 network port across 32 PDUs, and enhanced cybersecurity.
- PDU allows power to be more efficiently distributed and controlled
- With a built-in digital current meter avoid potential overloads via switched PDUs
Spécifications techniques
| Management | |
| Management |
|
| Miscellaneous | |
| Package Contents | |
| Country of Origin | India |
| Power Description | |
| Input Voltage | 230 V AC |
| Output Voltage | 230 V AC |
| Input Current | 16 A |
| Input Voltage Range | 220 V AC - 240 V AC |
| Power Rating (VA) | 3.70 kVA |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | APDU9959EU3 |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Manufacturer | Schneider Electric SA |
| Product Name | Rack PDU 9000 Switched, ZeroU, 16A, 230V, (21) C13 & (3) C19, IEC309 Cord |
| Product Line | NetShelter |
| Product Series | Switched |
| Brand Name | APC by Schneider Electric |
| Physical Characteristics | |
| Weight (Approximate) | 12.37 lb (5610.94 g) |
| Form Factor | Tower |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Height | 70.63" (1794 mm) |
| Width | 2.17" (55.12 mm) |
| Depth | 1.81" (45.97 mm) |
| Mounting Orientation | Horizontal/Vertical/Toolless |
| Technical Information | |
| Protection Type | Overload Protection |
| Circuit Protection | |

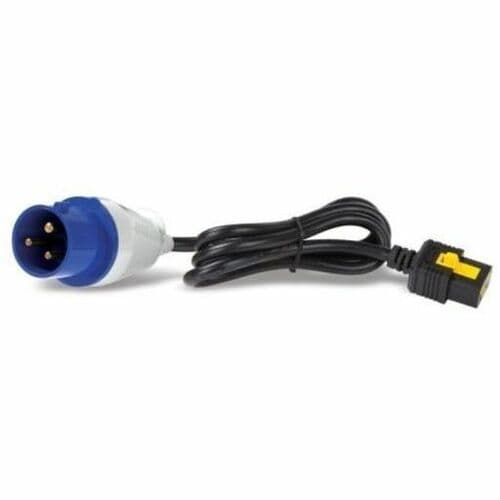

| Plug/Connector Type | IEC 60309 (2P+E) 16A |
| Receptacle Type | IEC 60320 C13 |
| IEC 60320 C19 | |
| PDU Type | Switched |
| Locking Receptacles | Cord Retention Bracket |
| Receptacle Detail | 21 x IEC 60320 C13 |
| 3 x IEC 60320 C19 | |
| Plug/Connector Detail | 1 x IEC 60309 (2P+E) 16A |
