À propos du produit

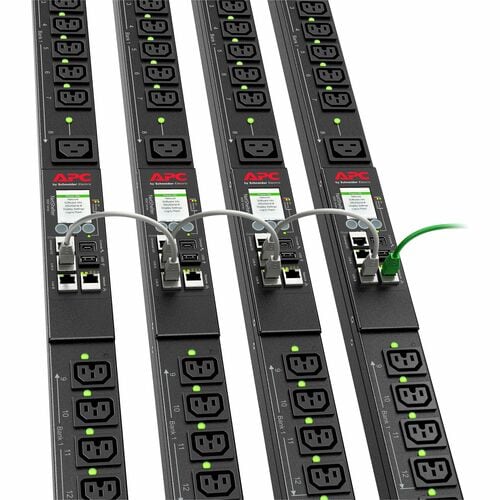

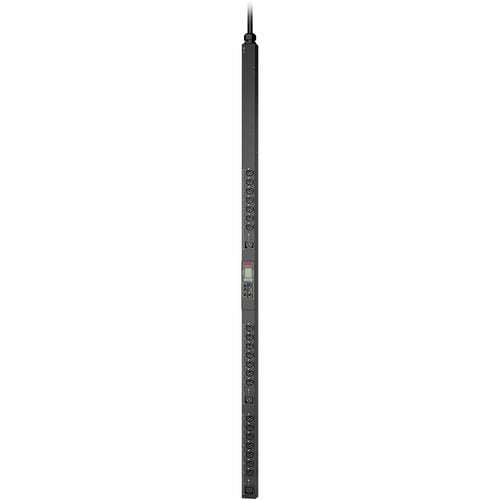

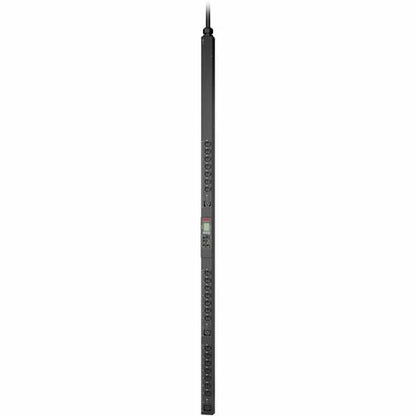

It is a switched rack PDU with a maximum current capacity of 20A and an input voltage of 208V. It includes 21 C13 and C15 outlets and 3 C19 and C21 outlets, connected via a NEMA L21-20P input connection. The PDU has a ZeroU form factor and a cord length of 6 feet (1.8 meters). It supports remote monitoring and user-defined alarms, with outlet-level on or off switching capabilities. The unit is UL Listed and CSA certified, ensuring high safety and performance standards.
- PDU distributes AC power to multiple servers and balances the load on the servers
- Remotely control individual outlets for rebooting of locked equipment with switched PDUs
Spécifications techniques
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Management | |
| Management |
|
| Warranty | |
| Additional Warranty Information | 3 years repair or replace |
| Power Description | |
| Input Voltage | 208 V |
| Output Voltage | 208 V AC |
| Input Current | 20 A |
| Power Rating (VA) | 5.70 kVA |
| Power Rating (Watt) | 5.80 kW |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | APDU9961 |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Manufacturer | Schneider Electric SA |
| Product Name | NetShelter 9000 24-Outlets PDU |
| Product Series | 9000 |
| Brand Name | APC by Schneider Electric |
| Technical Information | |

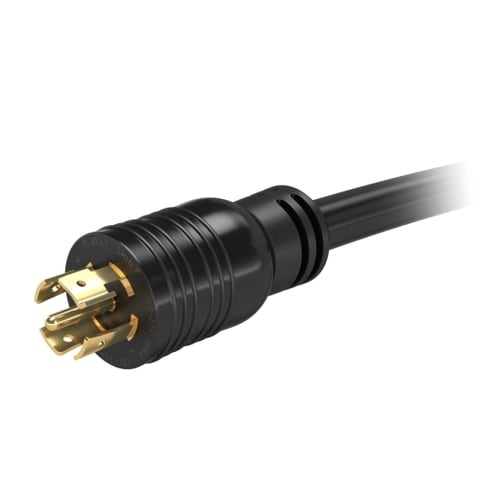

| Plug/Connector Type | NEMA L21-20P |
| Phase | Three Phase |
| Receptacle Type | IEC 60320 C19/C21 |
| IEC 60320 C13/C15 | |
| PDU Type | Switched |
| Receptacle Detail | 3 x IEC 60320 C19/C21 |
| 21 x IEC 60320 C13/C15 | |
| Physical Characteristics | |
| Weight (Approximate) | 15.23 lb (6908.21 g) |
| Form Factor | Tower |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Placement | Side |
| Cord Length | 6 ft (1.83 m) |
| Height | 70.55" (1792 mm) |
| Width | 2.17" (55 mm) |
| Depth | 1.81" (46 mm) |
| Mounting Orientation | Vertical |
| Mounting Preference | No Preference |
| Miscellaneous | |
| Package Contents | |
| Certifications & Standards | cUL Listed|FCC part 15 class A |
| Country of Origin | India |
| Environmentally Friendly | Yes |
| Mercury Free | Yes |
| For Country/Region | United States |
| Product Take Back Program | No |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=APDU9961_ROHS_DECLARATION&p_FileName=APDU9961KIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=557330937&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=557330937&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612033_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612033_EN |
| REACH free of SVHC | No |
| WEEE Statement | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
