À propos du produit

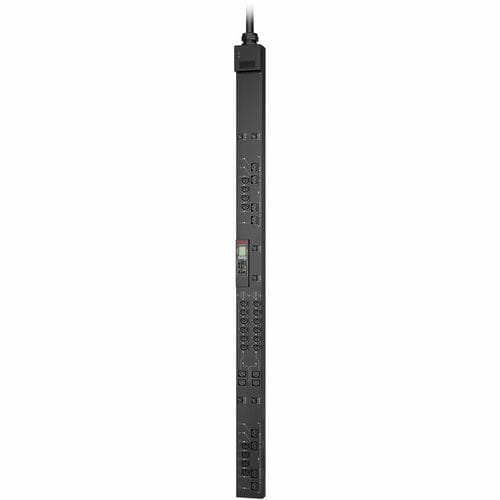

It is a switched rack PDU with a maximum current capacity of 60A and an input voltage of 208V. It includes 20 C13 and C15 outlets and 12 C19 and C21 outlets, connected via an IEC 60309 60A 3P + PE plug. It supports a maximum line current of 48A.
- A device fitted with multiple outputs for the distribution of electric power
- With a built-in digital current meter avoid potential overloads via switched PDUs
Spécifications techniques
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Management | |
| Management |
|
| Warranty | |
| Additional Warranty Information | 3 years repair or replace |
| Power Description | |
| Input Voltage | 208 V |
| Output Voltage | 208 V AC |
| Input Current | 60 A |
| Power Rating (VA) | 17.30 kVA |
| Power Rating (Watt) | 17.30 kW |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | APDU9966 |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Manufacturer | Schneider Electric SA |
| Product Name | NetShelter 9000 32-Outlet PDU |
| Product Series | 9000 |
| Brand Name | APC by Schneider Electric |
| Technical Information | |

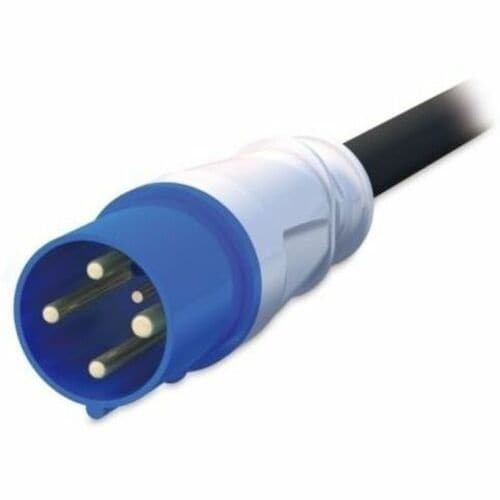

| Plug/Connector Type | IEC 60309 60A 3P+PE |
| Phase | Three Phase |
| Receptacle Type | IEC 60320 C19/C21 |
| IEC 60320 C13/C15 | |
| PDU Type | Switched |
| Receptacle Detail | 12 x IEC 60320 C19/C21 |
| 20 x IEC 60320 C13/C15 | |
| Physical Characteristics | |
| Weight (Approximate) | 30.86 lb (13997.86 g) |
| Mount Type | Rack-mountable |
| Placement | Side |
| Cord Length | 6 ft (1.83 m) |
| Height | 72.17" (1833 mm) |
| Width | 4.37" (111 mm) |
| Depth | 2.99" (76 mm) |
| Mounting Preference | No Preference |
| Miscellaneous | |
| Package Contents | |
| Certifications & Standards | cUL Listed|FCC part 15 class A |
| Country of Origin | India |
| Environmentally Friendly | Yes |
| For Country/Region | United States |
| Product Take Back Program | No |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=APDU9966_ROHS_DECLARATION&p_FileName=APDU9966KIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=557330951&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=557330951&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612033_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612033_EN |
| REACH free of SVHC | No |
| WEEE Statement | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
