À propos du produit

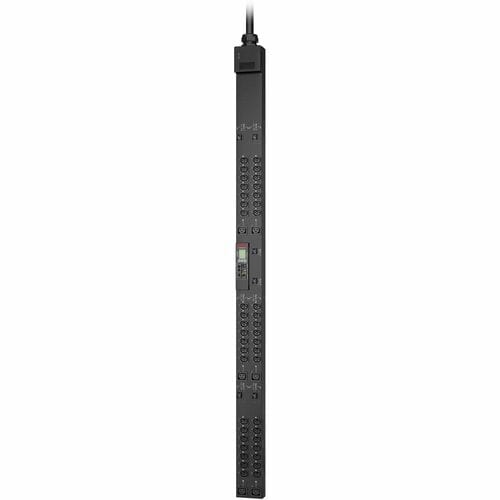

It is a switched rack PDU with a maximum current capacity of 60A and an input voltage of 208V. It features 42 C13 and C15 outlets and 6 C19 and C21 outlets, connected via an IEC 60309 60A 3P + PE plug. This PDU is designed for ZeroU mounting and supports a maximum line current of 48A.
- PDU improves efficiency, uptime and growth of data centers
- Remotely control individual outlets for rebooting of locked equipment with switched PDUs
Spécifications techniques
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Management | |
| Management |
|
| Warranty | |
| Additional Warranty Information | 3 years repair or replace |
| Power Description | |
| Input Voltage | 208 V |
| Output Voltage | 208 V AC |
| Input Current | 48 A |
| Power Rating (VA) | 17.30 kVA |
| Power Rating (Watt) | 17.30 kW |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | APDU9967 |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Manufacturer | Schneider Electric SA |
| Product Name | NetShelter 9000 48-Outlets PDU |
| Product Series | 9000 |
| Brand Name | APC by Schneider Electric |
| Technical Information | |

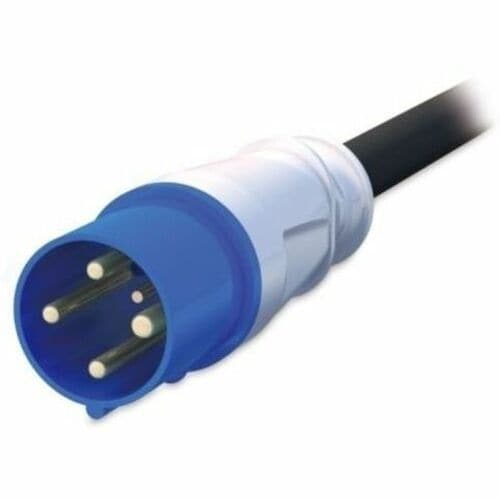

| Plug/Connector Type | IEC 60309 60A 3P+PE |
| Phase | Three Phase |
| Receptacle Type | IEC 60320 C19/C21 |
| IEC 60320 C13/C15 | |
| PDU Type | Switched |
| Receptacle Detail | 6 x IEC 60320 C19/C21 |
| 42 x IEC 60320 C13/C15 | |
| Physical Characteristics | |
| Weight (Approximate) | 32.06 lb (14542.17 g) |
| Form Factor | Tower |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Placement | Side |
| Cord Length | 6 ft (1.83 m) |
| Height | 72.17" (1833 mm) |
| Width | 4.37" (111 mm) |
| Depth | 2.99" (76 mm) |
| Mounting Orientation | Vertical |
| Mounting Preference | No Preference |
| Miscellaneous | |
| Package Contents | |
| Certifications & Standards | cUL Listed|FCC part 15 class A|UL Listed|VCCI Class A |
| Country of Origin | India |
| Environmentally Friendly | Yes |
| Mercury Free | Yes |
| For Country/Region | United States |
| Product Take Back Program | No |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=APDU9967_ROHS_DECLARATION&p_FileName=APDU9967KIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=557330948&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=557330948&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612033_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612033_EN |
| REACH free of SVHC | No |
| WEEE Statement | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
