À propos du produit

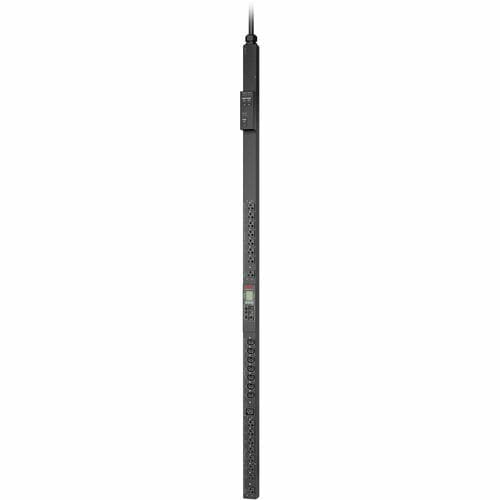

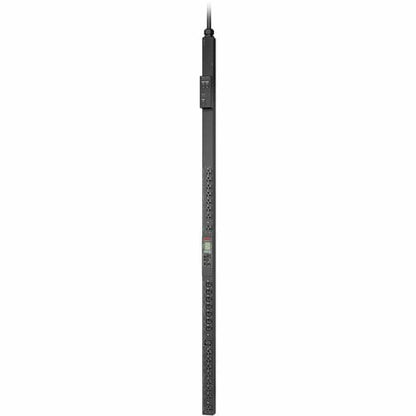

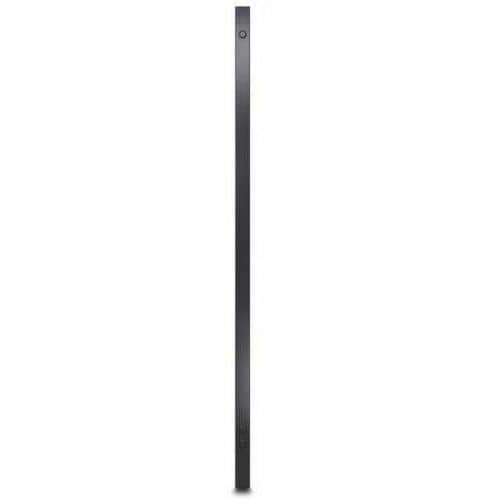

It is a switched rack PDU with a maximum current capacity of 30A and an input voltage of 120 and 208V. It includes 16 NEMA 5-20R outlets, 7 C13 and C15 outlets, and 1 C19 and C21 outlet, connected via an NEMA L14-30 plug. The PDU is designed for ZeroU mounting. User-defined alarms warn of potential circuit overloads before critical IT failures occur Users can access, configure, and control Switched rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by Struxureware for Data Centers using Data Center Expert and Data Center Operations with Capacity and Change modules
Spécifications techniques
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Management | |
| Management |
|
| Warranty | |
| Additional Warranty Information | 3 years repair or replace |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | APDU9970 |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Manufacturer | Schneider Electric SA |
| Product Name | NetShelter 9000 24-Outlet PDU |
| Product Series | 9000 |
| Brand Name | APC by Schneider Electric |
| Power Description | |
| Input Voltage | 120 V |
| 208 V | |
| Output Voltage | 208 V AC |
| 120 V AC | |
| Input Current | 30 A |
| Power Rating (VA) | 4.99 kVA |
| Power Rating (Watt) | 5 kW |
| Technical Information | |

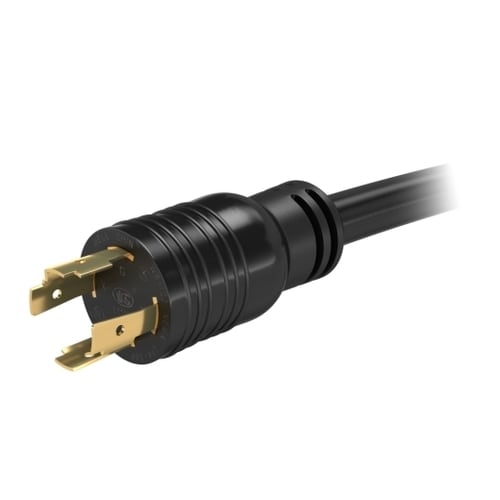

| Plug/Connector Type | NEMA L14-30P |
| Receptacle Type | NEMA 5-20R |
| IEC 60320 C19/C21 | |
| IEC 60320 C13/C15 | |
| PDU Type | Switched |
| Receptacle Detail | 1 x IEC 60320 C19/C21 |
| 7 x IEC 60320 C13/C15 | |
| 16 x NEMA 5-20R | |
| Physical Characteristics | |
| Weight (Approximate) | 20.79 lb (9430.19 g) |
| Form Factor | Tower |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Placement | Side |
| Cord Length | 10 ft (3.05 m) |
| Height | 72.01" (1829 mm) |
| Width | 2.20" (56 mm) |
| Depth | 1.81" (46 mm) |
| Mounting Orientation | Vertical |
| Mounting Preference | No Preference |
| Miscellaneous | |
| Package Contents | |
| Certifications & Standards | cUL Listed|FCC part 15 class A |
| Country of Origin | India |
| Environmentally Friendly | Yes |
| Mercury Free | Yes |
| For Country/Region | United States |
| Product Take Back Program | No |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=APDU9970_ROHS_DECLARATION&p_FileName=APDU9970KIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=557330943&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=557330943&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612033_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612033_EN |
| REACH free of SVHC | No |
| WEEE Statement | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
