À propos du produit

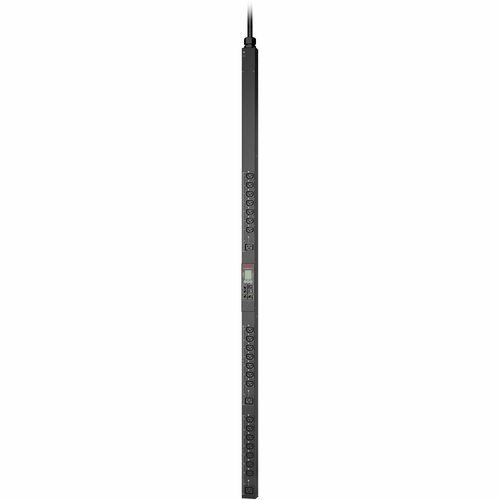

It is a switched rack PDU with a maximum current capacity of 16A and an input voltage of 400V. It includes 21 IEC 60320 C13 outlets and 3 IEC 60320 C19 outlets, connected via an IEC 60309 16A 3P+N+PE plug. The PDU is designed for ZeroU mounting. User-defined alarms warn of potential circuit overloads before critical IT failures occur Users can access, configure, and control Switched rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager

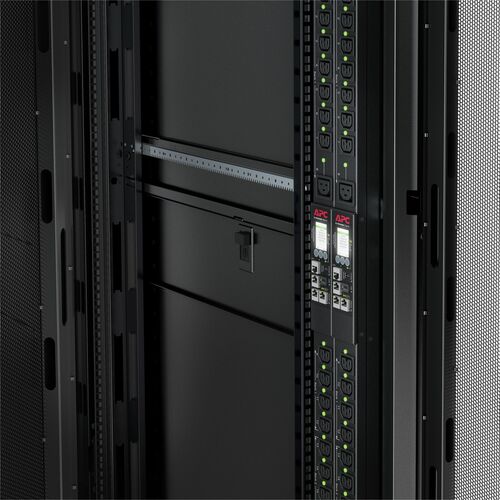

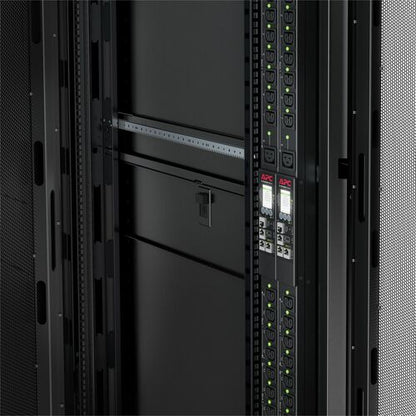

- Electric power fitted to racks of computers and networking equipment within a data center
- PDU distributes AC power to multiple servers and balances the load on the servers
- With a built-in digital current meter avoid potential overloads via switched PDUs

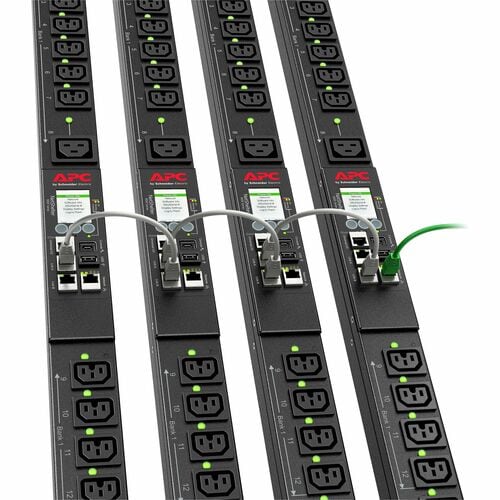

- Remotely control individual outlets for rebooting of locked equipment with switched PDUs
Spécifications techniques
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Management | |
| Management |
|
| Warranty | |
| Additional Warranty Information | 3 years repair or replace |
| Power Description | |
| Input Voltage | 400 V |
| Output Voltage | 230 V AC |
| Input Current | 16 A |
| Power Rating (VA) | 11 kVA |
| Power Rating (Watt) | 11 kW |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | APDU9981EU3 |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Manufacturer | Schneider Electric SA |
| Product Name | Rack PDU 9000 Switched, ZeroU, 11.0kW, 230V, (21) C13 & (3) C19 |
| Product Line | NetShelter |
| Product Series | Switched |
| Brand Name | APC by Schneider Electric |
| Technical Information | |
| Protection Type | Circuit Protection |
| Accidental Power Shutdown | |

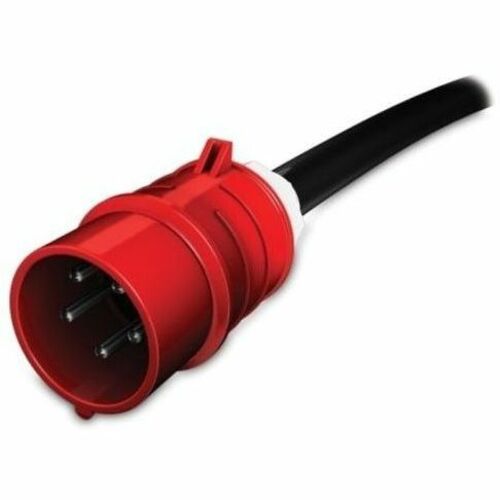

| Plug/Connector Type | IEC 60309 16A 3P+N+PE |
| Phase | Three Phase |
| Receptacle Type | IEC 60320 C13 |
| IEC 60320 C19 | |
| PDU Type | Switched |
| Receptacle Detail | 21 x IEC 60320 C13 |
| 3 x IEC 60320 C19 | |
| Plug/Connector Detail | 1 x IEC 60309 16A 3P+N+PE |
| Physical Characteristics | |
| Weight (Approximate) | 15.43 lb (6998.93 g) |
| Form Factor | Tower |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Placement | Side |
| Cord Length | 6 ft (1.83 m) |
| Height | 70.55" (1792 mm) |
| Width | 2.17" (55 mm) |
| Depth | 1.81" (46 mm) |
| Mounting Orientation | Vertical |
| Mounting Preference | No Preference |
| Miscellaneous | |
| Package Contents | |
| Certifications & Standards | cUL Listed|FCC part 15 class A|UL Listed|VDE |
| Environmentally Friendly | Yes |
| Mercury Free | Yes |
| For Country/Region | United States |
| Product Take Back Program | No |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=APDU9981EU3_ROHS_DECLARATION&p_FileName=APDU9981EU3KIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=557330956&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=557330956&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612033_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612033_EN |
| REACH free of SVHC | No |
| WEEE Statement | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
