À propos du produit

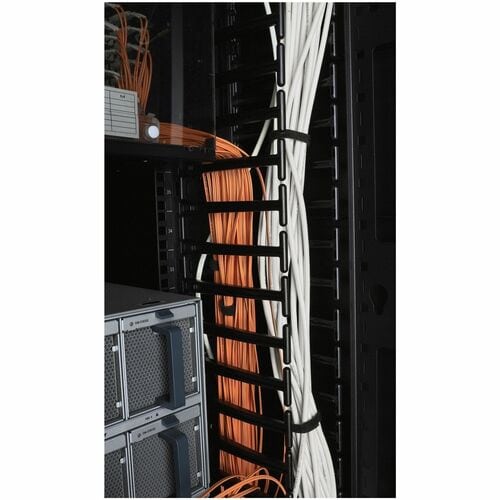

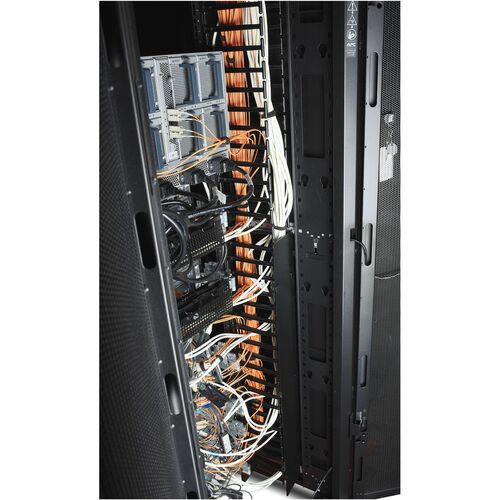

Comprehensive selection of accessories designed to organize power or data cables within a rack or enclosure.

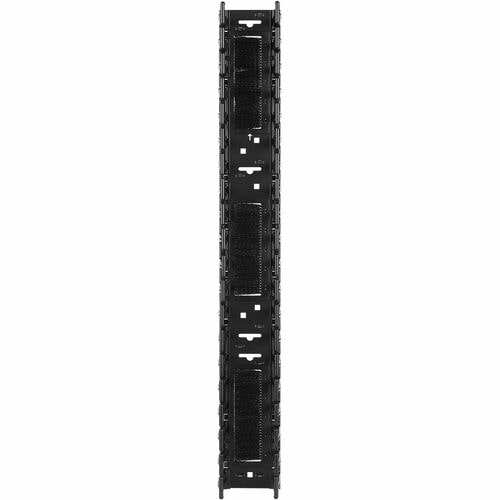

- Backplate optimized for accessorizing - Backplates feature multiple holes for toollessly mounting accessories such as cable managers for cable tie-off (AR8621) and airflow management brush strips (AR7714) to allow cable pass-through while restricting airflow through the openings.
- Dedicated cable manager for each enclosure height - Dedicated cable managers for each enclosure height 42U, 45U, and 48U, provide the maximum u-space coverage. Optional covers will match cable manager height to provide full coverage over the entire height of the enclosure.

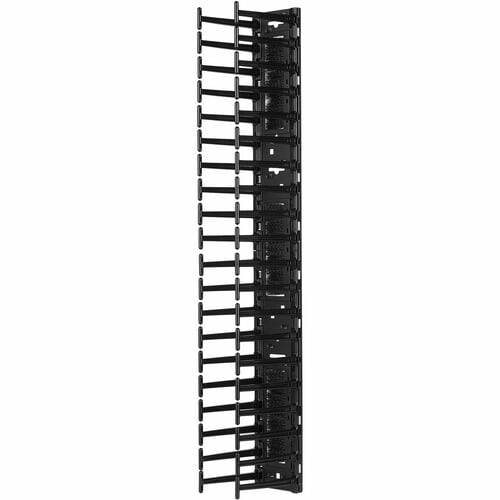

- High capacity cable finger design - Cable managers feature high capacity slim cable fingers to provide maximum capacity at every rack space unit and a rigid design to decrease deflection when cables are routed in/out of the cable manager channel.

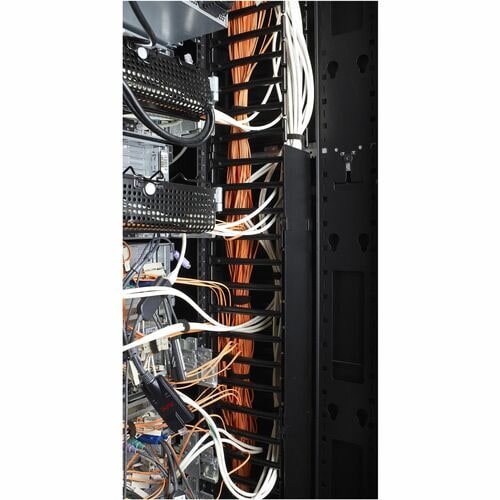

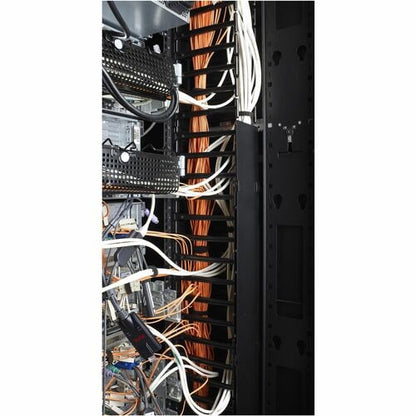

- Optional hinging left or right covers - Covers (not provided) install quickly without tools and include two easy to use latches that allow the cover to open to the left or right. The covers hide the cabling to keep the enclosure space neat for future maintenance and an clean aesthetic.

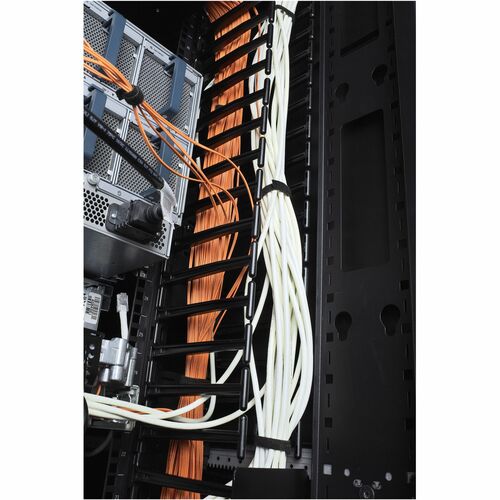

- Secure cabling with easy access - Secure cabling inside the cable manager with the provided snap hinge cable retainers that open to the left or right for easy access.
Spécifications techniques
| Product Information | |
| Cable Manager Type | Cable Pass-through |
| Warranty | |
| Additional Warranty Information | 2 years repair or replace |
| General Information | |
| Product Type | Cable Organizer |
| Manufacturer Part Number | AR7588 |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Packaged Quantity | 1 Each |
| Manufacturer | Schneider Electric SA |
| Product Model | AR7588 |

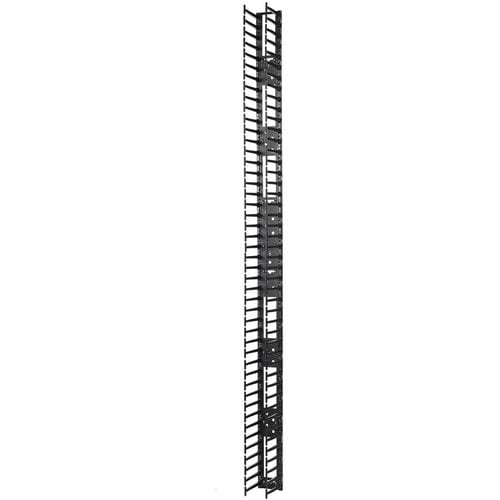

| Product Name | Vertical Cable Manager for NetShelter SX 750mm Wide 48U (Qty 2) |
| Brand Name | APC by Schneider Electric |
| Physical Characteristics | |
| Weight (Approximate) | 11.62 lb (5270.74 g) |
| Rack Height | 48U |
| Height | 86" (2184 mm) |
| Width | 3.8" (97 mm) |
| Depth | 6.3" (160 mm) |
| Product Color | Black |
| Color Family | Black |
| Product Material | Plastic |
| Mounting Location | Front |
| Rear | |
| Mounting Preference | No Preference |
| Miscellaneous | |
| Package Contents |
|
| Compatibility | APC NetShelter SX Enclosure |
| Certifications & Standards | TAA compliance |
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Mercury Free | Yes |
| For Country/Region | United States |
| TAA Compliant | Yes |
| Product Take Back Program | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AR7588_ROHS_DECLARATION&p_FileName=AR7588KIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=384164979&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=384164979&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512008 |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512008_EN |
| REACH free of SVHC | Yes |
| Toxic Heavy Metal Free | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
