À propos du produit

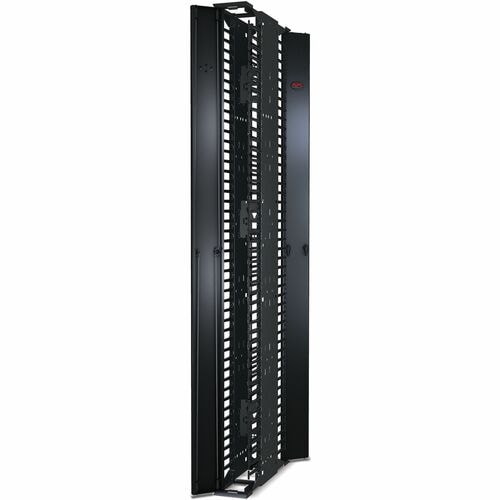

Comprehensive selection of accessories designed to organize power or data cables within a rack or enclosure.
- Cable protection - Smooth plastic fingers provide proper bend radius.
- Grounding connection - Grounding connection point (hardware not provided) on left and right side of cable channel provides location for grounding the vertical cable manager.
- High capacity cable finger design - Cable managers feature high capacity slim cable fingers to provide maximum capacity at every rack space unit and a rigid design to decrease deflection when cables are routed in/out of the cable manager channel.
- Horizontal cable routing front-to-back - Pass-through holes and mounting slots support horizontal cable troughs for front-to-back cable pass-through using cable management accessory AR8016ABLK.
- Similar look-and-feel to NetShelterT enclosures - Contoured and powdercoat design of the vertical cable manager door and matching enclosure placard provide a clean and consistent look with NetShelter enclosures.
- Slam-to-latch full length door - Door installs quickly without tools and is provided with two easy to use latches that allow the door to open to the left or right.
- Toollessly mount vertical Rack PDUs - Backplates feature several mounting location positions allowing Rack PDUs to be toollessly installed with the vertical cable manager channel or on the backside.
- Vertical cable managers ship fully assembled - Vertical cable managers ship fully assembled reducing the amount of time required to install equipment.
Spécifications techniques
| Product Information | |
| Cable Manager Type | Cable Manager |
| Warranty | |
| Additional Warranty Information | 2 years repair or replace |
| General Information | |
| Product Type | Cable Organizer |
| Manufacturer Part Number | AR8625 |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Packaged Quantity | 1 Pack |
| Manufacturer | Schneider Electric SA |
| Product Name | Cable Manager |
| Brand Name | APC by Schneider Electric |
| Physical Characteristics | |
| Weight (Approximate) | 65.92 lb (29900.81 g) |
| Rack Height | 1U |
| Height | 84" (2134 mm) |
| Width | 6" (152 mm) |
| Depth | 26" (660 mm) |
| Product Color | Black |
| Color Family | Black |
| Product Material | Plastic |
| Miscellaneous | |
| Package Contents |
|
| Compatibility | APC Open Frame Rack:
|
| Certifications & Standards | UL Listed |
| Environmentally Friendly | Yes |
| Mercury Free | Yes |
| For Country/Region | United States |
| Product Take Back Program | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AR8625_ROHS_DECLARATION&p_FileName=AR8625KIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=323194604&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=323194604&lang=en-us |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512008_EN |
| REACH free of SVHC | Yes |
| Toxic Heavy Metal Free | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Comparaison de produits
Garantie du produit
Standard manufacturer warranty as applicable
