À propos du produit
Comprehensive selection of accessories designed to organize power or data cables within a rack or enclosure.

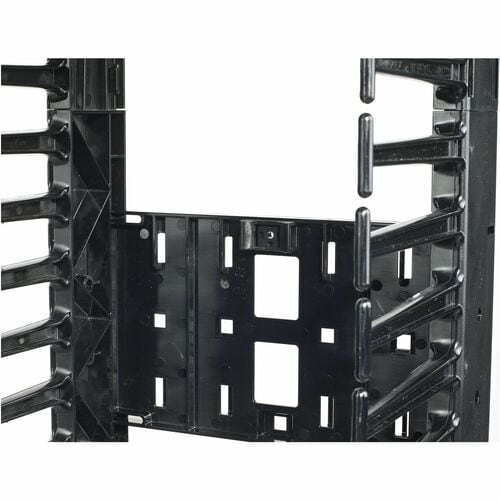

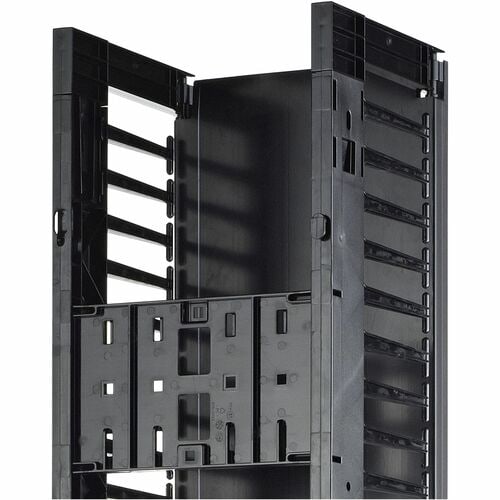

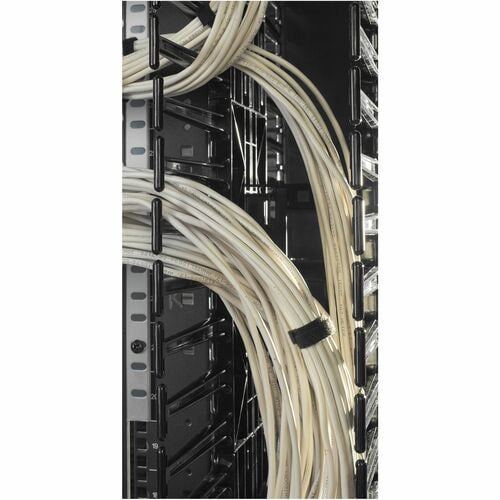

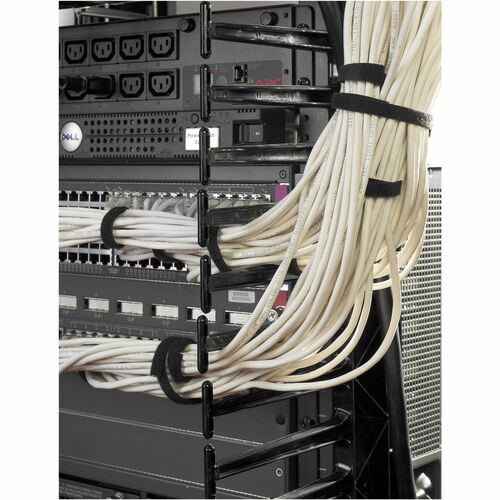

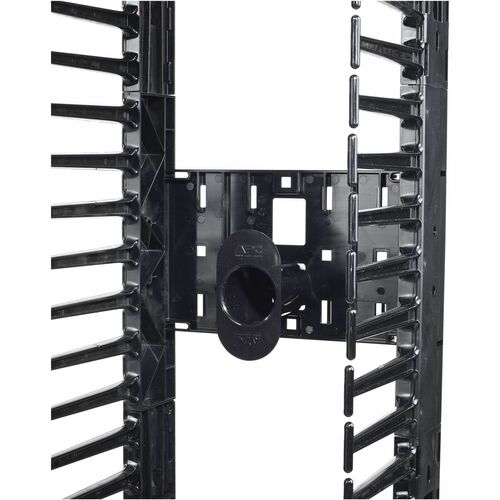

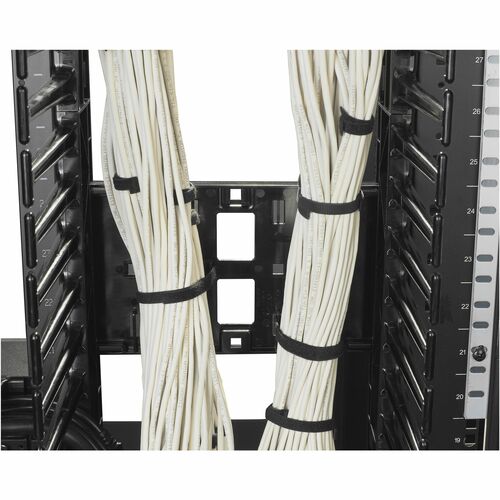

- Cable management tie-off backplate for accessories - Backplates feature multiple mounting holes for toolless accessory installation of cable management accessories such as hook-and-loop cable managers and straps (AR8621) and fiber spools for excess fiber slack management (AR8444).
- Cable protection - Smooth plastic fingers provide proper bend radius.

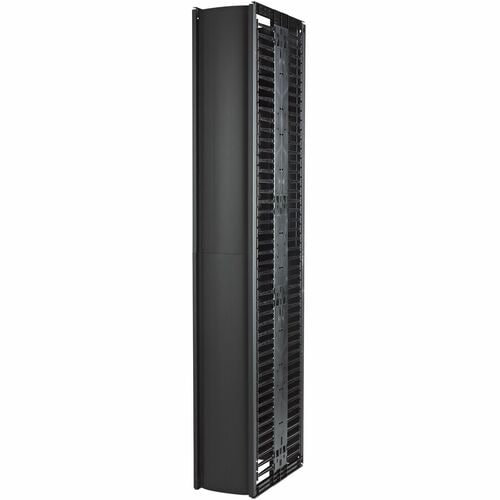

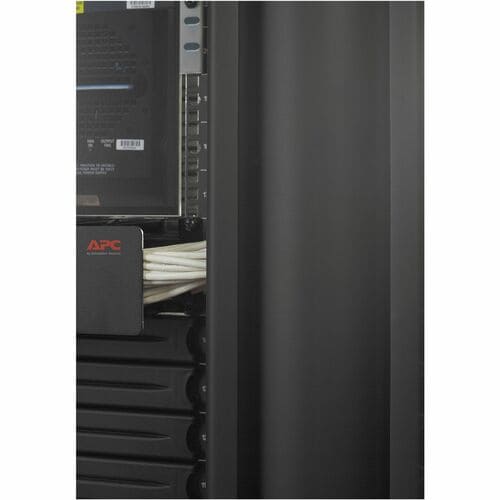

- Dual-hinging full length door - Door installs quickly without tools and hinges from the left or right to allow access inside the vertical cable manager channel.
- Fiber management - Supports toolless installation of AR8444 fiber spools.

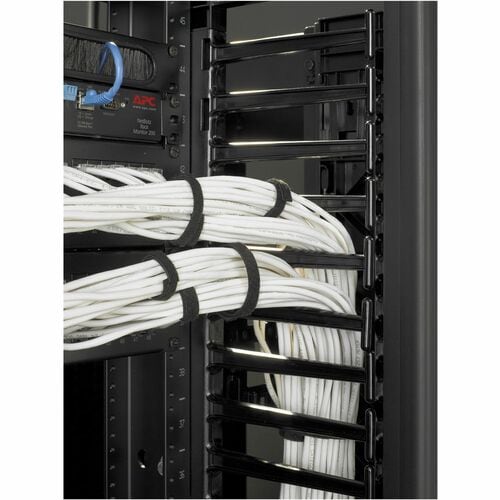

- High capacity cable finger design - Cable managers feature high capacity slim cable fingers to provide maximum capacity at every rack space unit and a rigid design to decrease deflection when cables are routed in/out of the cable manager channel.

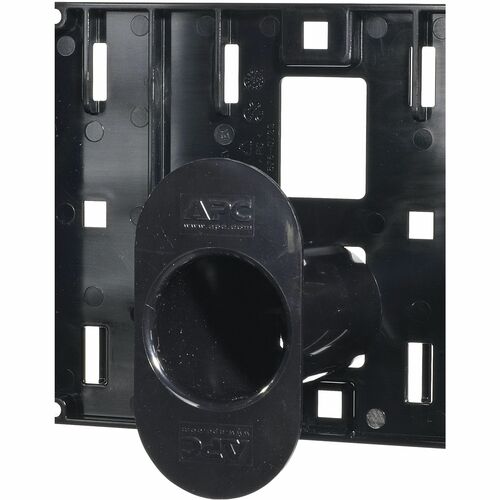

- Horizontal cable routing front-to-back - Pass-through holes and mounting slots support horizontal cable troughs for front-to-back cable pass-through using cable management accessory AR8016ABLK.

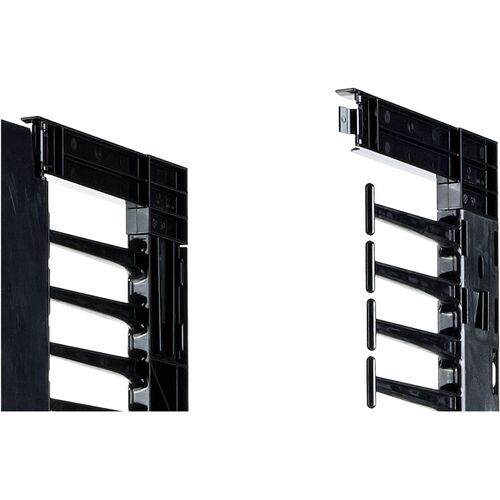

- Unassembled for rapid assembly onsite - Vertical cable managers are packaged unassembled and designed with a simple snap together design for rapid onsite assembly and installation.
Spécifications techniques
| Product Information | |
| Cable Manager Type | Cable Manager |
| Warranty | |
| Additional Warranty Information | 2 years repair or replace |
| General Information | |
| Product Type | Cable Organizer |
| Manufacturer Part Number | AR8775 |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Packaged Quantity | 1 Each |
| Manufacturer | Schneider Electric SA |
| Product Name | Cable Manager |
| Brand Name | APC by Schneider Electric |
| Physical Characteristics | |
| Weight (Approximate) | 40.08 lb (18179.98 g) |
| Rack Height | 42U |
| Height | 84" (2134 mm) |
| Width | 12" (305 mm) |
| Depth | 22.5" (572 mm) |
| Product Color | Black |
| Color Family | Black |
| Product Material | Plastic |
| Miscellaneous | |
| Package Contents |
|
| Compatibility | APC 2 and 4 Post Open Frame Racks |
| Certifications & Standards | Free of Substances of Very High Concern above the threshold |
| Environmentally Friendly | Yes |
| Mercury Free | Yes |
| For Country/Region | United States |
| Product Take Back Program | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AR8775_ROHS_DECLARATION&p_FileName=AR8775KIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=384165192&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=384165192&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512008 |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512008_EN |
| REACH free of SVHC | Yes |
| Toxic Heavy Metal Free | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
