À propos du produit

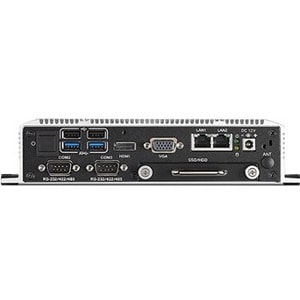

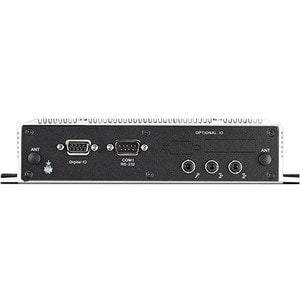

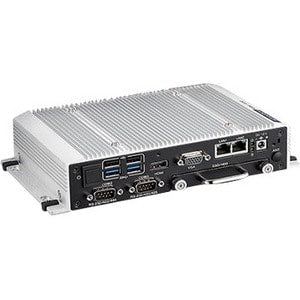

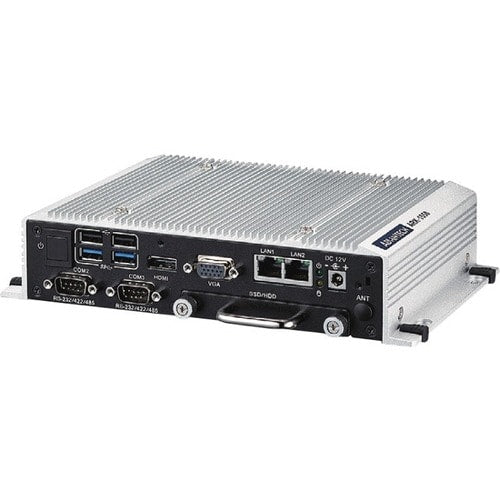

Fanless Embedded Computers
Advantech Fanless Embedded Computers are embedded systems engaged in edge computing and highly suitable for remote monitoring and control. Advantech fanless pc offers diverse modular and ready-to-order I/O products to help customers maximize the resulting benefits and rapidly implement diverse applications, such as motion control, machine vision, and rolling stock.
- Intel® Dual Core Celeron 2980U 1.6 GHz / Core i5 4300U 1.9 GHz SoC
- One Hot Swappable 2.5" SATA HDD Bay and mSATA slot
- Triple Independent Displays by VGA + HDMI + LVDS (LVDS option)
- Optional VESA / DIN Rail Mounting kits
- Supports 2 x Intel GbE and 1 x GPIO
- Built-in 1 x full size MiniPCIe
- Lockable DC jack design
- Supports iManager, SUSIAccess and Embedded Software APIs
- Support Intel Turbo Boost Technology 2.0 in Core i5 4300U
Spécifications techniques
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Memory | |
| Maximum Memory Supported | 8 GB |
| Memory Technology | DDR3L SDRAM |
| Total Number of Memory Slots | 1 |
| Display & Graphics | |
| Graphics Controller Manufacturer | Intel |
| Graphics Controller Model | HD Graphics 4400 |
| Graphics Memory Technology | DDR3L SDRAM |
| Graphics Memory Accessibility | Shared |
| Physical Characteristics | |
| Form Factor | Box PC |
| Height | 1.83" (46.60 mm) |
| Width | 8.78" (223 mm) |
| Depth | 5.24" (133 mm) |
| Interfaces/Ports | |
| HDMI | Yes |
| VGA | Yes |
| Total Number of USB Ports | 4 |
| Number of USB 2.0 Ports (Front) | 2 |
| Number of USB 3.0 Ports (Front) | 2 |
| Processor | |
| Processor Speed | 1.90 GHz |
| Processor Type | Core i5 |
| Processor Model | i5-4300U |
| Processor Manufacturer | Intel |
| Processor Generation | 4th Gen |
| General Information | |
| Product Type | Desktop Computer |
| Manufacturer Part Number | ARK-1550-S9A1E |
| Manufacturer Website Address | http://www.advantech.com |
| Packaged Quantity | 1 |
| Manufacturer | Advantech Co., Ltd |
| Product Model | ARK-1550 |
| Product Name | ARK-1550 Desktop Computer |
| Product Series | ARK-1000 |
| Brand Name | Advantech |
