À propos du produit

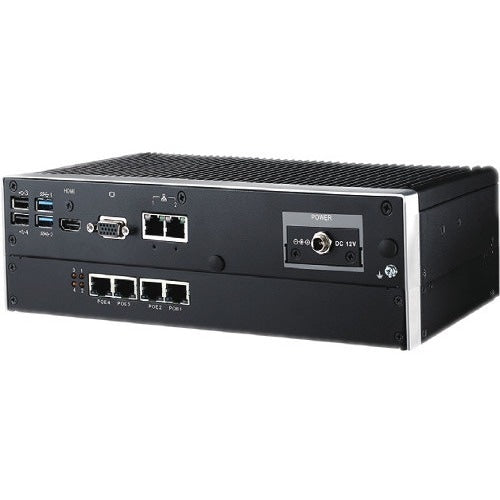

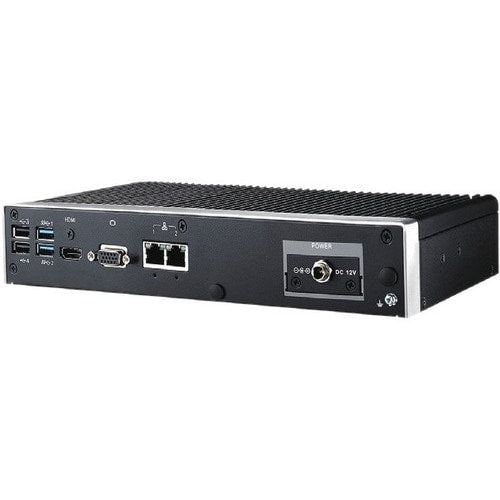

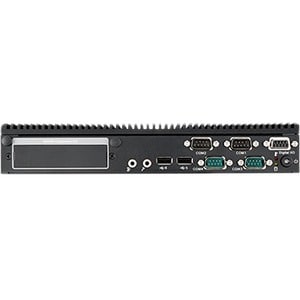

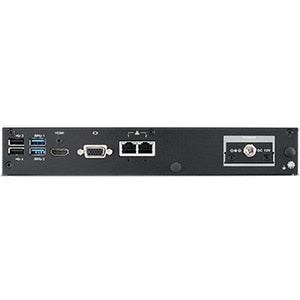

ARK-2000 series : Easy I/O Flexibility Fanless Embedded Computers
ARK-2000 series is an industrial modular embedded computer with rich I/O, intelligent edge computing, high flexibility and easy PCIe expansion capabilities, featuring wide-input power ranges, wide temperature ranges and structural strengthening, which is a perfect match with IoT platforms and scalable gateways.
- Intel® Atom® E3940 Quad Core SoC
- Dual independent displays with one 4K HDMI and one VGA
- 12V lockable DC jack power input
- 9-36V power module compatible with all-in-one ordering
- -20 ~ 60 °C extend operating temperature
- Mini PCIe expansion with SIM holder for communication module
- M.2 NGFF 2230 E Key for WiFi communication module
- mSATA and 1 x 2.5" SATA storage device
- Advantech iDoor module compatible
- Advantech EMIO miniPCIe module compatible with all-in-one ordering
Spécifications techniques
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| LAN Model | i210-IT |
| Memory | |
| Maximum Memory Supported | 8 GB |
| Memory Technology | DDR3L SDRAM |
| Total Number of Memory Slots | 1 |
| Display & Graphics | |
| Graphics Controller Manufacturer | Intel |
| Graphics Controller Model | HD Graphics 500 |
| Graphics Memory Technology | DDR3L SDRAM |
| Graphics Memory Accessibility | Shared |
| Interfaces/Ports | |
| HDMI | Yes |
| VGA | Yes |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 4 |
| Number of USB 3.0 Ports | 2 |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| China Restriction of Hazardous Substances (China RoHS) | |
| Physical Characteristics | |
| Weight (Approximate) | 4.19 lb (1900 g) |
| Form Factor | Box PC |
| Height | 1.73" (44 mm) |
| Width | 10.24" (260 mm) |
| Depth | 5.52" (140.20 mm) |
| Processor | |
| Processor Speed | 1.60 GHz |
| Processor Type | Atom |
| Processor Model | x5-E3940 |
| Processor Core | Quad-core (4 Core) |
| Processor Manufacturer | Intel |
| Maximum Turbo Speed | 1.80 GHz |
| General Information | |
| Product Type | Desktop Computer |
| Manufacturer Part Number | ARK-2232L-S6A1 |
| Manufacturer Website Address | http://www.advantech.com |
| Packaged Quantity | 1 |
| Manufacturer | Advantech Co., Ltd |
| Product Model | ARK-2232L |
| Product Name | ARK-2232L Desktop Computer |
| Product Series | ARK-2000 |
| Brand Name | Advantech |
